Comelit addressed module 1 supervised output 41IOM000
COE 41IOM000
8023903288193
Comelit addressed module, 1 supervised output, with integrated on-board isolator, with the following features:
- Supply voltage 15÷32VDC
- Stand-by consumption 0.27mA
- Rated absorption 270uA@27VDC
- Absorption with 1 LED on 3.6 mA
- Maximum output current(s) 0.75A@28VDC/0.5A@120VAC
- No. relay output(s) or No. monitored output(s) 1
- Degree of protection IP21
- Isolator Yes
- Standards EN EN54-17, EN54-18
- Dimensions: Height 80mm - Width 142mm - Depth 45mm
- Type ABS cover materials
- Product color White, transparent cover
- Weight: 230 grams
- Operating temperature: -10/+60°C
- Cable cross section for terminals (mm) 0.4 ÷ 2.5mm
€70.18
Items Available: 13
: 2

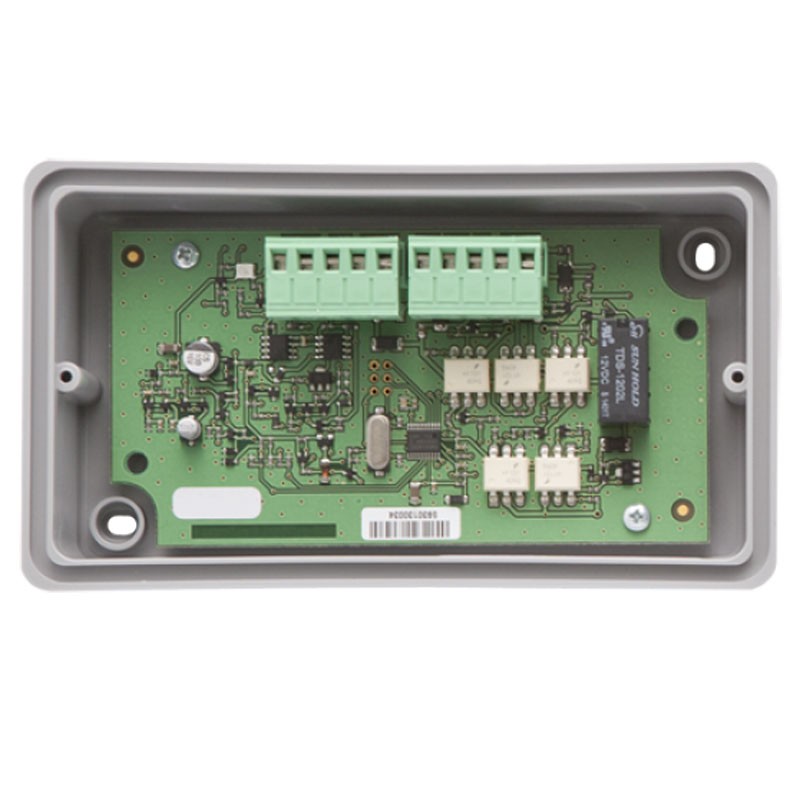

Address module 41IOM000, with built-in on-board isolator, controls a voltage output for controlling optical acoustic devices, electromagnetic stops, etc., with separate power supply. Terminals for 24V utilities and out 24V max. 750mA separate. It is loop-powered and controlled by the control panel by means of the communication protocol. The module is supplied in a plastic case suitable for wall mounting equipped with a transparent cover for easy visual inspection. Certified according to EN54-17 and EN 54-18.
There are no reviews
Data sheet
- Type: Indexed Modules
