Notifier Dual Loop Module for INSPIRE E10/E15 Control unit HOP-433-100

Notifier
Notifier
NOT HOP-433-100

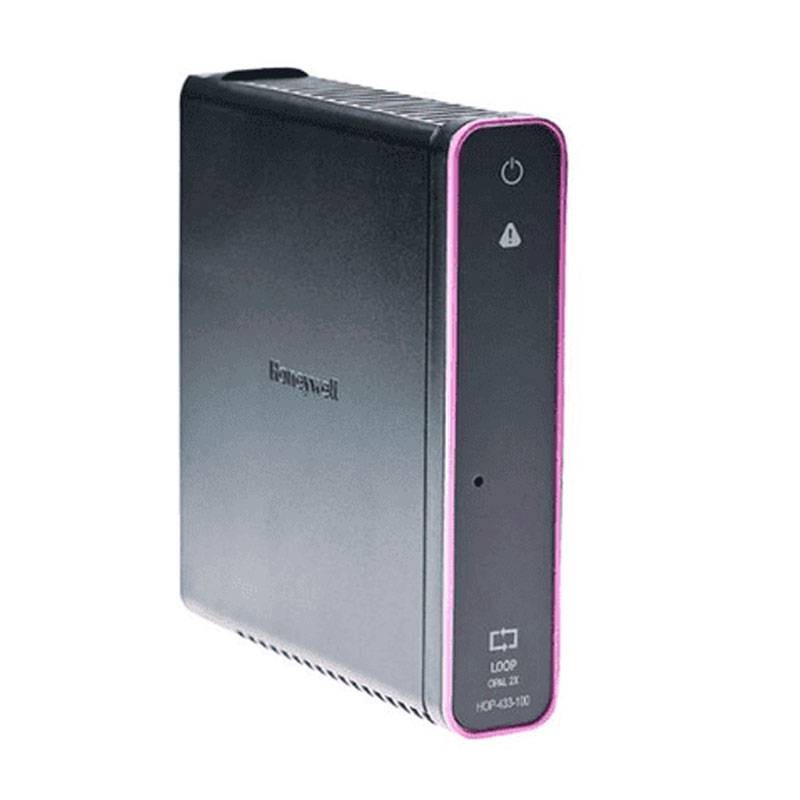

Notifier Dual Loop Module is an advanced component designed for use with the Opal range of detectors. This module allows you to expand the capacity of your fire detection system, supporting two communication loops and up to 159 detectors per loop. It is ideal for large configurations or installations requiring a large number of detection devices, with the following features:

  • Dual loop support: Allows the integration of two detection loops, expanding system capacity

  • Up to159 detectors per loop: Can handle up to 159 smart Opal detectors per loop, for increased coverage

  • Flexibility and scalability: Supports up to 159 additional modules (A/V modules, MCP, input/output) per loop

  • Detection zone address: 64 fire detection zones with zone indication directly on the screen

  • Extended Capacity: Supports up to 512 detectors and manual call points, in accordance with EN54-2

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Notifier Dual Loop Module for INSPIRE E10/E15 Control unit HOP-433-100
€254.07
€246.44
€246.44

Lowest price in 30 days:
€254.07
Save 3%
€246.44
Tax included
Calculate shipping cost
Offer expires in
Items Available: 2
Further availability of the manufacturer
€246.44

Buy it within and receive it from Monday, 5 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Dual Loop Module Notifier fire detection system

The Notifier Dual Loop Module is designed to offer increased capacity and versatility in fire alarm systems. With the ability to handle two separate loops, it is ideal for applications where a large area needs to be covered or for environments with complex detection requirements. Its ability to integrate up to 159 detectors per loop allows the system to be customized to the specific needs of each environment.

Flexibility in system configuration

The module offers exceptional flexibility, allowing the integration of a wide range of devices, including audio/video modules, manual call buttons (MCPs) and input/output devices. This makes it particularly suitable for large fire systems or applications where a large number of detection points are required. The ability to configure up to 64 detection zones provides clear visibility of critical areas and improves system accuracy.

EN54-2 standard for enhanced safety

The module complies with EN54-2, which establishes design and performance requirements for fire detection devices. This compliance ensures that the module meets international quality and safety standards, ensuring safe and effective operation in any type of environment.

Technical Specifications Expansion Module with 2 Loops

Number of Loops and Capacity

Number of Loops 2 loops
Maximum number of detectors per loop 159 intelligent Opal detectors
Maximum number of modules per loop 159 modules (A/V, MCP, input/output)
Maximum number of detection zones 64 fire detection zones
Maximum number of detectors/manual call points 512 (according to EN54-2)

There are no reviews

Data sheet

Type:
Indexed Modules
