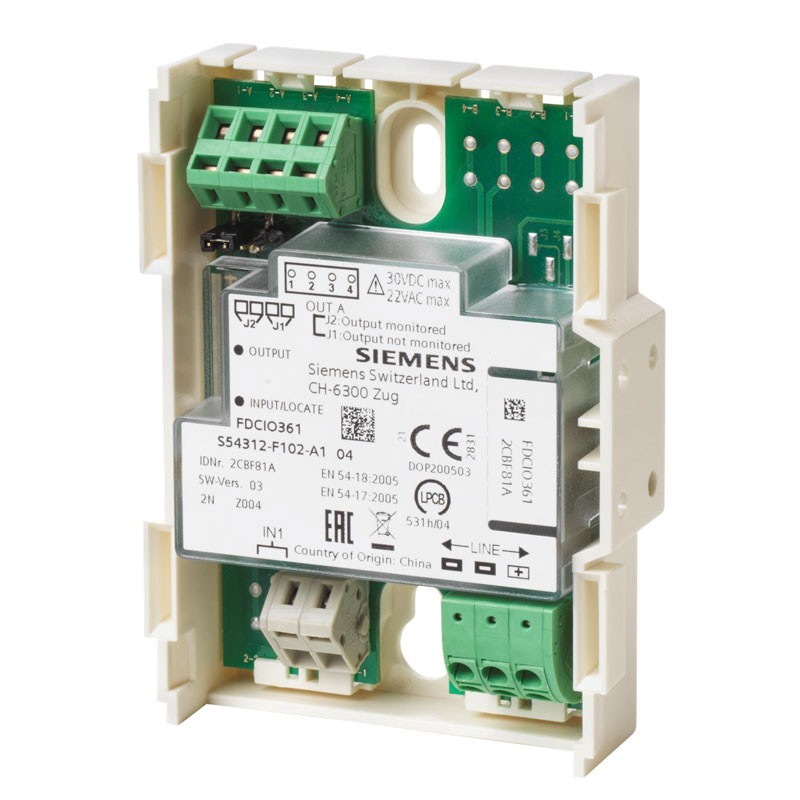

Siemens Cerberus FIT FDCIO361 In-out Module
SIE S54312-F102-A1
4047625015466
Siemens Cerberus FIT series module with a monitorable contact input for signalling technical statuses or alarm activation and a control output with potential-free relay contact for controlling alarm devices, fans, air conditioners, lift controllers etc.
Output configurable via jumper: not monitored: a potential-free relay contact (AC 22 V, 2 A or DC 30 V, 2 A) or monitored: a relay contact (DC 30 V, 2 A). Reference standards: EN 54-17, EN 54-18.
€48.31
Items Available: 9
: 2
Features:
- Standard EN 54-17 , EN 54-18
- Operating temperature -2570 °C
- Protection category IP30; IP65 with ext. housing
- Relative humidity ?95 % rel.
- Power supply DC 1233 V
- Storage temperature -30...+75 °C
- Cable capacity 0.2...2.5 mm2
- System compatibility C-NET -> FC360
- Communication protocol C-NET
- Quiescent current Max. 0.4 mA
- Relay output (zero voltage) AC 22 V, 2 A, max. 44 VA DC 30 V, 2 A, max. 60 W
- Dimensions (W x H x D) 95 x 71 x 23 mm
- Colour Pure white, RAL 9010
- Accessories TS35_122 U-rail , TS35_288 U-rail , FDCH221 Housing IP65.
There are no reviews
Data sheet
- Type: Indexed Modules
