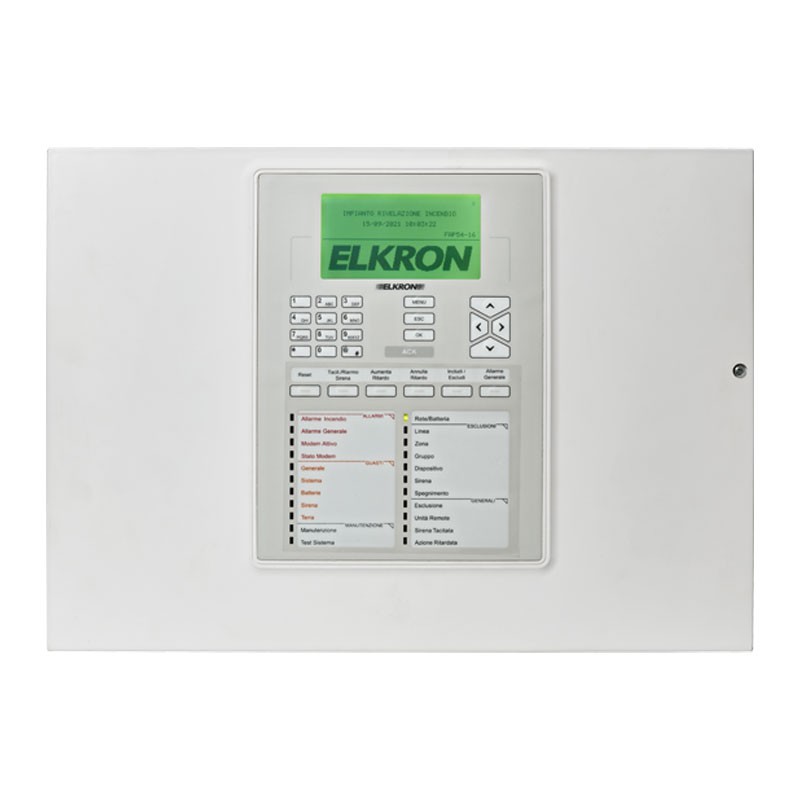

Elkron fire alarm control panel FAP544 EVO 2/4 loop 80SC4A00121

Elkron
Elkron
EKO 80SC4A00121 8034034447380

Elkron FAP544 EVO 2-line loop microprocessor burglar alarm control panel expandable to 4:



  • Ability to manage up to 128 points per loop (512 points max.)
  • Self-learning of field devices Color backlit display
  • New icon and menu graphics
  • History log: 1,000 events
  • Chronological history viewable directly from display
  • 10 passwords programmable on 3 levels
  • 480 programmable zones
  • Monitoring of detector sensitivity index and dirt percentage
Do you have questions about this product or did you not find what you were looking for? Ask us!
Elkron fire alarm control panel FAP544 EVO 2/4 loop 80SC4A00121
€1,098.00
€1,098.00

€1,098.00
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€1,098.00

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Basic configuration: 2 loop lines (class A) or 4 open lines (class B)
  • Maximum configuration: 4 loop lines (class A) or 8 open lines (class B)
  • Ability to handle up to 128 points per loop
  • Point self-learning and logical point address
  • Backlit color display
  • New icon and menu graphics
  • History log: 1,000 events
  • Chronological history viewable directly from display
  • 10 passwords programmable on 3 levels
  • 480 programmable zones
  • USB port for local PC connection to carry out programming via software
  • Ability to monitor detector sensitivity index and dirt percentage
  • Built-in real time clock with battery backup
  • Non-volatile memory
  • Alarm data storage in devices
  • Monitoring of the first 10 devices that go into alarm with both graphical and numerical display of time trends
  • Metering of history and maintenance operations with menu 11224
  • Central unit outputs: 4 [siren relay, alarm relay, fault relay, programmable relay (power failure/exclusion)]
  • Internal buzzer
  • Single point/zone/line exclusion
  • Power supply: 230 Vac
  • Maximum deliverable current: 1.5Ah 24V
  • Limitation of battery charge and control of battery status
  • Accumulator housing: 2 12V 12Ah batteries
  • Possibility of making loops max 2 km with 2x1.5 mm² shielded cable
  • Noise immunity up to 10 Vm
  • Common dialogue protocol for all system control panels
  • Dimensions (W x H x D): 490 x 350 x 145 mm
  • EN54 part 2 and part 4 certificate, no. 0051-CPR-0239
