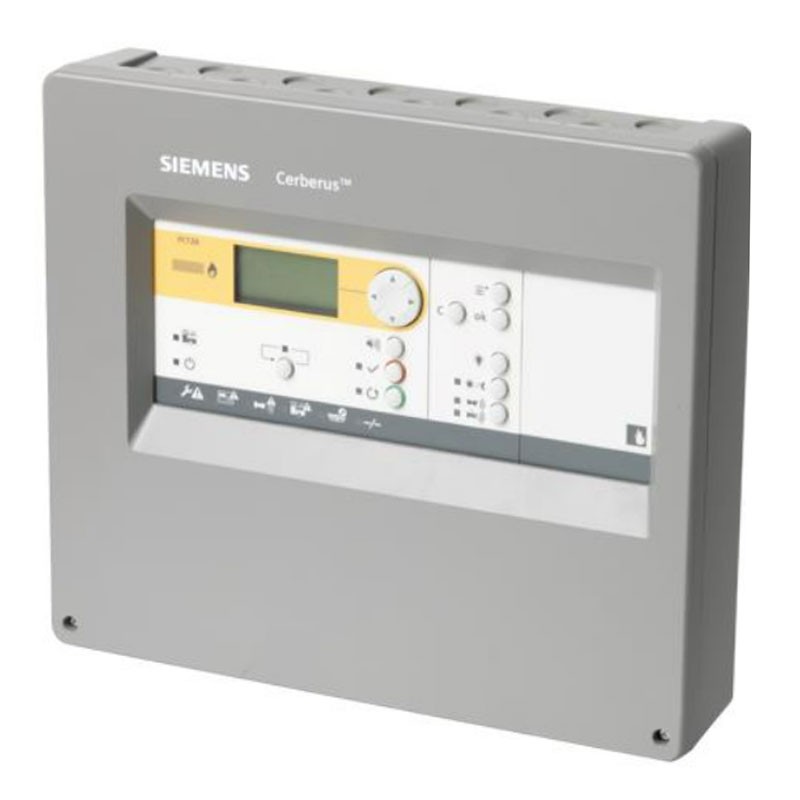

Siemens conventional control unit 4 fire zones S54400C130A1
Siemens FC122-ZA 4-zone conventional fire control panel with the following features:
- Line voltage: AC 196...253V
- Power supply: 25 watts
- Operating voltage: DC 21...28.6V
- Operating current: 0.9 amps
- Battery: 2x 12V, up to 7 Ah
- Battery monitoring: yes
- Network monitoring: yes
- Connectable detector series: Cerberus PRO 110-series / DS11/ SynoLINE300 & SynoLINE600
- Number of lines: 4
- Number of detectors per line: 32
Siemens conventional control unit 4 fire zones S54400C130A1
Tax included
The FC122-ZA is a conventional control panel with an integrated operating unit for 4 zones. The control unit is designed to be very easy to operate, offering exceptional flexibility with a comprehensive list of features.
The FC122-ZA is ideal for small applications, e.g., in schools, stores, hotels.
Extensions and accessories must be ordered separately.
Other technical features:
- Integrated inputs/outputs - supervised outputs: Alarm 1x 24 V / 0.5 A - Siren 1x 24 V / 0.5 A
- Potential-free contact: Alarm 30 V / 1A - Freely programmable inputs 2
- Slots for relay cards: 1
- Emergency power supply operation: Up to 72 Ah
- Operating temperature: -5/+40 °C
- Storage temperature: -20/+60°C
- Humidity (condensation not allowed): ≤95 % rel.
- Dimensions (W x H x D): 360 x 310 x 85 mm
- Color: enclosure and cover: gray, RAL Design 000 50 00
- Protection category (IEC 60529): IP30
A conventional fire alarmcontrol panel has several alarm zones, each of which has a maximum capacity of 32 devices, including detectors and pushbuttons (according to the standard), whereas an analog fire alarm control panel has capabilities to handle a larger number of devices and to realize a much more complex configuration that allows it to adapt to all types of installations and locations.
Data sheet
- Type:
- Control units
- Zone:
- 4
