Notifier Conventional Fire Panel VSN4-LT 4-Zone
NOT VSN4-LT
9000005351085
Notifier 4-zone conventional fire control panel with the following features:
- Voltage: 27VDC ± 7%
- 2 250mA siren outputs
- A maximum of 25 conventional detectors/buttons can be connected to each zone
- Designed for installation of small fire detection systems
- Dimensions: 315mm(H) x 380mm(W) x 100mm(D)
- Weight: about 3kg (without batteries)
- Operating temperature -5°C/+45°C (recommended +5°C/+35°C)
- Humidity: 5 ÷ 95% (without condensation)
- Degree of protection: IP30
- Certified in accordance with EN 54-2 and EN 54-4

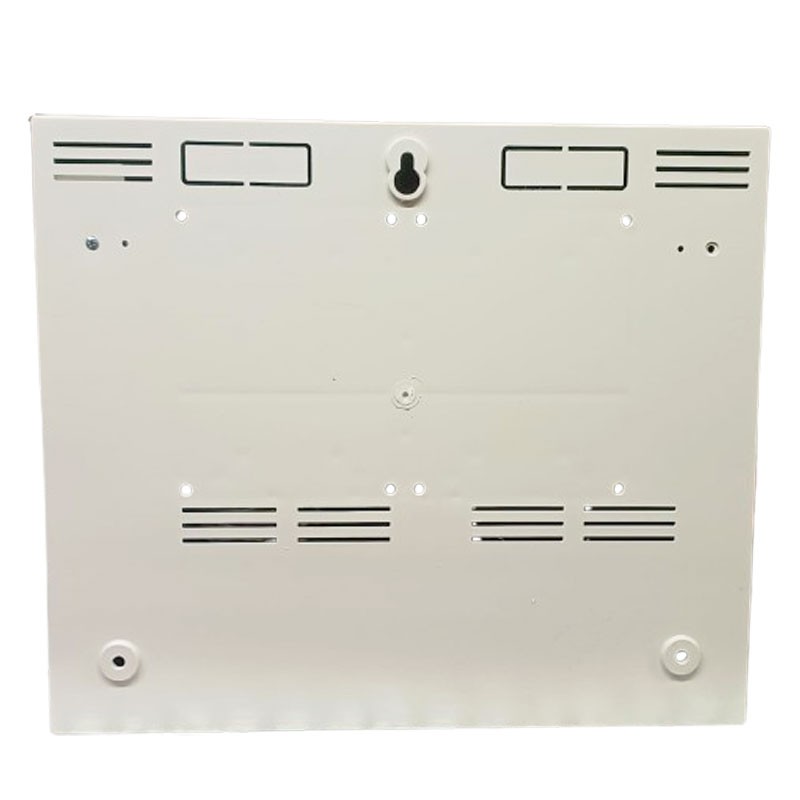

- Material: Painted steel housing
- Batteries 2x12V 7Ah not included
Notifier Conventional Fire Panel VSN4-LT 4-Zone
€279.66
€279.66
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Notifier's new 4-Zone Conventional Control Panel, was conceived and designed for the installation d Italy small and medium-sized fire detection systems in those places where it is necessary to interface with a user-friendly, high-performance control panel. The control panel is accessible and configurable by entering a password. The VSN control panel has 4 levels of detection that allows it to recognize whether an alarm is coming from a sensor, from a button, or whether it has been generated by an open or short circuit. Each Zone can be configured as a normal fire detection zone or as a delayed or comparison contact (the system resets the first alarm coming from the zone if a second alarm does not occur within 10 minutes).
The VSN control panel allows different delay times to be set for siren activation depending on the source of the alarm (buttons or sensors). LEDs on the control panel provide complete control of the system, and the keypad allows for quick and easy operation. The control unit provides a default configuration that can be adapted to any type of system quickly and easily.
Advantages:
- Microprocessor system
- Alarm identification by sensor or button
- Day/Night function with delays from 30 to 300 seconds
- Delays can be deactivated by keypad (optional)
- Alarm from one point or 2 zones in alarm
- 2 monitored siren outputs with zone activation
- Alarm and fault relays
- Auxiliary power output (non-resettable)
- Plug-in terminals, 1.5mm2 cable
- Metal enclosure and ABS plastic cover
- CPR certificate in accordance with EN54-2/4 standards
- Description of zones with removable label
(Zones with single zone configuration), the following features can be set for each zone:
- Short circuit alarm
- Alarm memory
- Manual/automatic alarm
- Coincidence with adjacent zones
Power supply:
- Power supply operating range: 230Vac ±15%, 50/60Hz, 65W (2.4A)
- Voltage: 27Vdc ± 7%
- Voltage Current: 1.6A (maximum load devices Current: external 2A: 24V-Aux, Zones and Sirens)
- Battery Charging: Voltage: 27.3V at 20°C (with temperature compensation)
- Current: 260mA
- Batteries 7Ah: 80% charge in 24H
There are no reviews
Data sheet
- Type:
- Control units
- Zone:
- 4
