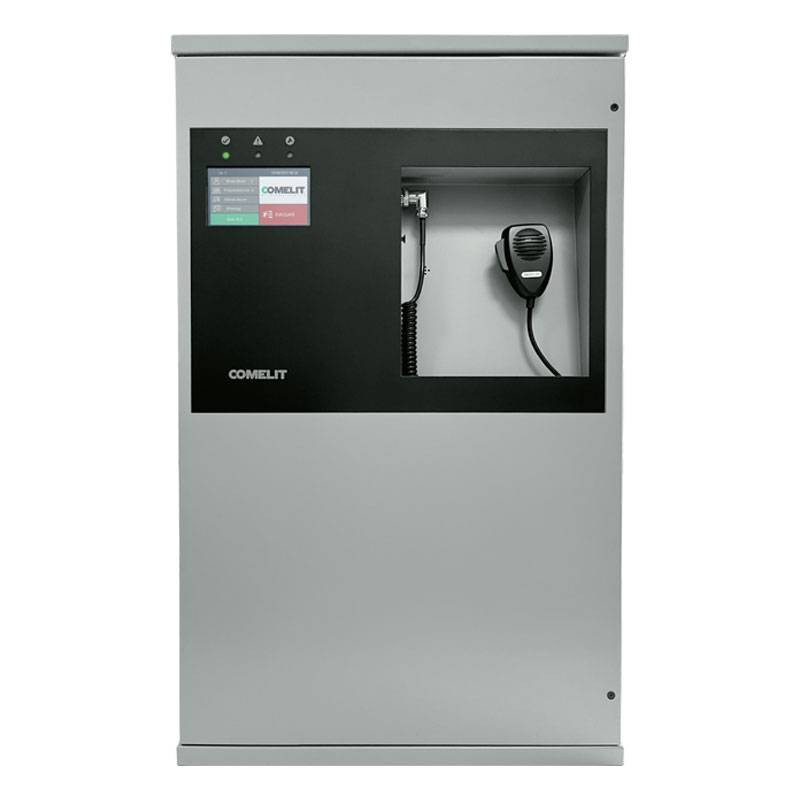

Comelit EVAC Compact Control Panel 2 Zones 250+250W 49CCO101
COE 49CCO101
8023903424966
The LogiVox Series 49CCO101 Compact EVAC Control Panel is an innovative solution for voice evacuation systems, designed to handle up to 2 voice alarm zones with a total power of 500W (250W per zone) on dual A/B lines. With EN54-16 and EN54-4 certifications, it is ideal for advanced security applications in public and commercial buildings:
-
2-zone management: Maximum power of 250W per zone on dual A/B line
-
Expandability: Connectable up to 6 link control panels or 6 LogiVox control panels plus 1 LogiFire Comelit addressed control panel
-
Touch screen interface: 4.3" display for easy and intuitive operation
-
Versatile audio playback: PTT microphone included, 2 AUX inputs, 1 balanced audio with priority contact
-
Smart management: "Smart volume" functions and automatic switching in case of amplifier failure
-
Installation flexibility: Metal bracket for wall or rack mounting (optional with item 49BRM100).
€3,266.65
Items Available: 3
Comelit 49CCO101 EVAC control panel power and reliability
The 49CCO101 can handle up to 500W of audio power, distributed over two zones of 250W each. Each zone is equipped with an A and B line, providing the redundancy needed for fire and emergency systems. Thanks to the "smart volume" function, the system maintains audio coverage even in the event of failure, reducing the volume by only 6dB.
Intuitive user interface
The control panel is equipped with a 4.3" touch screen display, which replicates the interface of LogiFire systems, enabling quick and intuitive operation. The included PTT handheld microphone enables real-time voice messaging, while built-in USB ports facilitate the playback of music or pre-recorded messages.
Flexible connectivity and configurations
With 8 supervised inputs and 3 configurable relay outputs, the control panel can handle evacuation, alert or publicity messages. Up to 17 microphone stations can be connected distributed over 3 BUS lines (emergency and service), with support for balanced audio connections and external sources via AUX inputs.
Ease of installation.
The Comelit 49CCO101 is designed for quick installation thanks to the metal clip-on bracket, ideal for both wall and rack mounting (with optional accessory). The compact and robust design ensures long life and minimal maintenance.
Features Comelit 49CCO101 EVAC control panel
| Feature | Detail |
|---|---|
| Model | EVAC control panel 2 Zone 250+250W, LOGIVOX series |
| Number of audio zones | 2 |
| Number of amplifiers | 2 |
| Backup amplifier | Yes |
| Automatic backup amplifier tripping | Yes, "Preserve Amp." |
| Speaker line for each zone A and B | Yes |
| RJ45 socket for LINK connection | Yes |
| Maximum number of control panels in LINK | 6 LogiVox or 6 LogiVox +1 LogiFire |
| Emergency front microphone input | Yes |
| No. BUS lines for connecting microphone stations | 3 (EMG BUS, SRV BUS, BUSP) |
| Connection of stations with RJ45 | Yes |
| No. stations that can be connected to the EMG BUS | 2 |
| No. stations connectable to the SRV BUS | 7 |
| No. stations connectable to the BUSP | 8 |
| No. AUX inputs for audio sources | 2 |
| No. USB ports | 2 |
| Balanced analog inputs (PABX) | Yes |
Hardware Features
| Feature | Detail |
|---|---|
| Height | 710mm |
| Width | 430 mm |
| Depth | 280 mm |
| Installation | Wall and Rack (optional 49BRM100) |
| IP rating | IP30 |
| Enclosure material | Metallic |
| Color | Gray, RAL 7045 |
| Weight without battery | 21.9 kg |
| Operating temperature range | 5 ÷ 40 °C |
| Display | 4.3" (480x272 pixels) |
Electrical Characteristics
| Feature | Detail |
|---|---|
| Power Supply Voltage | 230VAC (+/-10%), 50Hz |
| Total audio power | 500W |
| Single zone power | 250W |
| Programmable supervised inputs | 8 |
| Relay outputs | 3 configurable (Max. 30Vdc - 1A - NO/NC) |
Batteries
| Feature | Detail |
|---|---|
| Number of batteries | 2 |
| Battery type | 2x12V (33Ah to 42Ah) |
| Battery level check | Yes |
