The 41CPE118 series LOGIFIRE addressed fire control panel comes standard with 1 Loop, expandable to 4 through the use of 3 41ECL120 boards and, up to a maximum of 8 Loops with the addition of the metal cabinet (4 Loops 1 as standard) Art. 41CPE104. Up to 250 addressed devices (detectors, buttons, I/O modules, sirens, etc.) can be connected to each loop, which can be divided into a maximum of 200 total zones.

The control unit is equipped with dual microprocessor and 14A power supply with 12V output for accumulator and has 200 LEDs on the front panel for zone status repetition. General signaling of Fire Alarm, Pre-alarm, Fault, CPU Fault, Delayed Alarm, Exclusions, Test, Network Presence. Possibility of integration into supervision systems with Modbus TCP/IP protocol and compatibility with LOGIFIRE Redundancy Network via art. 41ECB000.

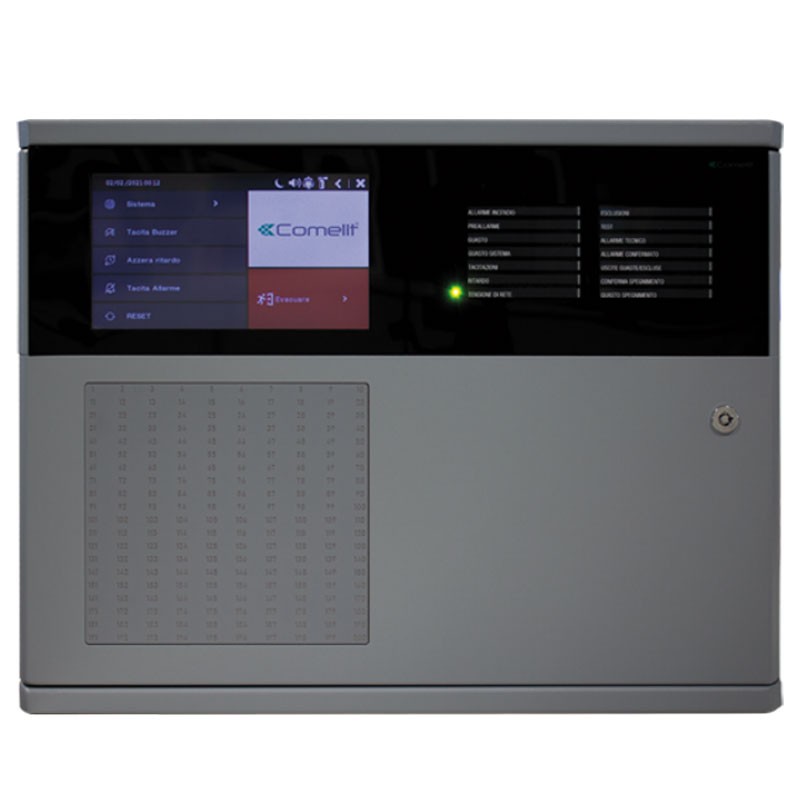

Direct connection with Comelit Voice Evacuation control panels via RS485, via protocol board integrated by default in the control panel configuration. The control panel is characterized by a sturdy gray metal container (430x330x150mm) of the same dimensions as all Comelit control panels and boxes LOGIFIRE series so as to ensure excellent modularity and side-by-side during assembly, reports on the front all the signals and commands in accordance with the requirements of the standard EN54-2 by means of LED light indications and, 7" color Resistive Touch Screen display. Certification according to EN 54-2, EN 54-4 and EN54-13.

MAIN FEATURES:

• Multilingual display menu Yes
• EVAC control panel interfacing module Yes, supplied
• Maximum number of connectable EVAC control panels (no.) 5
• Optional additional power supply Yes, Art. 41ALM172
• Optional thermal printer Yes, Art. 41PRN100
• Mounting in modular structures Yes
• Flush mounting Yes, Art. 48BIA100
• Operating Mode With/Without Presidium (Day/Night) Yes
• Remote panel management Yes
• Number of control panels that can be connected over Ethernet network 64 with built-in TCP/IP interface
• Programming with PC With programming software
• Local programming Menu-driven on color touchscreen display
• Sensor addressing with autoacquisition of loop disp. Yes
• Sensor addressing with electronic programmer 41SPG000 Yes
• Backward compatibility previous series Comelit addressed sensors Yes
• EN standards EN54-2, EN54-4





HARDWARE FEATURES:

• IP30 degree of protection
• Container Metallic
• Product color Gray, RAL 7045
• Display Resistive color touch screen 7" (159x88mm)
• Product weight without battery 7 kg
• Led for zone status indication 200
• Dimensions: Width 330mm - Height 430mm - Depth 150mm
• Redundant CPU Yes
• Programming ports Micro USB-B, LAN (RJ45)
• Ethernet network connection Yes
• Max number of control panels that can be connected on redundant RS485 network 64, with optional 41ECB000 module
• Access protection Via special mechanical key
• Inputs dedicated to interface with extinguishing systems (No.) 3
• Operating temperature: -5/+40°C
• Cable section for terminals (mm) 0.4 ÷ 2.5



ELECTRICAL CHARACTERISTICS:

• Main power supply 110÷230 VAC / 50÷60Hz
• Backup power supply (batteries not supplied) 1 x 12VDC - 18Ah
• Auxiliary device power supply output 1 (24VDC/0.3A)
• Max. current for Loop board 700mA
• Relay outputs with free contact (NO/NC) programmable 4 (30V@10A)
• Monitored outputs for sirens 1 (24VDC @ 1A)
• Monitored outputs 3 (Alarm transmission, Extinction, Fault) 100mA @ 24VDC each
