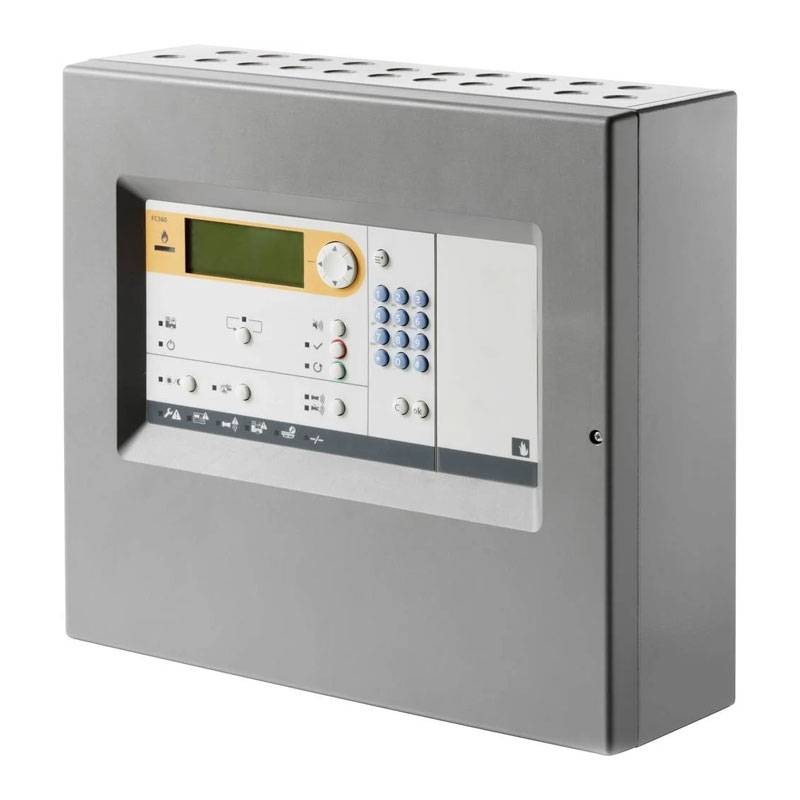

Siemens Fire Detection Panel FC361-ZZ 1 Loop S54433-C112-A1

Siemens
Siemens
SIE S54433-C112-A1 4047625016142

Siemens FC361-ZZ 1 Loop fire detection control panel supporting up to 126 Cerberus PRO devices with the following features:

  • Two audible signal lines and three programmable relay outputs

  • Emergency power supply for up to 72 hours and battery support (2x 12V, 12Ah)

  • Operating current: Max. 2,5 A

  • Degree of protection: IP30

  • Dimensions: 402x372x132 mm (WxHxD)

The FC361 fire detection panel is an advanced solution for addressable peripheral devices. Ideal for advanced security systems, it offers monitoring and control capabilities with customizable configuration options.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens Fire Detection Panel FC361-ZZ 1 Loop S54433-C112-A1
€539.85
€539.85

€539.85
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€539.85

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

FC361-ZZ Fire Detection Control Panel 1 Loop Advanced Features.

The FC361-xx control panel supports up to 126 devices on one loop, including automatic fire detectors, alarm devices, and I/O modules. In addition, it is compatible with the Cerberus peripheral portfolio and offers two collective acoustic signal lines for effective alarm management.

Configuration and Control via Integrated Web Server

The panel is equipped with the "FC360 Panel Configurator" software, accessible via Ethernet, which enables remote configuration and monitoring of the panel. With four freely programmable inputs/outputs and three configurable relay outputs, the FC361-xx provides the flexibility to meet specific security system needs.

Emergency Power Supply and Battery Monitoring

Designed to operate in emergency situations, the FC361-xx is equipped with a battery power system (up to 2x 12 V, 12 Ah) that provides up to 72 hours of battery life. The control panel constantly monitors battery and network status, ensuring continuous availability.

Expandability and Optional Components.

The control panel supports the addition of LED indicators for 32 sections, key switches (standard or Nordic) and EVAC modules. It is compatible with various accessories for optimal customization and adaptation to specific fire safety system needs.

Features:

  • Two collective acoustic signal lines

  • Three freely programmable relay outputs

  • Four freely programmable control inputs/outputs

  • Integrated web-server-based software 'FC360 Panel Configurator', access via Ethernet connection (port)

  • Space for installation of optional components: LED indicator (32 sections), Key switch (standard) or key switch (Nordic), EVAC module (NL)

  • Emergency power supply for up to 72 hours of emergency operation time

  • Battery: Max. 2x 12 V, 12 Ah

  • Without integrated LED indicator for 32 sections

  • Color: Gray

  • Outputs for buzzer: 2

  • Relay outputs for fire control and transmission paths for alarm and fault: 3

  • Freely configurable inputs/outputs: 4

  • RJ45 Ethernet port Max. 1

  • LED indication Max. 1

  • Key switch (standard) Max. 1

  • Key switch

  • Nordic: Max 1

  • Output board (4M) Max. 1

  • Power supply 70 W

  • Operating voltage DC 20.5...28.6 V

  • Operating current Max. 2,5 A

  • Battery capacity Max. 2x 12 V, 12 Ah

  • Battery connection time Up to 72 hours

  • Battery monitoring

  • Network supervision

  • Operating temperature: -5/+40 degrees

  • Storage temperature: -20/+60 degrees

  • Air humidity (condensation not allowed) 95 percent

There are no reviews

Data sheet

Type:
Fire alarm systems
Zone:
1
