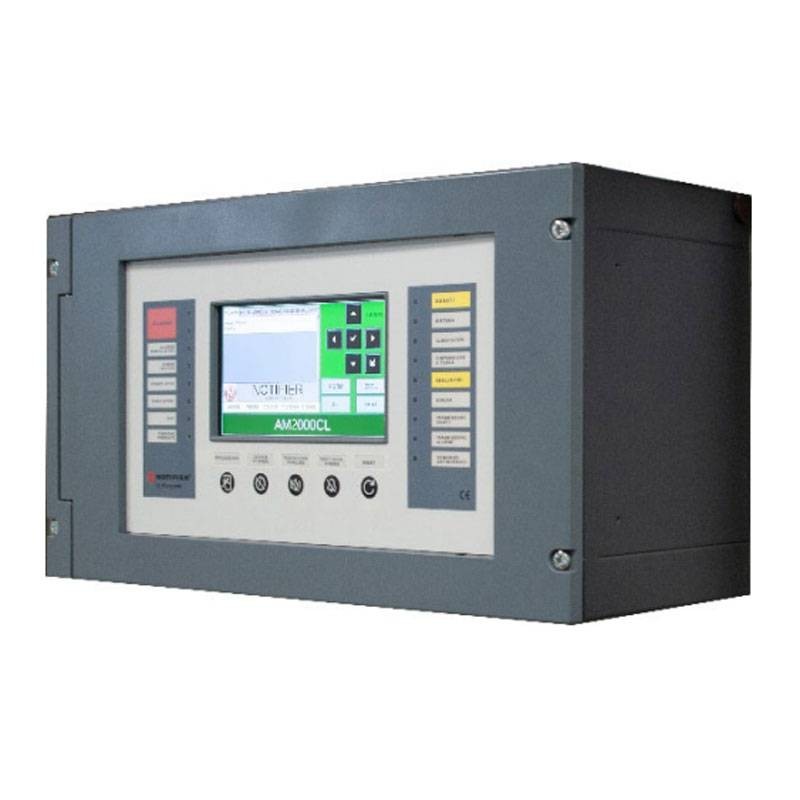

The AM2000CL control panel is a multi-microprocessor Fire Detection system suitable for plant configurations of a wide range of sizes. The system offers integrated fire detection solutions for many applications, including hotels, commercial offices and schools. The control panel has two loops that manage 99 detectors and 99 input/output modules. programming of the control panel is done via PC programming tool (PK-AMCL). The control panel is certified in accordance with the reference standards UNI EN 54-2, UNI EN 54-4, and system certification EN 54-13, guaranteeing a compliant solution as indicated by the Unified Code. This control panel is an advanced and reliable solution for managing fire protection systems in medium and large environments. Designed to ensure continuous monitoring and rapid response to alarms, this control panel is equipped with 2 Loops capable of supporting a large number of devices, such as detectors and control modules.




Strengths:

• 2 Expandable Loops: This control panel is equipped with two loops, each capable of supporting a large number of detection and alarm devices, for precise and widespread management of the fire alarm system.
• Advanced Analog Technology to ensure accurate and continuous monitoring, detecting even minute variations that could indicate potential danger.
• CLIP Protocol Compatibility: offers fast and secure communication between all connected devices, improving the effectiveness of detection and warning operations.
• Intuitive and Easy to Use Design: Designed to be intuitive, facilitating access to key features for system monitoring and control.
• Versatile Applications: It is perfect for installation in commercial buildings, industries, hotels, and other public spaces where reliable and continuous fire protection is needed.
• Expansion Features: It can be integrated with additional modules to provide even wider coverage and improved flexibility in complex environments
• Controlled siren output, relay outputs for general alarm and fault
• Two serial outputs for connecting remote terminals and communication to Cloud (CLSS) with the addition of E-SIB protocols enable key
• One ETH communication port for connecting the WIN-FIRE supervision system
• 7" Touch color graphical display (800 x 480 with backlight) and 256 colors, programmable 32-character text per point and 32-character text per zone
• 150 geographical zones and 400 groups with logical operators (AND, OR, DEL, etc.)
• Database of 32000 events
• Auto line programming with double address recognition
• Signaling of maintenance needs for detectors
• Certified in accordance with EN 54-2 , EN 54-4 and System Certification EN 54-13
• 230Vac mains power supply
• Standard power supply 2.1A
• 24Vdc auxiliary current of 1A, with resettable and nonresettable output
• Charging of two 12Vdc 17Ah batteries
• Dimensions: 483mm x 266mm x 111mm



User Interface:

• The ergonomic color LCD Touch user interface is designed so that every operation is easy and intuitive. The control panel has a 7 (800 x 480 with backlight) TFT touch display and 256 colors for entering control panel programming data and interacting with operators. All functions are available with access to the 4 password levels as defined by EN 54-2 standards. By means of dedicated buttons on the touch screen, there is simplified access to the following functions: Evacuation, Delay Reset, Buzzer Silence, Siren Silence/Reset, Event Reset.




Detection Lines:

• The control panel has two detection lines based on Notifier's proven Loop technology for connecting devices with rotary-switch addressing being the hallmark of Notifier's analog addressed devices.



Zones:

• Serve as a basic indication to identify the location of an event, as outlined in EN 54-2. In the 2-line configuration, the central unit makes 150 Zones available. Up to 32 points can be associated with each zone.



Remote Displays:

• Up to 32 remote displays with color Touch model AM-LCD can be connected to each control panel via an opto-isolated RS.485 two-wire serial line. Up to 16 of these terminals can be configured to partially display the events of up to 64 zones (typically used as the floor or sector displays in Hotels and Hospitals) while 16 repeat all the events of the entire system.



Connectivity:

• A hardware key (E-SIB) enables communication to monitoring and supervisory systems, so you can manage your system from a local network location using Notifier supervisory systems or with Honeywell CLSS - Connected Live Safety Services, a cloud platform that monitors the fire detection system in all aspects; from maintenance to checking the status of each individual system component. Also by installing the E-SIB enabling key in each control panel, secure communication via Ethernet with WIN-FIRE Supervision software is possible



PK-AMCL:

• Configuration software tool with "office-like" interface and great ease of use, downloadable free of charge from the Notifier Italy website. Configuration of all control panel programming and transfer of programming with USB key without the need for cable connection to the control panel



Features:

• Input: 100÷240Vac +/- 15%, 1.9A 50÷60Hz
• Voltage: 27.6Vdc - 4A total.
• Battery Charging: 27.5Vdc 1.6A (with temperature compensation). Recommended batteries: 2 x 17-18 Ah
• Utility Output: 28Vdc (+3% +/ -18%) 3.5A, to power external loads such as: sirens, electromagnets, etc.
• Available current for each Line: 750 mA
• Operating temperature: -5 °C to +40 °C
• Storage temperature: -10 °C to +50 °C
• Degree of protection: IP30
• Dimensions: 483mm x 265mm x 217mm
• Weight: 7 kg.
