Notifier Analog Tester for Loop POL-200-TS
NOT POL-200-TS
Notifier Analog Tester for Loop is capable of recognizing all analog devices with Notifier CLIP/ADVANCED protocol. Due to its small size and ease of use, the POL-200-TS can be used in all kinds of situations and in all steps of both installation and maintenance, as it can be connected to the loop at any point:
- Verification and maintenance
- Simplified functions
- Historical archive
- Compatible with CLIP/ADV protocols from Notifier
- Checking and locating faults on the loop
- Color touch screen
- Internal memory and USB port for PC connection or device upgrade
- Power supply via 12V charger or internal battery
€1,011.72
Items Available: 5
Frequently bought together
Innovative interface:
- Using the POL-200-TS device is simple: graphical touch screen and icon-based menus allow easy and clear navigation. The device can also be used with guati, this feature also makes it safe from the perspective of work safety.
Loop Map:
- The Loop Map function allows the user to verify the correct wiring of devices on the line. The screen can be used to read the production date and additional information about detectors, input modules.
Testing and Maintenance:
- LOG function generates a file with the status and information of each device on the loop, allows accurate control of system operation through loop and device status report to anticipate and record equipment maintenance activities in critical situations.
POL-200-TS makes a map of the system to analyze the loop wiring. The downloaded files can be saved and downloaded easily via USB without the need for special software. This makes it possible to generate an always up-to-date snapshot of the plant and be facilitated during maintenance.

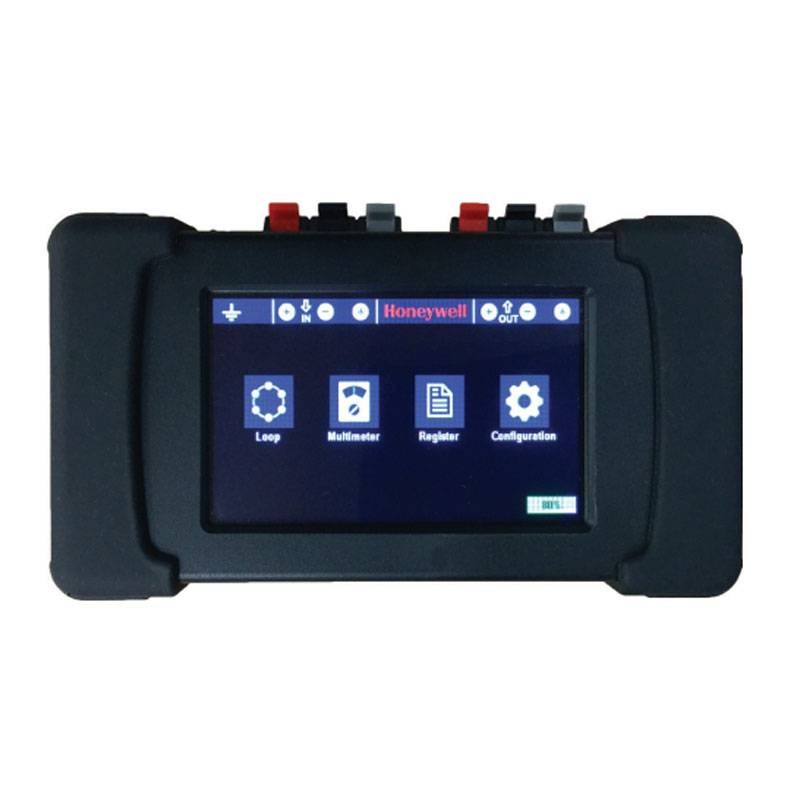

The touch screen is designed for simplicity with intuitive icons. The device performs functions automatically when they are selected. The POL-200-TS display clearly identifies the equipment type, location and device number on the loop.
The device screen and the Log file of the loop to which the POL-200-TS is connected include the serial number, sensor reading, and production date (month/year). The multimeter makes it possible to check device wiring or detect any loop connection problems, even with insulators connected.
Features:
- 230 V ac power supply with external power supply or batteries
- Autonomy Up to 6 hours on 100% charge
- Batteries 6 types AA, Ni-MH 1.2 V (2000 mA) rechargeable Energizer, Duracell or Panasonic
- 12 V 24 W (2000 mA) charger
- TFT display 4.3 (98 x 56 mm) Resistive 480 x 268 pixels
- USB ports type B
- Charging Temperature 0ºC to 40ºC
- Storage Temperature -20ºC to 30ºC
- Color Black (Box and protective cover)
- Weight 550 g (including batteries)
- Dimensions 97 mm (h) x 177 mm (w) x 44 mm (d) (with Protective Cover)
- Certifications CE, RoHS
Very good, fast shipping, good suporte. I needed an invoice, asked for it, and received it next day.
Data sheet
- Type: Loop Tester
