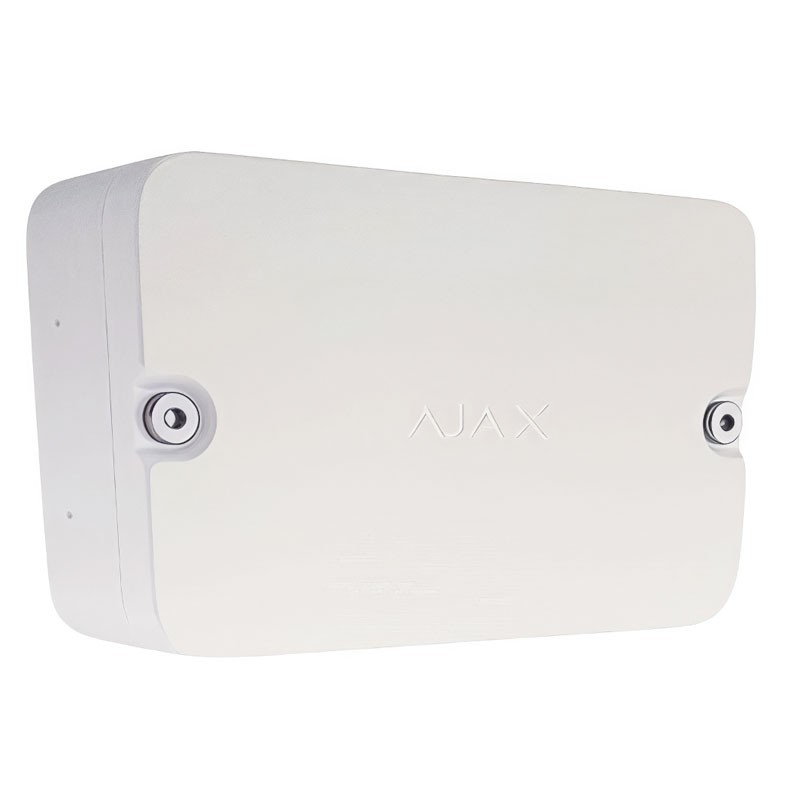

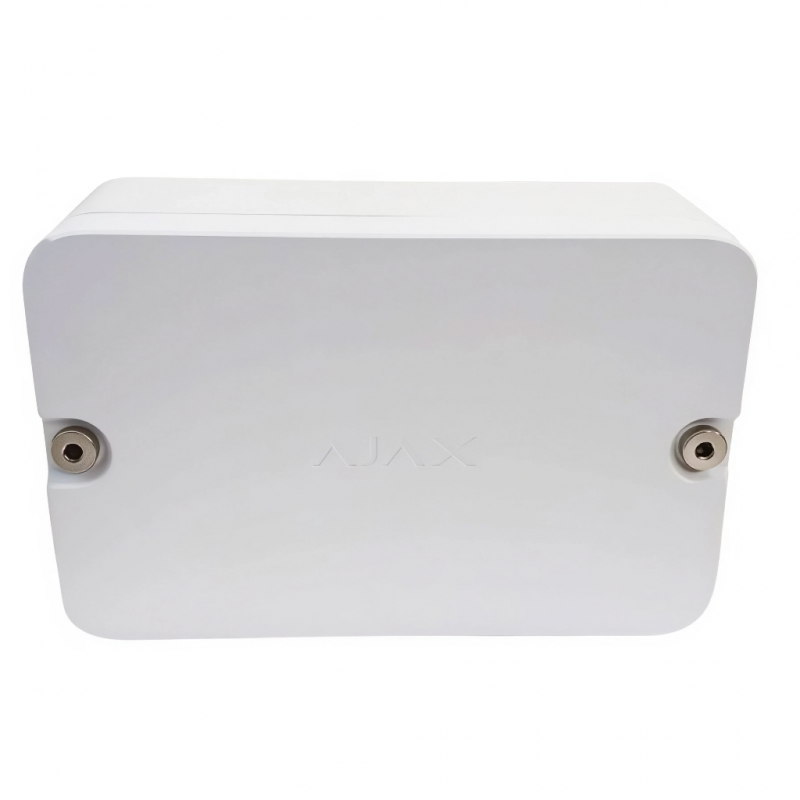

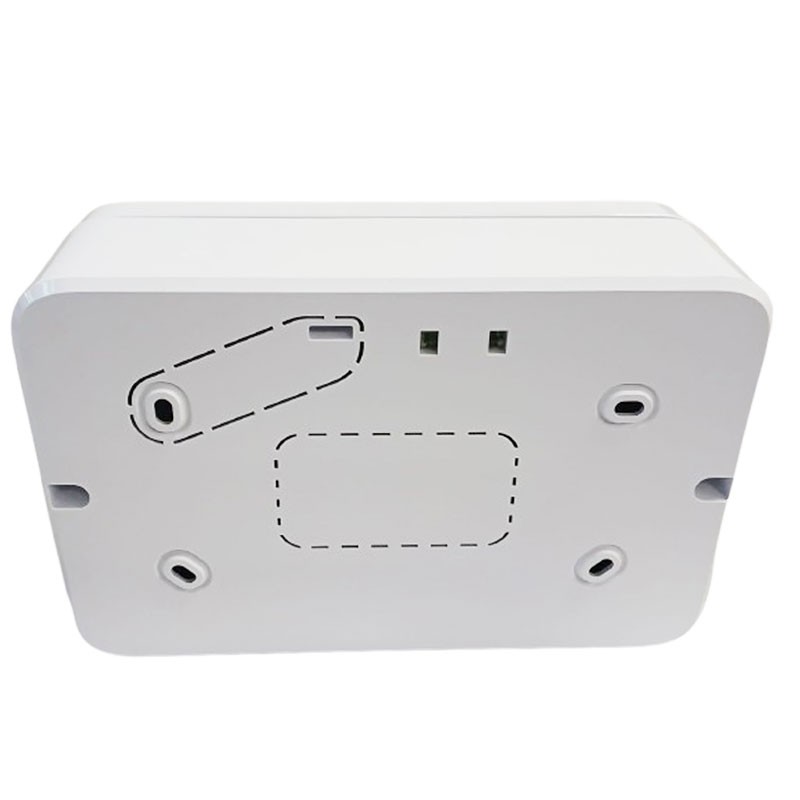

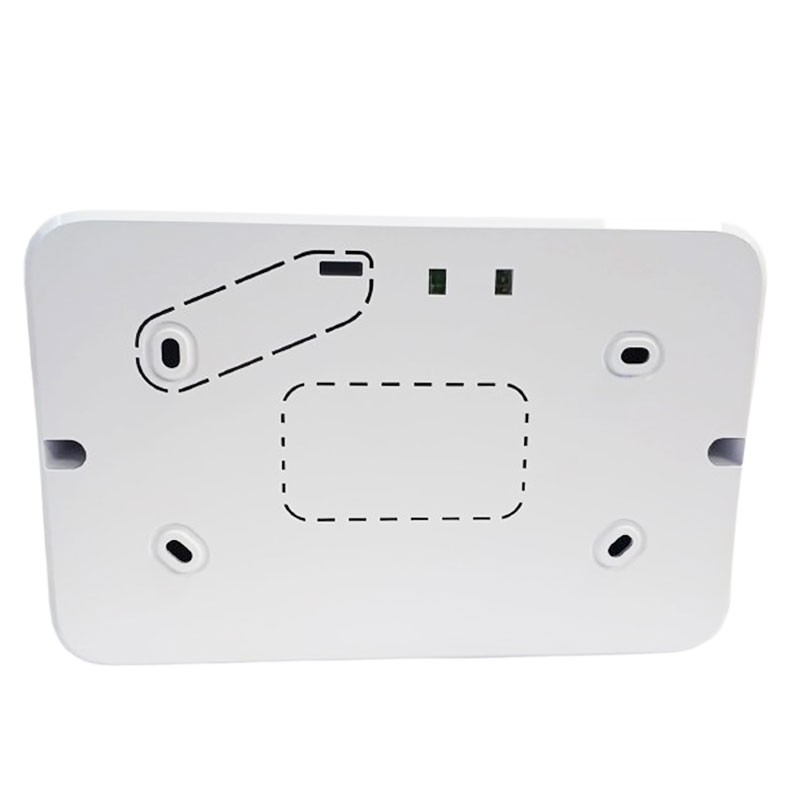

Wireless module with two inputs and two outputs Ajax I/O EN54 Jeweller
08T 124590
4823114070624
Ajax I/O Wireless Module EN54 Jeweller 2 Inputs / 2 Outputs:
-
Inputs for wired devices: 2 (Input 1 and Input 2)
-
Relay outputs for third-party devices: 2 (Output 1 and Output 2)
-
Input connections: NO, NC, EOL, 2EOL, 3EOL
-
EOL resistors included: 0.47 kΩ, 1.2 kΩ, 2.7 kΩ, 6.2 kΩ
-
Cable compatibility: 0.4-2.5 mm² (21-13 AWG), up to 100 m away
-
Power supply and load outputs: AC: 10-250 V~, 5 mA - 10 A / DC: 10-30 V⎓, 5 mA - 5 A
-
Certification: EN54 Jeweller
-
Fire panel compatibility: EN54 Fire Hub Jeweller - EN54 Fire ReX Jeweller
€176.80
Items Available: 4
Ajax EN54 I/O Module: Integrates and controls third-party wired devices
The Jeweller Ajax EN54 I/O Module is designed to integrate and control third-party wired devices within an EN54-certified security system, offering flexibility and advanced automation. With two inputs and two outputs, the module can handle both incoming signals from wired sensors and activate external devices such as locks, gates, emergency lighting or alarm systems.
The two inputs support NO, NC, EOL, 2EOL and 3EOL connections, ensuring compatibility with linear detectors, elevator control panels, HVAC systems and other third-party wired devices. Included EOL resistors simplify installation and configuration, enabling compliance with regulations and ensuring maximum system reliability.
Relay outputs allow control of both AC (10-250 V~, up to 10 A) and DC (10-30 V⎓, up to 5 A) resistive loads, making the module versatile for various automation and security applications. The supported cable cross-section ranges between 0.4 and 2.5 mm², allowing the use of standard cables in wired connections.
Integrated automation and safety
The module enables automation of immediate responses to alarms by integrating electrical and security devices with the EN54 Fire Hub Jeweller control panel, improving protection and reducing response time.
Advanced integration with third-party devices
From linear smoke detectors to HVAC systems or elevator control panels, the module allows wired devices to be added without compromising compatibility with the Ajax system.
Intuitive configuration and remote maintenance
Wireless connection via Jeweller technology ensures fast and reliable communication with the control panel. Installation and configuration is done directly through the Ajax app, while remote maintenance allows monitoring and management without complex intervention.
Ajax-level experience
The module combines reliability, safety, and ease of use, meeting EN54 standards and ensuring that fire protection and wired device management are integrated into one intuitive and secure ecosystem.
Automatic response at the first sign of danger
Integration of safety devices that improve emergency response and evacuation from the first moments of the fire alarm. EN54 I/O Module (2X2) Jeweller has two galvanically isolated outputs that support both AC and DC current, with a resistive load capacity of up to 10 A. This allows installers to connect a wide range of electrical devices, from electric locks and emergency lights to elevator control and voice alarm systems. The Ajax ecosystem uses automation scenarios to activate connected devices the moment an alarm is triggered, saving valuable seconds for safe evacuation.
Smart integration of third-party devices
Make any existing fire protection device part of the Ajax configuration or supplement the system with devices not included in the Ajax portfolio. Two inputs enable the EN54 I/O Module (2X2) Jeweller to receive signals from third-party detectors, door controllers, elevator control panels, and other wired devices. The module supports most common connection types, including 3EOL, which allows up to three separate signals to be received from a single connected device. Once integrated, third-party devices become an integral part of the Ajax ecosystem. You can configure device parameters and define their location so that you receive detailed notifications when they are triggered. Each input can be configured with specific event types-such as fire alarm, gas leak, malfunction, evacuation, emergency aid, or custom alarm-for clarity in emergency situations. All configuration is done in a few steps via Ajax app.
Efficient autonomy for years to come
Preinstalled batteries provide up to 5 years of autonomous operation. Battery status is always visible in real time in Ajax apps, avoiding unnecessary maintenance work. Maintenance companies also receive low battery notifications for timely replacements. Replacing batteries is a quick and easy process: the installer simply removes the front cover of the module.
- Up to 5 years of operation with preinstalled batteries
- Quick battery replacement
- Timely notifications of low battery in Ajax apps
Communication
| Feature | Value |
|---|---|
| Jeweller Technology | Proprietary wireless technology to transmit commands, alarms and events - Two-way communication - Advanced anti-sabotage protection - Block encryption with mobile key - Instant notifications - Remote control and configuration in Ajax apps |
| Operating frequencies | 866.0-866.5 MHz 868.0-868.6 MHz 868.7-869.2 MHz 905.0-926.5 MHz 915.85-926.5 MHz 921.0-922.0 MHz (Based on sales region) |
| Effective radiated power (ERP) | Up to 20 mW Automatic power control to reduce consumption and interference |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,700 m (in open field) Between device and CIE or repeater |
| Encrypted communication | Block encryption with moving key |
| Frequency hopping | Prevents interference and signal inhibition |
Inputs
| Feature | Value |
|---|---|
| Number of input lines | 2 |

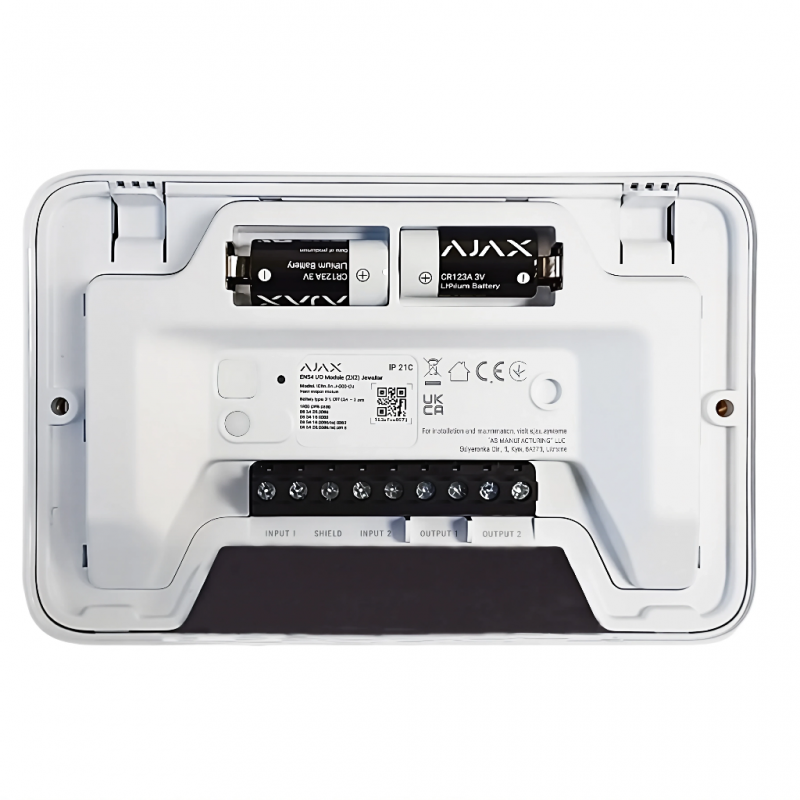

| Input terminals | - Input 1, Input 2: inputs for wired devices - Shield: common input for cable shields |
| Type of connection | NO, NC, EOL, 2EOL, 3EOL |
| EOL resistance | 0.47 kΩ, 1.2 kΩ, 2.7 kΩ, 6.2 kΩ (including 4 resistors for each input) |
| Maximum connection length | Up to 100 m (with 2×1.5 mm² / 16 AWG fire-resistant cable) |
| Supported cable cross-section | 0.4-2.5 mm² (21-13 AWG) |
Outputs
| Feature | Value |
|---|---|
| Number of output lines | 2 |
| Output terminals | Output 1, Output 2: relay outputs for third-party wired devices |
| Operating range (AC) | 10-250 V~ / 5 mA - 10 A (resistive load) |
| Operating range (DC) | 10-30 V⎓ / 5 mA - 5 A (resistive load) |
| Supported cable cross-section | 0.4-2.5 mm² (21-13 AWG) |
Main Features
| Feature | Value |
|---|---|
| Event Types. | Configurable via Ajax app by a PRO or administrator. Selected types determine: - Text of notifications - Event codes transmitted to CRA |
| Automatic security mode | In case of offline, unloaded or malfunctioning module, automatically activates connected devices |
Anti-sabotage protection
| Feature | Value |
|---|---|
| Tamper alarm | Notifications in case of attempts to remove the module or open the cover |
| Protection against counterfeiting | Device authentication |
| Detection of connection loss | After 36 seconds (configurable time via Jeweller protocol) |
| Input monitoring | Detects loss of wired connection, short circuits and malfunctions (with EOL, 2EOL or 3EOL connection) Depends on type of connection configured |
Power supply
| Feature | Value |
|---|---|
| Batteries | 2 × CR123A (preinstalled) |
| Estimated lifetime | Up to 5 years |
Case
| Feature | Value |
|---|---|
| Dimensions | 116 × 180 × 62 mm |
| Weight | 547 g |
| Operating temperatures | 0 °C to +50 °C |
| Maximum humidity | Up to 80% |
| Protection class | IP21C |
| Flammability rating | UL 94 V-0 |
Package contents
| Feature | Value |
|---|---|
| Contents | - EN54 I/O Module (2X2) Jeweller - 2 × CR123A batteries (preinstalled) - Installation kit - 2 × set of 4 EOL resistors - Quick Start Guide |
There are no reviews
Data sheet
- Colour: White
- Type: Expansion modules
- System: Wireless
- Installation: Internal
