Ajax FireProtect Heat EN54 Jeweller Heat Detector - Maximum Thermal Safety
-
Sensor type: 2 × thermistors for rapid detection and fixed threshold
-
Sensing modes: A1, A1R, A1S, B, BR, BS, C, CR, CS or fixed temperature
-
Power supply: 2 CR123A batteries preinstalled
-
Compatibility: central EN54 Fire Hub Jeweller
-
Color: white
-
Flexible installation: ability to choose the mode that best suits the environment
€129.58
Items Available: 25
Ajax FireProtect Heat detector, reliable and accurate fire protection
The Ajax FireProtect Heat EN54 Jeweller heat detector is designed to offer reliable and accurate fire protection, integrating seamlessly with the EN54 Fire Hub Jeweller control panel. Equipped with two high-sensitivity thermistors, the device detects both rapid temperature increases and the exceeding of predetermined heat thresholds.
This detector complies with EN 54-5 standards for Class A1, B and C heat detectors, and supports both incremental (R) and static (S) modes. The different detection modes-A1R, A1S, BR, BS, CS-can be easily configured via the Ajax app, allowing the device to be tailored to the specific needs of the installation environment.
The detector is ideal for both fires with an immediate flame and latent fires that cause a gradual buildup of heat. The alarm is triggered quickly, enabling timely intervention to protect people and property.
Accurate and rapid detection
With two built-in thermistors, the device recognizes both rapid temperature increases and predefined heat thresholds, ensuring maximum fire protection.
Customizable modes
Different thermal detection modes (A1R, A1S, BR, BS, CS or fixed temperature) can be selected via the Ajax app, for perfect adaptation to the type of environment.
Easy and immediate installation
Pre-installed CR123A batteries make the detector ready to use, without the need for additional tools or complex work.
Total compatibility
Works with the Ajax EN54 Fire Hub Jeweller control panel, integrating into existing fire systems, and contributes to comprehensive security management.
Communication
| Feature | Value |
|---|---|
| Jeweller technology | Proprietary wireless technology to transmit commands, alarms and events - Two-way communication - Advanced anti-sabotage protection - Block encryption with mobile key - Instant notifications - Remote control and configuration via Ajax app |
| Operating frequencies | 866.0-866.5 MHz 868.0-868.6 MHz 868.7-869.2 MHz 905.0-926.5 MHz 915.85-926.5 MHz 921.0-922.0 MHz (based on sales region) |
| Effective radiated power (ERP) | Up to 20 mW Automatic power control to reduce consumption and interference |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,700 m in open field Between the device and the CIE or a repeater |
| Encrypted communication | Block encryption with moving key for all saved and transmitted data |
| Frequency hopping | Avoids radio interference and signal inhibition |
Hazardous temperature detection
| Feature | Value |
|---|---|
| Sensor type | 2 × thermistors Complies with EN 54-5 for Class A1, B, C detectors (types R and S) |
| Heat sensor modes | A1, A1R, A1S B, BR, BS C, CR, CS |
| Fixed temperature | Configurable mode for best detection, depending on installation location. Selectable in device settings. |
Additional features
| Feature | Value |
|---|---|

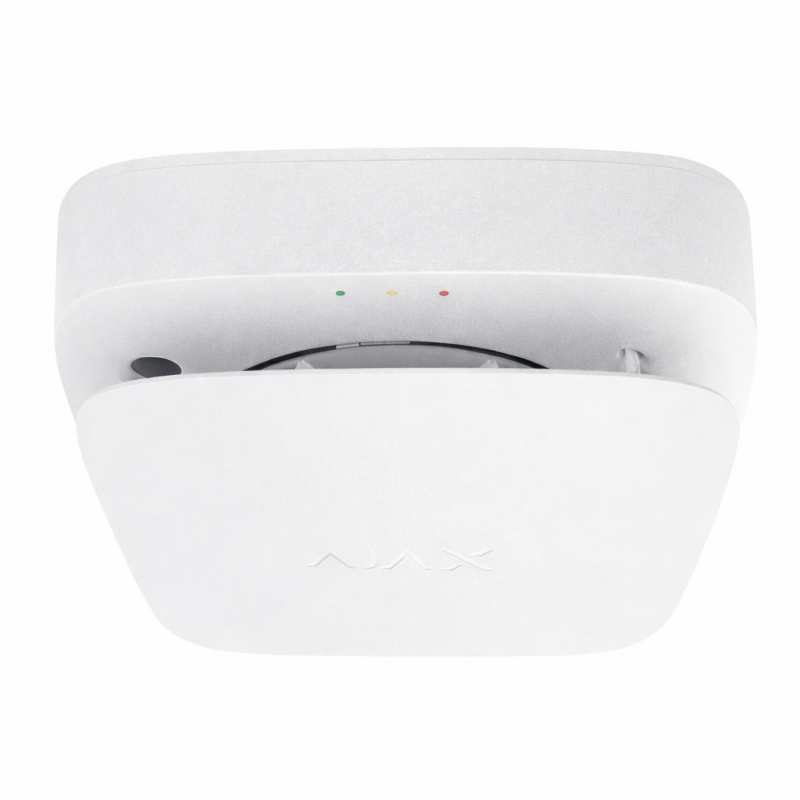

| LED Indication | - Red - Yellow - Green Indicates detector status: fire alarm, test, etc. |
Installation recommendations
| Feature | Value |
|---|---|
| Usage Environment | Designed for indoor use |

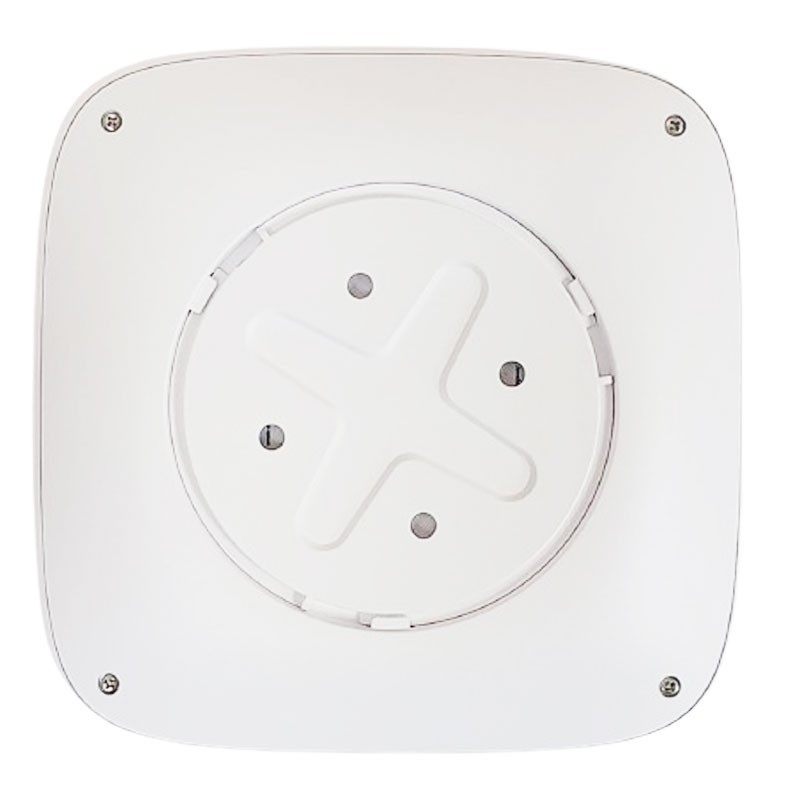

| Mounting panel | SmartBracket allows rotation up to 90° even after installation |
Anti-sabotage protection
| Feature | Value |
|---|---|
| Anti-sabotage tamper | Notification if an attempt is made to remove the device from the mounting panel |
| Lock for SmartBracket | Allows secure attachment of device Makes removal impossible without special tools |
| Protection against counterfeiting | Device authentication |
| Detection of loss of connection | After 36 seconds (depends on Jeweller settings) |
Power supply
| Feature | Value |
|---|---|
| Batteries | 2 × CR123A (preinstalled) |
| Battery replacement | No tools required: just open the battery compartment covers |
| Reverse polarity protection | Prevents damage if batteries are inserted incorrectly |
| Recommended battery type | Huiderui CR123A; 3 V; 1,600 mAh; LiMnO₂ |
| Estimated life span | Up to 6 years |
Case
| Feature | Value |
|---|---|
| Dimensions | 124 × 124 × 48 mm |
| Weight | 265 g |
| Operating temperatures | 0 °C to +50 °C |
| Maximum humidity | Up to 80% |
| Protection class | IP20 |
| Flammability rating | UL 94 V-0 |
Package contents
| Feature | Value |
|---|---|
| Contents | - EN54 FireProtect (Heat) Jeweller - SmartBracket mounting panel - 2 × CR123A batteries (preinstalled) - Installation kit - Quick Start Guide |
There are no reviews
Data sheet
- Colour: White
- Type: Rate-Of-Rise Heat Detectors
- System: Wireless
- Installation: Internal
