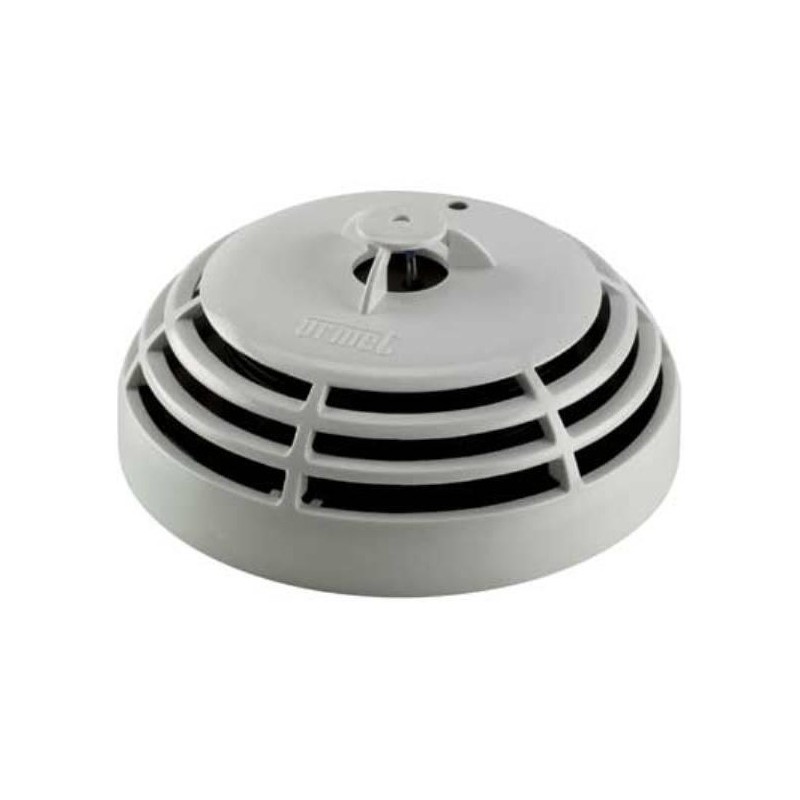

Urmet low profile thermovelocimetric detector
UTD 1043/402
8021156042203
Urmet thermovelocimetric low-profile detector.
€26.70
Items Available: 3
: 1
Velocimetric heat detectors monitor the temperature increase within the area in which they are installed. A microcontroller analyses and compares the signal it receives from a precision NTC-type temperature sensor, triggering an alarm if the temperature rise exceeds 5°C per minute.
Main features:
- Supply voltage: 20Vdc (voltage modulated from -15% to + 10%)
- Average absorption at rest: 40 µA@20Vdc
- Absorption in alarm: 23 mA@20Vdc
- Static alarm threshold: 58° C ± 5%
- 3-colour LED: red alarm - green normal operation - green flashing with yellow
- flashing sequence fault status
- Max. relative humidity: 93%
- Operating temperature: -10° ÷ 55°C
- Material: ABS V0
- Weight: 70 g
- Dimensions: ø 90 x 40 (H) mm
- Certified EN54 part 5 class A1R, certification number: 1293-CPD-0181
There are no reviews
Data sheet
- Type: Rate-Of-Rise Heat Detectors
