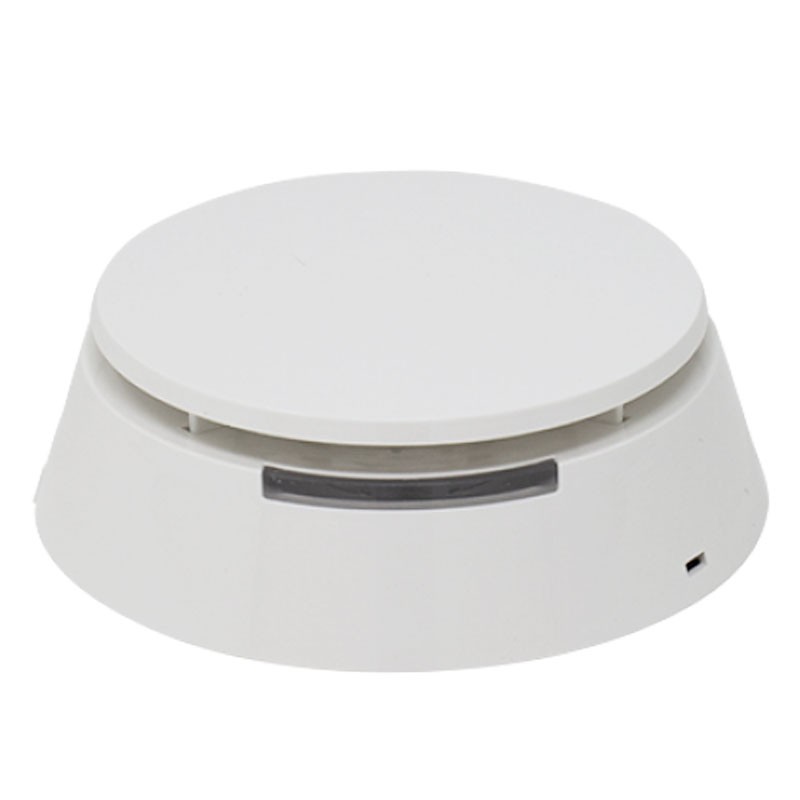

Comelit firefighting addressed heat detector 41RCS100
COE 41RCS100
8023903288087
Comelit LOGIFIRE series addressed thermovelocimeter fire detector with the following features:
- Power supply: 16 - 32VDC (Nominal 27VDC)
- Consumption in communication <290μA@27VDC
- Nominal (stand-by) power consumption <170uA@27VDC
- Current consumption in alarm 6.5mA
- Output in alarm state for remote signaling: 7.5mA@7.5VDC
- Backward compatibility with ATENA series control panels: yes
- Sensitivity levels: settable A1R (58º, RoR), A2S (60º), BS (75º)
- LED indicators: 2, 360° visibility
- Compliance class: EN54-5 A1/R, A2/S
- 41RBX020 compatible base (to be purchased separately)
- With isolator
€40.82
Items Available: 50
: 4
Frequently bought together
The 41RCS100 series LOGIFIRE detector is a programmable multifunctional heat detector with built-in isolator. It is capable of detecting exceeding the fixed set threshold or rapid changes in temperature ("rate of rise") as stipulated by the EN 54-5 standard.
Its operation can be programmed to comply with classes A1/R*, A2/S*, B/S. Microprocessor-based digital signal analysis. Quick cleaning of the sensor chamber by intuitive component release.
Revised design suitable for any type of installation even the most aesthetically demanding ones. High-visibility light signals. Automatic or programmer addressing modes. Programmable operating classes: A1/R, A2/S, B/S. Certification according to EN 54-5 and EN 54-17.
Other technical features:
- Settling time to power supply: 30 seconds.
- EN standards: EN54-5, EN54-17
- Degree of protection IP30
- Type ABS coating materials
- Product color White RAL 9016
- Operating temperature: -10/+60
- Operating humidity (RH max @40°C) (%): 0 ÷ 96
- Cable cross section for terminals (mm): 0.4 ÷ 2.5
- Width: 108 mm
- Height including base: 41 mm
- Weight: 125 grams
There are no reviews
Data sheet
- Type: Rate-Of-Rise Heat Detectors
