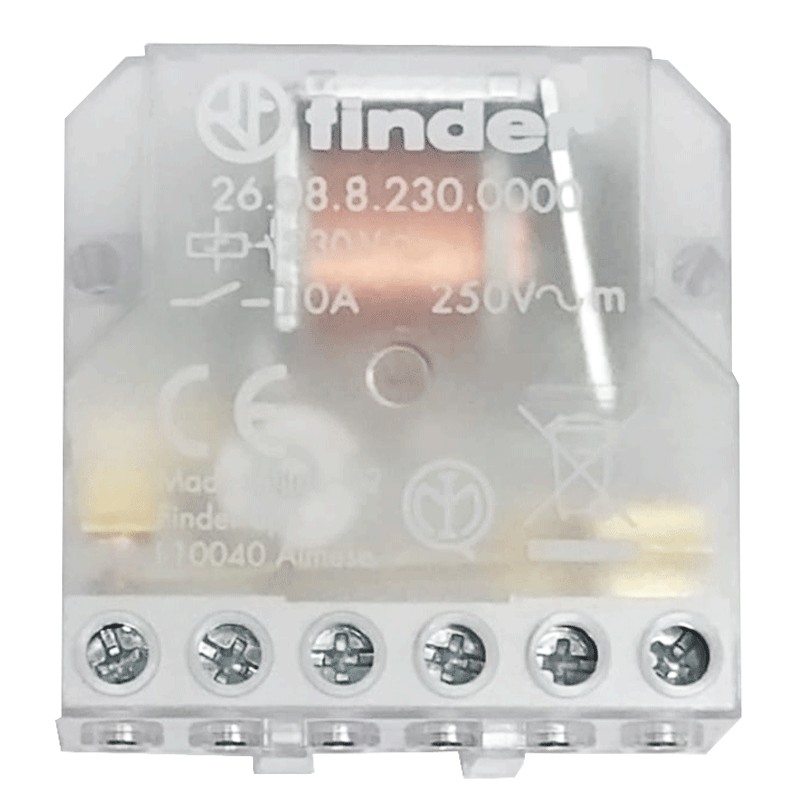

Finder Pulse Switch Relay 4 sequences 230V 26088230
FIN 260882300000
8012823238272
Finder Type 26.08 Pulse Relay/Switch with 4 sequences, with the following characteristics:
- Rated supply voltage (UN) in AC (50 Hz) 12 - 24 - 48 - 110 - 230V
- Nominal/Max switching voltage 250/400 Vac
- Nominal power VA (50 Hz) W 4.5
- Operating range AC (0.8...1.1)UN
- Rated/Max instantaneous current 10/20
- Rated load in AC1 2500 VA
- Nominal load in AC15 (230 V AC) 500 VA
Finder Pulse Switch Relay 4 sequences 230V 26088230
€11.91
€11.91
Tax included
Tax included
Pay in installments with Klarna
Items Available: 62
Features:
- Finder Series
- Contact configuration 2 NO
- Minimum switching load 1000 (10/10) mW (V/mA)
- Standard contacts material AgNi
- Mechanical life AC/DC 300 - 10 cycles
- Electrical life at rated load in AC1 100 - 10 cycles
- Min./Max. switching pulse duration 0.1 s/1 h (acc. to EN 60669)
- Insulation between coil and contacts (1.2/50 μs) 4 kV
- Ambient temperature -40...+40°C
- Protection class IP20
Lamp capacity
- incandescent/halogen 230 V W 800
- fluorescent with electronic ballast 400 W
- fluorescent with power factor correction electromagnetic ballast 360W
- CFL 200W
- LED 230 V 200W
- halogen or BT LED with 200W electronic transformer
- Halogen or BT LED with 400W electromagnetic transformer
Advantages:
- With separate coil circuit and contacts
- Type 26.08 = Diverter switch 4 sequences 2 NO
- 6 sequences available
- Screw terminals
- AC coil
- Panel or flush mounting
- Cadmium-free contacts
Data sheet
- Type:
- Impulse relays
- Model:
- Step relays
- Installation:
- Recessed
