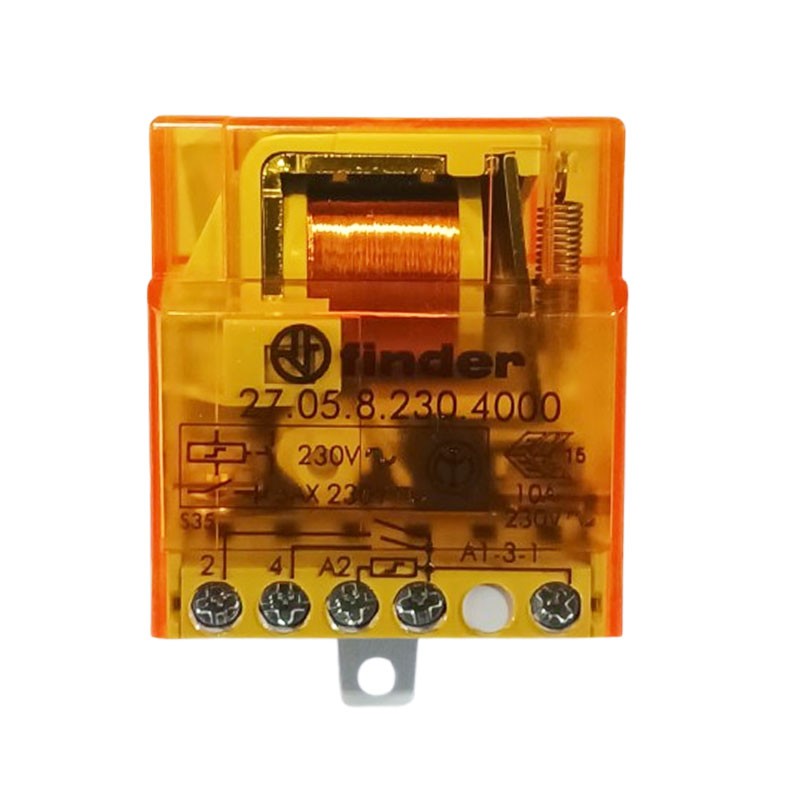

Finder 10A 230VAC 2NO impulse switch relay 270582304000
FIN 270582304000
8012823461007
Finder impulse switch relay 270582304000, 230V AC, 10A, with 2 NO contacts and 4-sequence switch. Ideal for cyclic commands and simple automations.
-
Electromechanical impulse relay with 4-sequence switch.
-
2 normally open contacts (2NO)
-
AC 230 V coil (operating range 184 253 V)
-
Contacts rated current: 10 A
-
AgSnO contacts for high reliability
-
Socket terminals, installation as a false pole
-
Operating temperature: -40 °C / +40 °C
€10.38
Items Available: 2014
: 195
Frequently bought together
Finder impulse switching relay with 4 sequences for cyclic commands
The Finder 270582304000 is a pulse switching relay designed for applications that require a structured operating sequence due to the presence of 4 switching positions. The configuration with 2 NO contacts with common excitation allows cyclic or alternating control of multiple electrical loads, being particularly useful in scenic lighting systems, home automation logic, or multiple sequential controls.
Direct mains power supply at 230 V AC
Equipped with a 230 V AC coil, the relay is compatible with most standard electrical systems. Operation is guaranteed over a wide voltage range, from 184 to 253 V, and with a low power consumption of 20 mA and power rating of 4.8 VA, the device ensures high efficiency.
AgSnO contacts: performance and durability
Contacts made of AgSnO? (silver-tin oxide) offer high resistance to electrical arc and switching wear, ensuring reliability even with inductive loads. Each contact supports up to 10 A at 230 V AC, making the relay suitable for lamps, fans, actuators and small motors.
Easy installation with bush terminals
The device is designed to be installed as a false pole, thanks to its compact size (35.2 x 40.7 x 22.7 mm) and convenient sleeve terminals, which simplify connection and provide a secure electrical seal. This makes it perfect for both new and retrofit installations.
Perfect for residential and tertiary automations
Thanks to the 4-sequence switch, the Finder 270582304000 is particularly suitable for environments where it is necessary to manage repetitive cycles or alternate multiple electrical loads with a single control. It is excellent for use in residential, tertiary, home automation or small industrial automation systems.
| Feature | Value |
|---|---|
| Product code | 270582304000 |
| Type | Electromechanical impulse switch relay |
| Sequences | 4 |
| Contact configuration | 2 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 TO 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 6250 Ω |
| Contact material | AgSnO? |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Installation: Recessed
