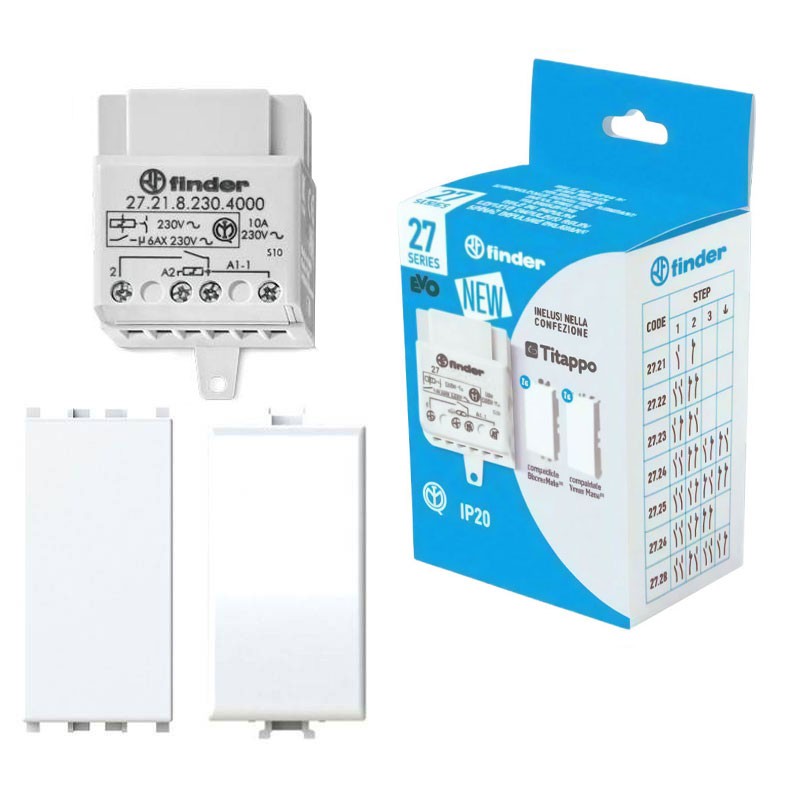

Finder kit with relay 272182304000 and two blank modules Matix and Vimar
FIN 272182304000POA
8012823464459
Complete kit ideal for retrofit civil installations, which includes a 10A Finder 272182304000 EVO (Integrated Coil Power Limiter) relay with quick-off function and compatibility with lighted pushbuttons, and adapter caps for Bticino Matix and Vimar Plana plates.
-
Finder EVO relay 272182304000 230V, 10A, 1 NO contact
-
Integrated coil power limiter
-
Compatible with up to 15 light buttons without adapters
-
1x BTicino Matix compatible 4Box blank module (part no. 4BAMTT)
-
1x Vimar Plana compatible 4Box blank module (part no. 4BV14TT)
-
Compact and silent installation from behind the window
€8.41
Items Available: 2109
: 1787
Frequently bought together
Finder kit with EVO relay and Matix and Vimar blank modules: Compact solution with coil power limiter
The 272182304000 model is part of the Finder EVO range, designed to increase performance and reduce power consumption. Ideal for recessed installations in tight spaces, it features a low-power coil with power limiter and supports direct connection with illuminated buttons without additional components.
Compatible with 230 V AC mains.
The 230 V AC coil, with an operating range of 184 to 253 V, ensures maximum compatibility with the standard power grid. Thanks to the built-in limiter, the coil is not overloaded, reducing the risk of overheating and increasing the life of the relay even under heavy use.
Reliability of AgSnO contacts.
The relay features contacts made of AgSnO (silver-tin oxide), a material with high conductivity and arc resistance. This configuration allows safe switching up to 10 A at 230 V AC, making it suitable for lighting controls, ventilation, residential or tertiary loads.
Compact and ready for any installation
With dimensions of 35.2 x 40.7 x 22.7 mm, the Finder EVO 272182304000 installs as a false pole and is equipped with bush terminals for quick and safe wiring. The ease of integration makes it ideal for both new installations and upgrades to existing systems.
Recommended Applications
Perfect for multiple control lighting systems, this relay is designed to simplify electrical installation in homes, offices, hotels, schools, and wherever reliable centralized control is needed, even with illuminated pushbuttons.
| Feature | Value |
|---|---|
| Product code | 272182304000 |
| Type | EVO electromechanical pulse relay |
| Contact configuration | 1 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 253 V) |
| Coil resistance | 25-50 |
| Rated coil power | 4.8 VA |
| Built-in limiter | Yes (compatible with 15 light buttons) |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | Socket terminals, mounting as a false pole |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
