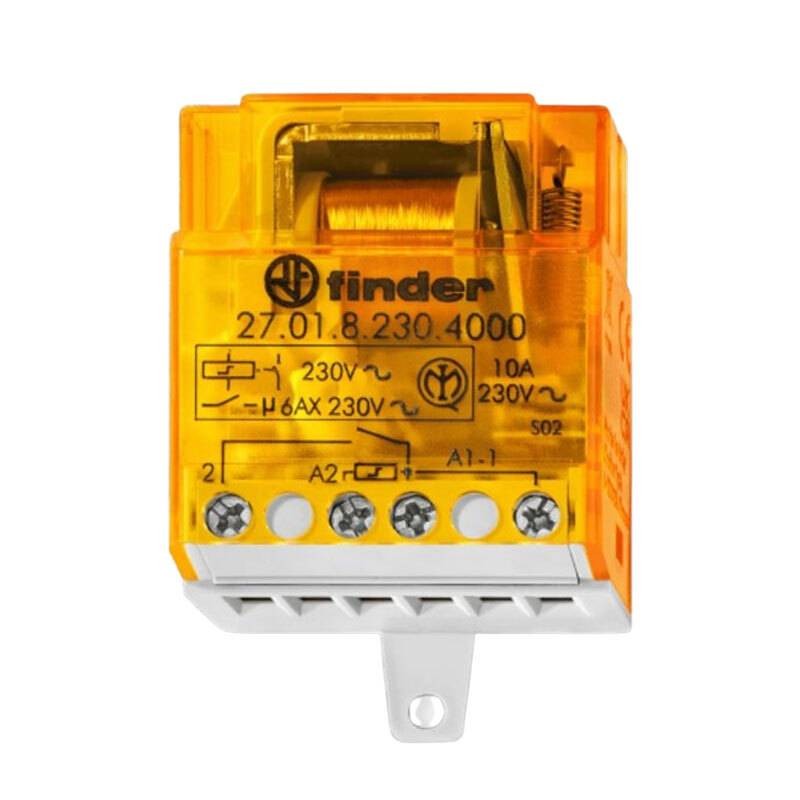

Finder 10A 230VAC 1NO impulse switch relay 270182304000
FIN 270182304000
8012823460840
Finder impulse relay 270182304000 with 230V AC coil and 1NO single-pole switch. Compact, reliable and ideal for multi-point light controls.
-
Electromechanical impulse relay with unipolar 1NO switch
-
Coil voltage 230V AC (range 184 253 V)
-
Rated contact current: 10 A
-
AgSnO contacts for high reliability and durability
-
Current consumption: 20 mA, power 4.8 VA
-
Socket terminals, simple false-pole installation
-
Operating temperature: -40 °C / +40 °C.
€8.92
Items Available: 1009
: 639
Frequently bought together
Finder impulse relay with single-pole 1NO switch
The Finder 270182304000 is an electromechanical impulse relay designed for multi-point light controls via pushbuttons. The configuration with a unipolar 1NO switch and common excitation contacts allows alternate switching on and off of a circuit, typically used in civil and tertiary installations for centralized lighting control.
Direct power supply at 230V AC
The coil is powered directly from the 230V AC mains, with an extended operating range from 184 to 253V, which ensures its compatibility even with slight voltage fluctuations. The device has a low power consumption of 20 mA, rated at 4.8 VA, ensuring efficiency and reliability.
Resistant contacts made of AgSnO
Contacts made of AgSnO (silver-tin oxide) ensure excellent conductivity and durability even under inductive loads. The relay supports a rated current of 10 A, making it ideal for controlling light loads, fans or other 230 V electrical devices.
Easy installation and compactness
Thanks to its small size (35.2 x 40.7 x 22.7 mm) and false-pole installation via bush terminals, the Finder 270182304000 can be easily integrated into existing electrical panels or new installations, with quick and safe wiring.
Key Applications.
Perfect for residential, commercial and tertiary applications, this step-by-step relay is suitable for multi-point control with low-voltage pushbuttons. Simple in operating logic but extremely effective, it is a solid choice for those seeking quality and reliability.
| Feature | Value |
|---|---|
| Product code | 270182304000 |
| Type | Electromechanical impulse relay |
| Contact configuration | 1 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 - 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 6250 Ω |
| Contact material | AgSnO? |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Installation: Recessed
