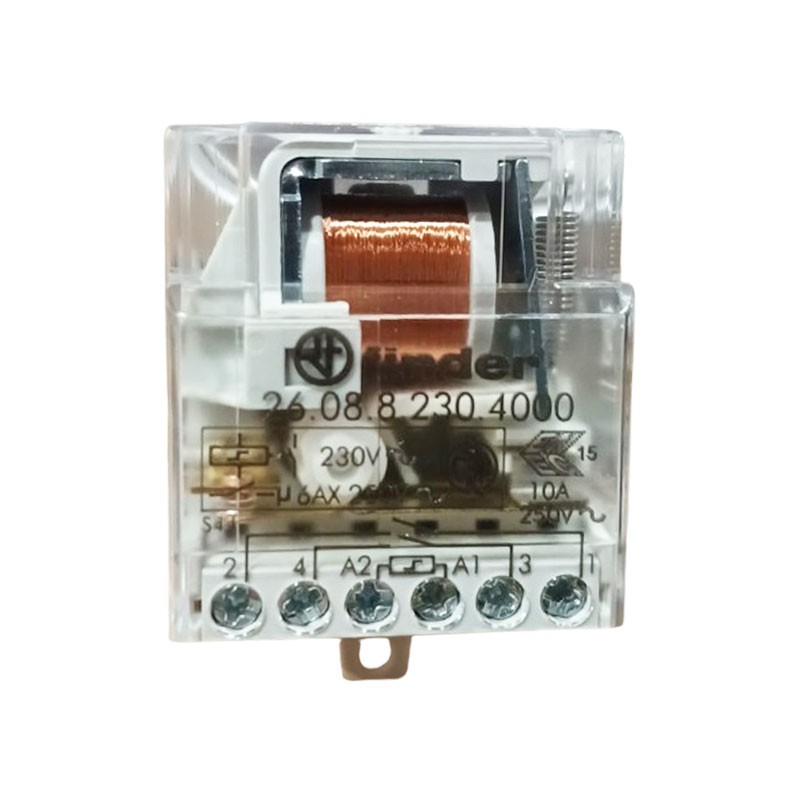

Finder step impulse relay 10A 230VAC 2NO 260882304000
FIN 260882304000
8012823460802
Finder impulse relay 260882304000, 230V AC, 10A, diverter switch with 4 sequences and 2 NO contacts. Ideal for complex cycles, automations and multiple load management.
-
Diverter switch with 4 sequences and 2 normally open contacts (2NO)
-
AC 230 V coil (operating range 184 253 V)
-
Contacts rated current: 10 A
-
AgSnO contacts for long life and high conductivity
-
Current consumption 20 mA, power 4.8 VA
-
Socket terminals, false-pole installation
-
Operating temperature: -40 °C / +40 °C
€12.89
Items Available: 46
: 25
Finder step impulse relay with 4-sequence diverter switch
The Finder 260882304000 is an electromechanical impulse relay designed for applications requiring articulated cyclic control, thanks to the presence of a 4-sequence diverter with 2 NO contacts. This device allows alternating or sequential control of two electrical loads on four switching positions, making it perfect for complex systems or simple logic automations.
Direct 230V AC power supply.
The coil operates directly at 230V AC, with an operating range of 184 to 253 V, making the relay compatible with standard civil and industrial electrical systems. Low power consumption (20 mA) and a power rating of 4.8 VA ensure energy efficiency and operational reliability.
High-performance AgSnO contacts
With contacts made of AgSnO (silver-tin oxide), the relay ensures high resistance to electrical arc and wear, even under frequent cycling or inductive loads. Each contact can handle up to 10 A at 230 V AC, making it suitable for controlling lights, motors, fans or HVAC systems.
Compact and quick assembly
With dimensions of 35.2 x 40.7 x 22.7 mm, the relay is easily installed as a false pole inside electrical panels. Socket terminals ensure simple, safe and fast wiring, making it ideal for both new and retrofit installations.
Versatile applications for cyclic controls
The Finder relay 260882304000 is perfect for controlling lighting systems with multiple scenarios, alternating loads, ventilation cycles, or for simplified home automation logics. The ability to handle 4 sequences with two contacts makes it a flexible tool for civil and tertiary automation.
| Feature | Value |
|---|---|
| Product code | 260882304000 |
| Type | Electromechanical impulse relay with diverter |
| Sequences | 4 |
| Contact configuration | 2 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 TO 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 6250 Ω |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | Socket terminals, false-pole mounting |
| Operating temperature range | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Step relays
- Installation: Recessed
