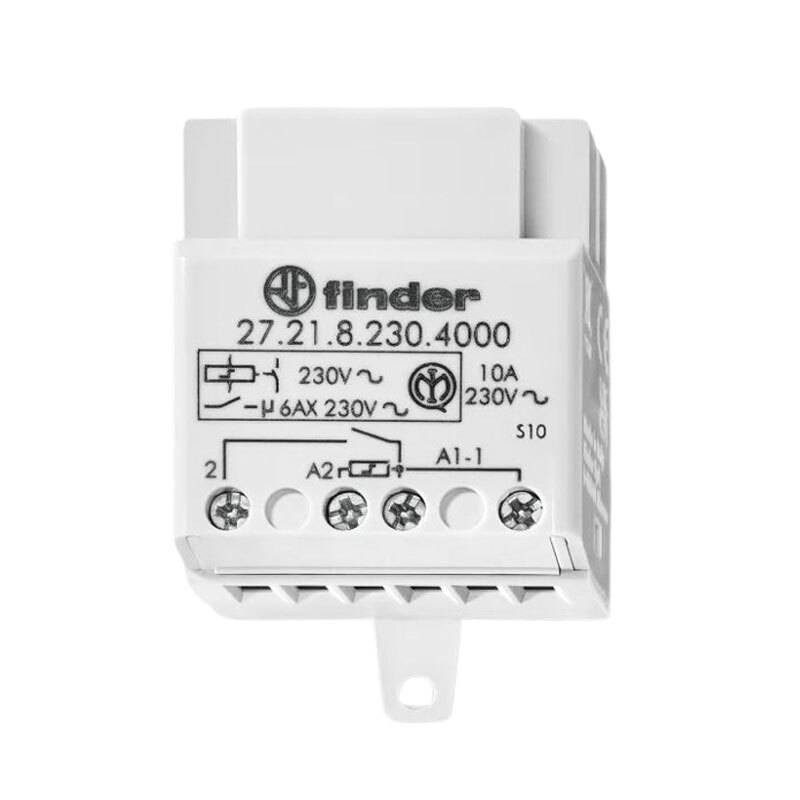

Finder EVO 10A 230VAC impulse switch relay 272182304000
FIN 272182304000
8012823461106
Finder EVO impulse switch relay 272182304000, 230V AC, 10A, 1NO, with coil power limiter. Controllable by 15 light buttons without adapter.
-
Pulse relay with 1 NO (normally open) contact.
-
230V AC coil with built-in power limiter
-
Compatible with 15 light buttons without an adapter
-
Rated current: 10 A Contact voltage: 230 V AC
-
AgSnO contacts with high conductivity and durability
-
Socket terminals, installation as a false pole
-
Operating temperature: -40 °C / +40 °C.
€8.41
Items Available: 4950
: 1692
Frequently bought together
Finder impulse relay with efficient and optimized control with Finder EVO
The Finder EVO 272182304000 is an electromechanical impulse relay with a single-pole (1NO) switch function, designed to control electrical circuits from multiple points. Part of the EVO range, it is distinguished by the integration of a power limiter on the coil, allowing up to 15 light buttons to be connected without the need for external adapters, simplifying installation and increasing system efficiency.
Compatible with 230 V AC mains
The 230 V AC coil, with an operating range of 184 to 253 V, ensures maximum compatibility with the standard power grid. Thanks to the built-in limiter, the coil is not overloaded, reducing the risk of overheating and increasing the life of the relay even under heavy use.
Reliability of AgSnO contacts.
The relay features contacts made of AgSnO (silver-tin oxide), a material with high conductivity and arc resistance. This configuration allows safe switching up to 10 A at 230 V AC, making it suitable for lighting controls, ventilation, residential or tertiary loads.
Compact and ready for any installation
With dimensions of 35.2 x 40.7 x 22.7 mm, the Finder EVO 272182304000 installs as a false pole and is equipped with bush terminals for quick and safe wiring. The ease of integration makes it ideal for both new installations and upgrades to existing systems.
Recommended Applications.
Perfect for multiple control lighting systems, this relay is designed to simplify electrical installation in homes, offices, hotels, schools, and wherever reliable centralized control is needed, even with illuminated pushbuttons.
| Feature | Value |
|---|---|
| Product code | 272182304000 |
| Type | EVO electromechanical impulse relay |
| Contact configuration | 1 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 TO 253 V) |
| Coil resistance | 2550 Ω |
| Rated coil power | 4.8 VA |
| Built-in limiter | Yes (compatible with 15 light buttons) |
| Contact material | AgSnO? |
| Rated contact voltage | 230 V AC |
| Installation type | Socket terminals, mounting as a false pole |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Installation: Recessed
