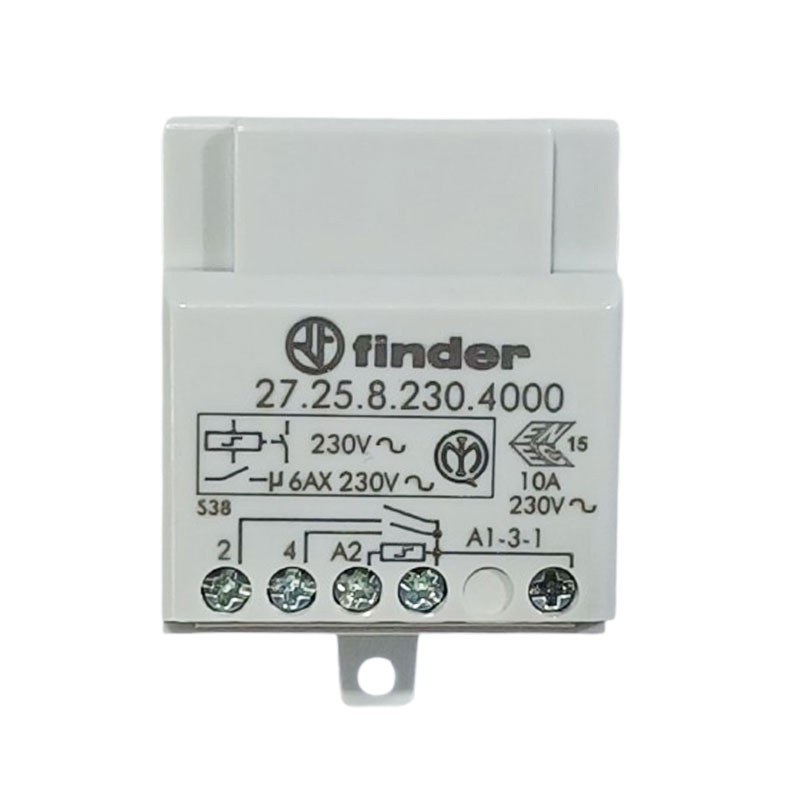

Finder EVO 10A 230VAC impulse switch relay 272582304000
FIN 272582304000
8012823461182
Finder EVO impulse relay 272582304000, 230V AC, 10A, with 2 NO contacts and 4-sequence switch. Can be connected to 15 light buttons without an adapter.
-
EVO impulse relay with 4-sequence switch.
-
2 normally open contacts (2NO)
-
AC 230V coil with built-in power limiter
-
Compatible with 15 light buttons without adapter
-
Rated current: 10 A Contact voltage: 230 V AC
-
Highly conductive AgSnO contacts
-
Socket terminals, installation as a false pole
-
Operating temperature: -40 °C / +40 °C
€9.80
Items Available: 2464
: 1260
Frequently bought together
Finder EVO impulse relay with 4 sequences: advanced and simplified control
The Finder 272582304000 is an EVO series pulse switching relay designed to offer high performance and maximum compatibility with modern systems. The device features a 4-sequence switch and 2 NO contacts, ideal for cyclic or alternating control of two loads with a single pulse control line.
Integrated coil power limiter: no adapter required
One of the main innovations of the EVO model is the integrated power limiter on the coil, which allows direct connection of up to 15 light buttons without the use of adapters. This greatly simplifies system design and installation, reducing costs and increasing system reliability.
230 V AC power supply: full compatibility
The relay operates with direct 230 V AC power supply, in an operating range of 184 to 253 V, perfectly compatible with the civil and industrial power grid. With a power consumption of 4.8 VA and coil resistance of 2550 , the device ensures low consumption and maximum efficiency.
Performance contacts made of AgSnO
The 2 normally open contacts are made of AgSnO (silver-tin oxide), a highly arc-resistant material ideal for switching loads up to 10 A at 230 V AC. The relay is therefore suitable for lighting, fans, resistive or slightly inductive loads.
Easy to install, even in retrofit
With its compact dimensions (35.2 x 40.7 x 22.7 mm) and bush terminals, the relay installs as a false pole in electrical panels quickly and safely. It is the perfect choice for both new installations and for upgrading existing systems.
| Feature | Value |
|---|---|
| Product code | 272582304000 |
| Type | EVO pulse switch relay |
| Operating sequences | 4 |
| Contact configuration | 2 NO (normally open) |
| Contacts rated current | 10 A |
| Rated contact voltage | 230 V AC |
| Coil voltage | 230 V AC (184 - 253 V) |
| Power consumption | 4.8 VA |
| Coil resistance | 2550 Ω |
| Coil power limiter | Integrated |
| Light button compatibility | Up to 15, without adapter |
| Contact material | AgSnO |
| Installation type | Socket terminals, mounting as a false pole |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
