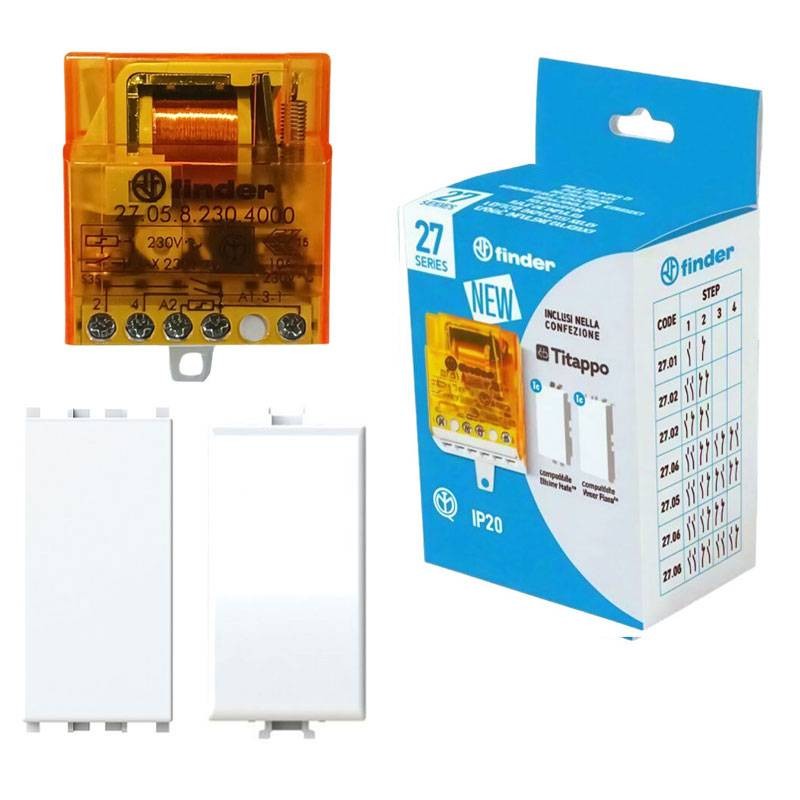

Finder kit with relay 270582304000 and two blank modules Matix and Vimar
FIN 270582304000POA
8012823465739
Complete retrofit installation kit with 10A Finder 270582304000 impulse relay and hole covers for BTicino Matix and Vimar Plana plates. Ideal for modern civil installations, quiet and easy to install.
-
Finder relay 270582304000 230V, 10A, 2 NO contacts
-
4-sequence switch for greater versatility
-
4Box blank module compatible with BTicino Matix series (part no. 4BAMTT)
-
4Box blank module compatible with Vimar Plana series (part no. 4BV14TT)
-
Simple, compact and silent retrofit installation
-
High-quality materials and AgSnO contacts
€10.38
Items Available: 370
: 297
Frequently bought together
Finder kit with Matix and Vimar relays and blank modules: Reliable and compact control for civil installations

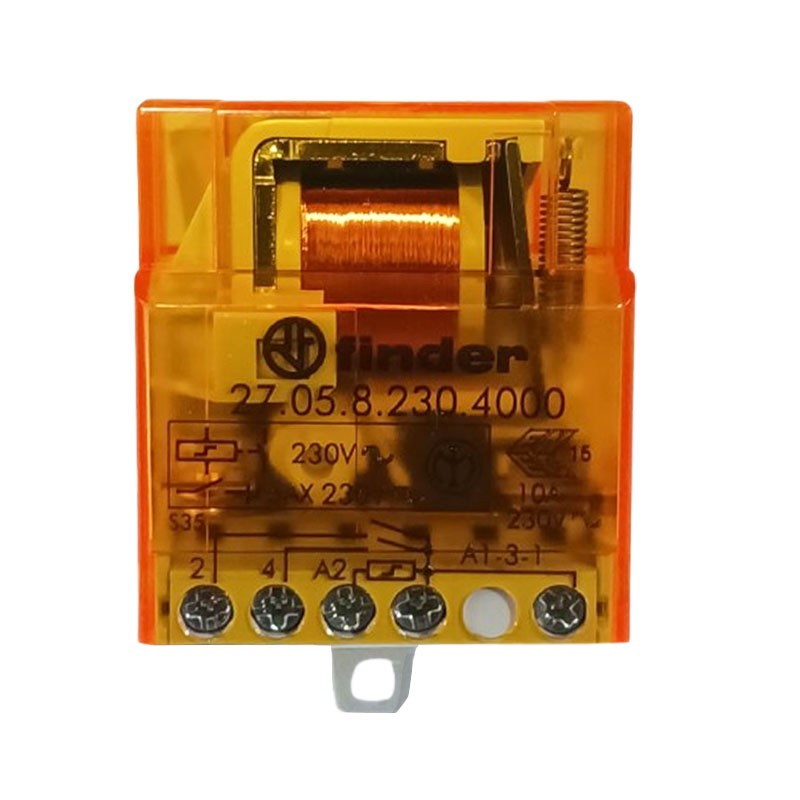

The Finder 270582304000 is a pulse switching relay designed for applications requiring a structured operating sequence, thanks to the presence of 4 switching positions. The configuration with 2 NO contacts with common excitation allows cyclic or alternating control of multiple electrical loads, being particularly useful in scenic lighting systems, home automation logic, or multiple sequential controls.
Direct mains power supply at 230 V AC
Equipped with a 230 V AC coil, the relay is compatible with most standard electrical systems. Operation is guaranteed over a wide voltage range, from 184 to 253 V, and with a low power consumption of 20 mA and power rating of 4.8 VA, the device ensures high efficiency.
AgSnO contacts: performance and durability
AgSnO (silver-tin oxide) contacts offer high resistance to electrical arc and switching wear, ensuring reliability even with inductive loads. Each contact supports up to 10 A at 230 V AC, making the relay suitable for lamps, fans, actuators and small motors.
Easy installation with bush terminals
The device is designed to be installed as a false pole, thanks to its compact size (35.2 x 40.7 x 22.7 mm) and convenient sleeve terminals, which simplify connection and provide a secure electrical seal. This makes it perfect for both new and retrofit installations.
Perfect for residential and tertiary automations
Thanks to the 4-sequence switch, the Finder 270582304000 is particularly suitable for environments where it is necessary to manage repetitive cycles or alternate multiple electrical loads with a single control. It is excellent for use in residential, tertiary, home automation or small industrial automation systems.
| Feature | Value |
|---|---|
| Product code | 270582304000 |
| Type | Electromechanical impulse switch relay |
| Sequences | 4 |
| Contact configuration | 2 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 62-50 |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
