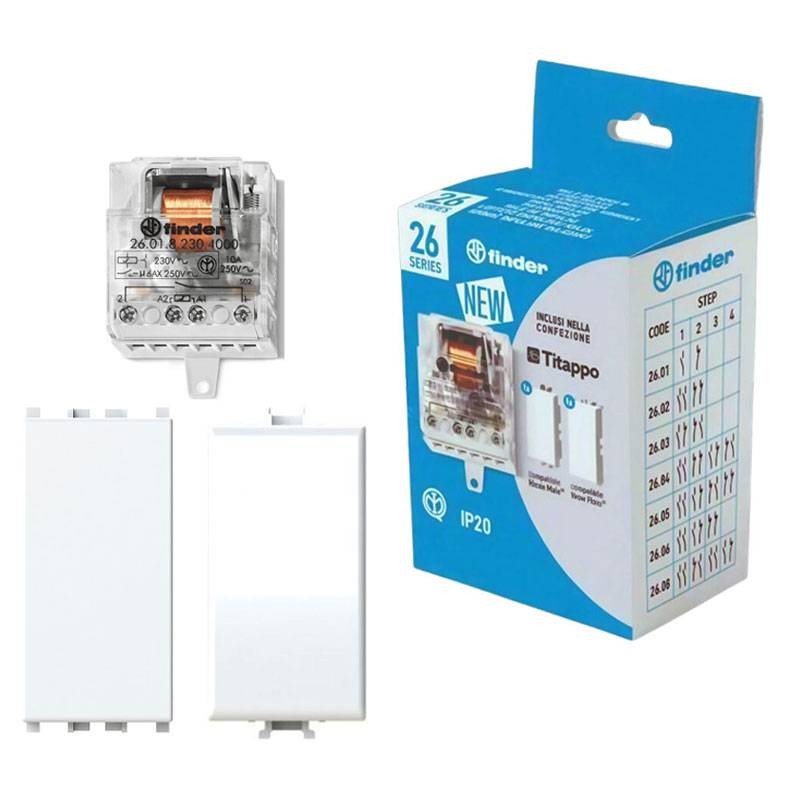

Finder kit with relay 260182304000 and two blank modules Matix and Vimar
FIN 260182304000POA
8012823464435
Finder kit with 230V 10A 1 NO (normally open) impulse relay and two Matix and Vimar compatible 4Box blank modules: compact and silent solution for fast and professional retrofit installations.

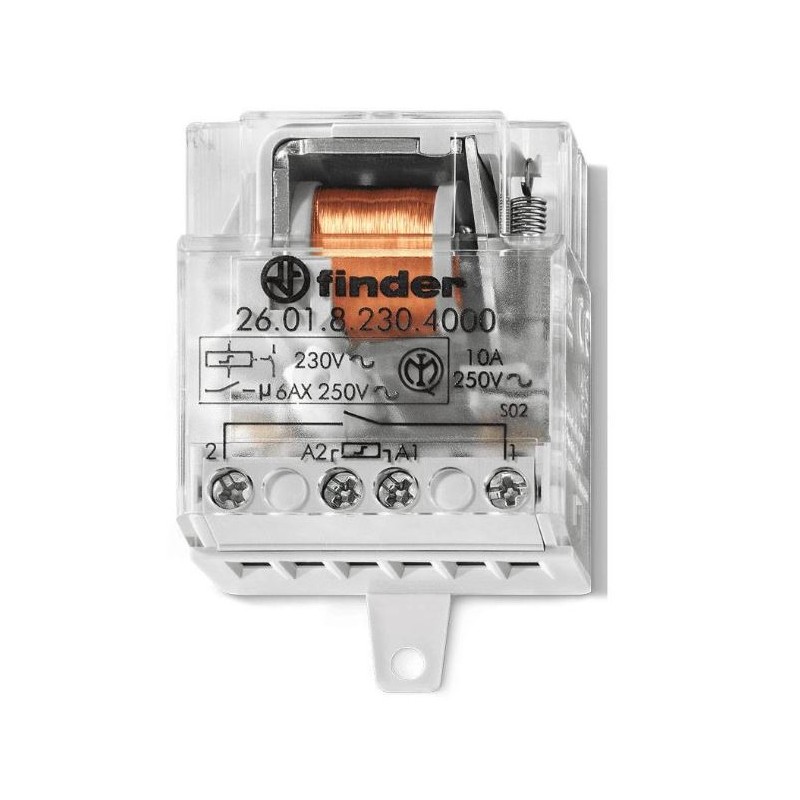

Finder impulse relay 260182304000, 10A, 230V AC
2 aesthetic blank modules included 4Box: 4BAMTT and 4BV14TT compatible with Matix and Vimar Plana retrofits
Ultra-compact stepper relay: only 22.7 mm deep
AgSnO contacts for high durability and reliability
Easy installation: bush terminals, false pole.
€9.14
Items Available: 2224
: 514
Frequently bought together
Finder complete relay kit for retrofit installations: compact, practical, silent
The Finder Kit is the ideal solution for those seeking intelligent management of lighting or other loads via step-by-step relays. The heart of the kit is the Finder relay model 260182304000, 10 A, operating at 230 V AC, designed for professional use in junction boxes or retrofits.
This kit is enriched by two 4Box aesthetic caps, perfectly compatible with Bticino's Matix (4BAMTT) and Vimar's Plana (4BV14TT) series, to ensure an impeccable aesthetic finish that can be perfectly integrated with the inserts of the main civil series.
Finder 26 series stepper relays: quality and reliability
The relay is designed with bush terminals and provision for mounting as a false pole, allowing rapid installation in flush-mounted boxes, even in small spaces thanks to its low thickness (22.7 mm).
| Feature | Value |
|---|---|
| Electrical characteristics | |
| Contacts rated current | 10 A |
| Contact configuration | 1 NO (normally open) |
| Coil voltage | 230 V AC |
| Power consumption | 20 mA |
| Rated power | 4.8 VA |
| Coil resistance | 6250 Ω |
| Contact material | AgSnO (high arc resistance) |
| Environmental conditions | |
| Operating temperature | -40 ÷ +40 °C |
| Physical characteristics | |
| Dimensions (W x H x D) | 35.2 x 40.7 x 22.7 mm |
| Installation type | Backplane, bush terminals, false pole |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Step relays
- Installation: Recessed
