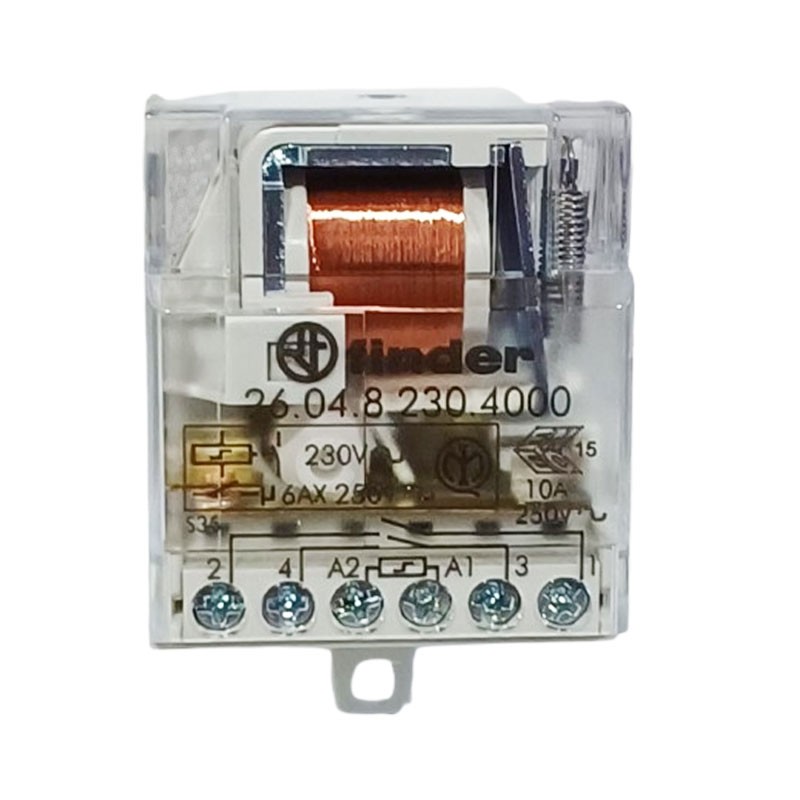

Finder step impulse relay 10A 230VAC 2NO 260482304000
FIN 260482304000
8012823460567
Finder impulse relay 260482304000 with 230V AC coil, 10A, 2 NO contacts and 4-sequence switch. Ideal for cyclic applications or multiple commands.
-
Electromechanical stepper relay with 4-sequence switch.
-
2 normally open contacts (2NO)
-
Coil voltage: 230 V AC (range 184 253 V)
-
Contacts rated current: 10 A
-
AgSnO contacts for high conductivity and resistance
-
False-pole installation with bush terminals
-
Operating temperature: -40 °C to +40 °C.
€10.60
Items Available: 131
: 33
Frequently bought together
Finder Impulse Relay: Sequential switching for complex systems
The Finder Impulse Relay 260482304000 is designed to handle up to four switching sequences, thanks to its configuration with 2 NO contacts and integrated switch. This feature makes it ideal for applications where multiple circuits need to be controlled cyclically, such as alternating lighting, sequential activation of loads or simple automations.
Direct power supply at 230 V AC
The relay coil is powered at 230 V AC, compatible with standard civil and industrial systems, with an operating range of 184 to 253 V. Power consumption is low at 20 mA (4.8 VA), ensuring efficient operation even in low-power systems.
AgSnO contacts for high reliability
Contacts made of AgSnO (silver-tin oxide) ensure long operating life even under inductive loads, thanks to their high arc resistance and excellent conductivity. Each contact can handle up to 10 A at 230 V AC, making this relay suitable for a wide range of electrical devices.
Compact and simplified installation
With small dimensions (35.2 x 40.7 x 22.7 mm) and sleeve terminals, the relay can be quickly installed as a false pole in electrical panels. This makes it extremely practical for additions to existing systems and for new installations, even in tight spaces.
Ideal for sequential applications and automation
Thanks to its 4-sequence function, this Finder relay is perfect for applications where cyclic or alternating control is required, such as in scenic lighting systems, HVAC systems, cyclically rotating devices, or simple automation logic in civil and tertiary applications.
| Feature | Value |
|---|---|
| Product code | 260482304000 |
| Type | Electromechanical impulse relay with switch |
| Sequences | 4 |
| Contact configuration | 2 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 TO 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 6250 Ω |
| Contact material | AgSnO? |
| Rated contact voltage | 230 V AC |
| Installation type | Socket terminals, mounting as a false pole |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Step relays
- Installation: Recessed
