Finder kit with relay 270182304000 and two blank modules Matix and Vimar
FIN 270182304000POA
8012823464442
Finder kit with 230V 10A 1NO step relay (mod. 270182304000) and caps compatible with Matix and Vimar: ideal for compact, quiet and high-performance back-fruit installations.
Kit contents:
-
1x Finder impulse relay 270182304000 230V 10A 1NO
-
1x blank module 4Box Matix compatible (part no. 4BAMTT)
-
1x blank module 4Box Vimar Plana compatible (part no. 4BV14TT)
€8.92
Items Available: 1290
: 814
Frequently bought together
Finder kit with relays and blank modules Matix and Vimar: Compact solution for civil installations

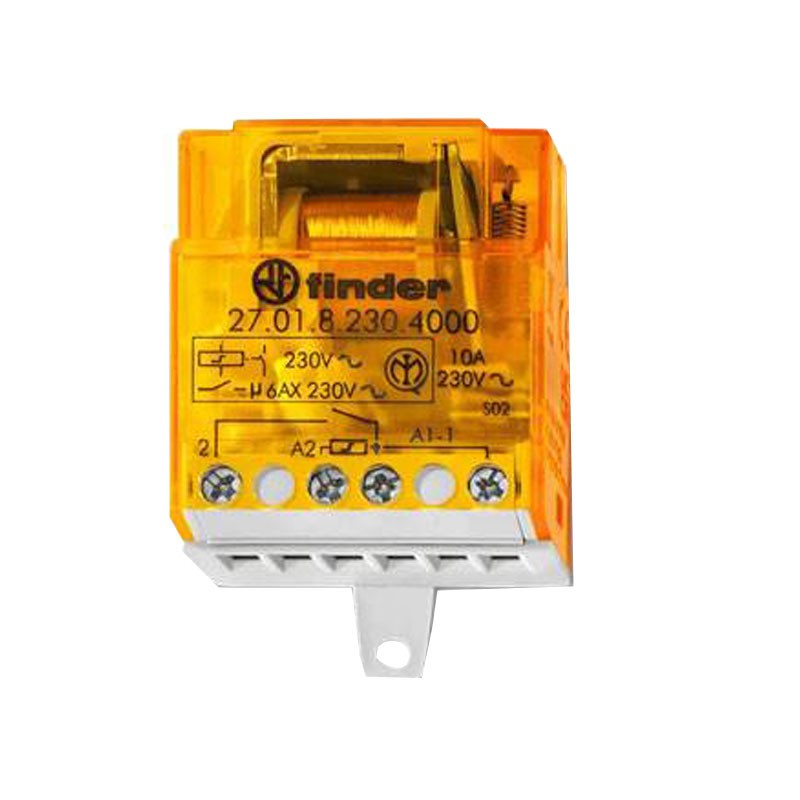

The Finder 270182304000 is an electromechanical impulse relay designed for light controls from multiple points via pushbuttons. The configuration with a single-pole 1NO switch and common excitation contacts allows alternating switching on and off of a circuit, typically used in civil and tertiary installations for centralized lighting control.
Direct power supply at 230V AC
The coil is powered directly from the 230V AC mains, with an extended operating range from 184 to 253V, which ensures its compatibility even with slight voltage fluctuations. The device has a low power consumption of 20 mA, rated at 4.8 VA, ensuring efficiency and reliability.
Resistant contacts made of AgSnO
Contacts made of AgSnO (silver-tin oxide) ensure excellent conductivity and durability even under inductive loads. The relay supports a rated current of 10 A, making it ideal for controlling light loads, fans or other 230 V electrical devices.
Easy installation and compactness
Thanks to its small size (35.2 x 40.7 x 22.7 mm) and false-pole installation via bush terminals, the Finder 270182304000 can be easily integrated into existing electrical panels or new installations, with quick and safe wiring.
Key Applications.
Perfect for residential, commercial and tertiary applications, this step-by-step relay is suitable for multi-point control with low-voltage pushbuttons. Simple in operating logic but extremely effective, it is a solid choice for those seeking quality and reliability.
| Feature | Value |
|---|---|
| Product code | 270182304000 |
| Type | Electromechanical impulse relay |
| Contact configuration | 1 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 62-50 |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Collection
