Finder kit with relay 272582304000 and two blank modules Matix and Vimar
FIN 272582304000POA
8012823464466
Complete kit for backlight control, compatible with BTicino Matix and Vimar Plana plates. Finder 272582304000 EVO (Integrated Coil Power Limiter) 10A pulse relay offers high performance, quiet operation, and advanced management even with lighted buttons.
Kit contents.
-

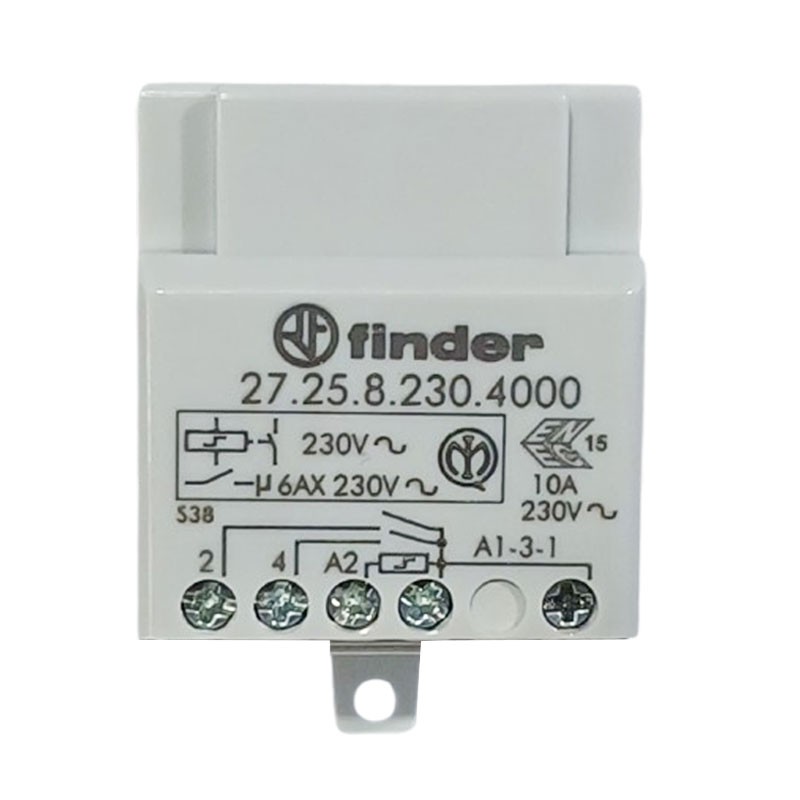

1x Finder EVO relay 272582304000 230V, 10A, 2 NO contacts
-
1x blank module BTicino Matix compatible 4Box part no. 4BAMTT
-
1x blank module 4Box compatible Vimar Plana part no. 4BV14TT
€9.79
Items Available: 1383
: 1107
Frequently bought together
Finder kit with Matix and Vimar relays and blank modules: Compact solution with coil power limiter
The Finder 272582304000 is an EVO series pulse switching relay designed to offer high performance and maximum compatibility with modern systems. The device features a 4-sequence switch and 2 NO contacts, ideal for cyclic or alternating management of two loads with a single pulse control line.
Integrated coil power limiter: no adapter required
One of the main innovations of the EVO model is the integrated power limiter on the coil, which allows direct connection of up to 15 light buttons without the use of adapters. This greatly simplifies system design and installation, reducing costs and increasing system reliability.
230 V AC power supply: full compatibility
The relay operates with direct 230 V AC power supply, in an operating range of 184 to 253 V, perfectly compatible with the civil and industrial power grid. With a power consumption of 4.8 VA and coil resistance of 2550 , the device ensures low consumption and maximum efficiency.
Performance contacts made of AgSnO
The 2 normally open contacts are made of AgSnO (silver-tin oxide), a highly arc-resistant material ideal for switching loads up to 10 A at 230 V AC. The relay is therefore suitable for lighting, fans, resistive or slightly inductive loads.
Easy to install, even in retrofit
With its compact size (35.2 x 40.7 x 22.7 mm) and bush terminals, the relay installs as a false pole in electrical panels quickly and safely. It is the perfect choice for both new installations and for upgrading existing systems.
| Feature | Value |
|---|---|
| Product code | 272582304000 |
| Type | EVO pulse switch relay |
| Operating sequences | 4 |
| Contact configuration | 2 NO (normally open) |
| Contacts rated current | 10 A |
| Rated contact voltage | 230 V AC |
| Coil voltage | 230 V AC (184 253 V) |
| Power consumption | 4.8 VA |
| Coil resistance | 25/50 |
| Coil power limiter | Integrated |
| Light button compatibility | Up to 15, without adapter |
| Contact material | AgSnO |
| Installation type | Socket terminals, mounting as a false pole |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
