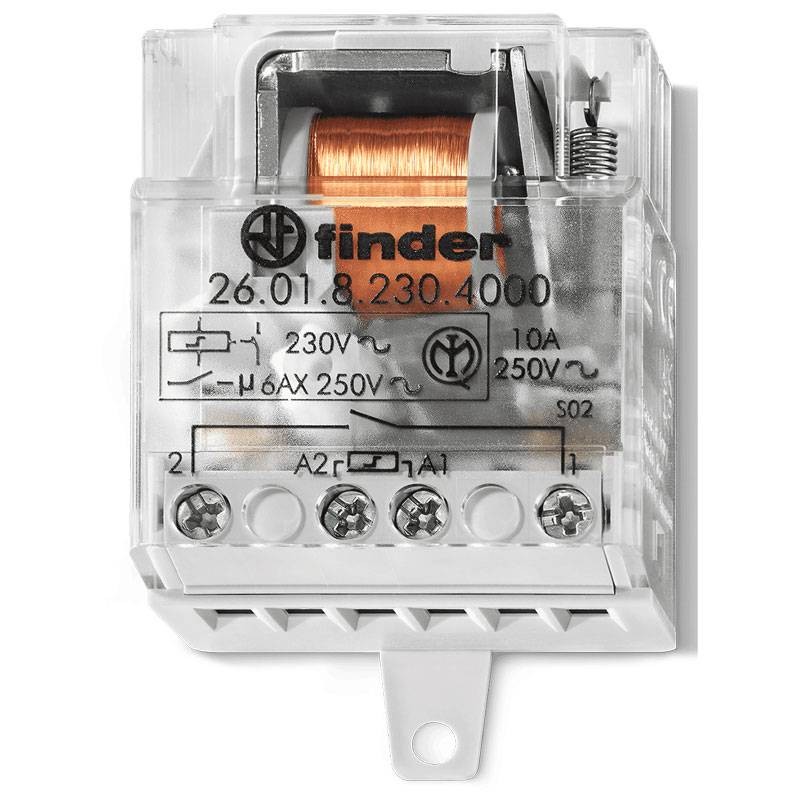

Finder step impulse relay 10A 230VAC 1NO 260182304000
FIN 260182304000
8012823460321
Finder impulse relay 260182304000 at 230V AC is ideal for step-by-step control in lighting and automation systems, compact, reliable and easy to install.
-
Pulse relay with 1NO single-pole (normally open) contact
-
Coil voltage: 230V AC (range 184 253 V)
-
Rated contact current: 10 A
-
Power consumption: 4.8 VA 20 mA
-
Contacts made of AgSnO with high conductivity and resistance
-
Installation with sleeve terminals, false-pole mounting
-
Operating temperature range: -40 °C to +40 °C
€9.14
Items Available: 584
: 325
Frequently bought together
Finder Impulse Relay: Step control from multiple locations
The Finder Impulse Relay 260182304000 enables control of electrical circuits from multiple locations by means of pulses, typically via pushbuttons. The single-pole normally open (1NO) contact allows a load to be turned on or off from any point in the line, without the need for complex circuits. This feature makes it ideal for lighting automation in residential buildings, offices, and industrial facilities.
230 V AC power supply: ready for direct use in civil installations
The relay has a coil powered directly at 230 V AC, with an operating range of 184 to 253 V. This makes it perfect for immediate integration into standard civil electrical installations, without the need for transformers or voltage adapters. Power consumption of only 20 mA ensures energy efficiency and low impact on consumption.
Maximum reliability with quality materials
The relay employs contacts made of AgSnO (silver-tin oxide), a material that ensures excellent electrical conduction and high resistance to electrical wear, even under inductive loads. The current rating of 10 A makes it suitable for handling significant electrical loads, such as lighting, fans or small motors.
Compactness and simplified installation
With its compact design (35.2 x 40.7 x 22.7 mm), the relay is ideal for mounting as a false pole in electrical panels. Socket terminals ensure safe and quick wiring, reducing installation time. The wide operating temperature range (-40 °C / +40 °C) allows use even in harsh environmental conditions.
| Feature | Value |
|---|---|
| Product code | 260182304000 |
| Type | Electromechanical impulse relay |
| Contact configuration | 1 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 - 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 6250 Ω |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature range | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Step relays
- Installation: Recessed
