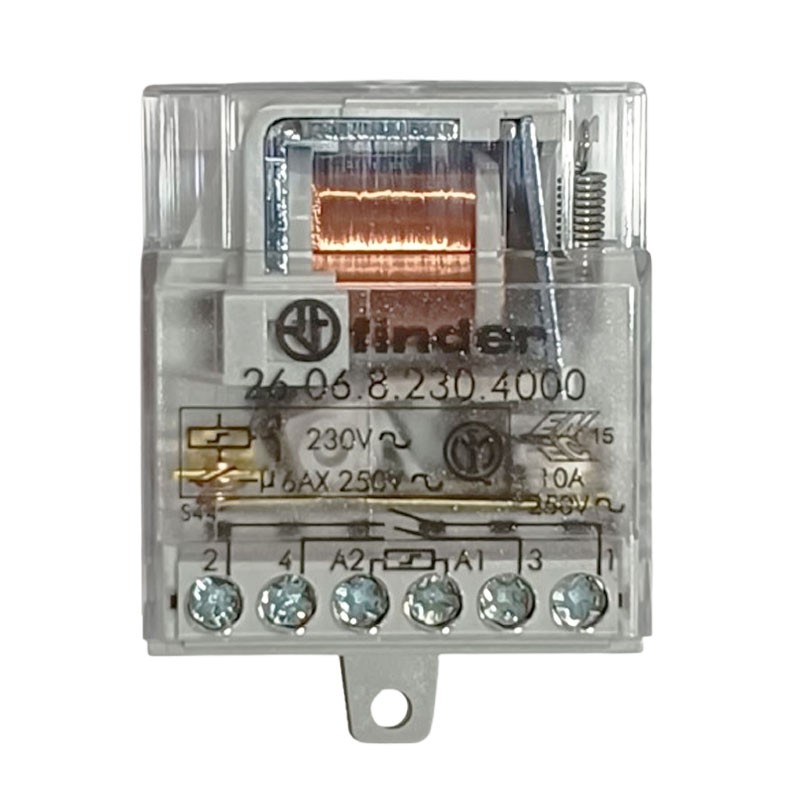

Finder step-by-step impulse relay 10A 230VAC 2NO 260682304000
FIN 260682304000
8012823460727
Finder impulse relay 260682304000 at 230V AC with 3-sequence switch and 2 NO contacts, ideal for alternating control cycles and simple logic systems.
-
3-sequence switch with 2 normally open contacts (2NO)
-
Coil voltage: 230 V AC (range 184 253 V)
-
Rated contact current: 10 A
-
Power consumption: 4.8 VA Power consumption: 20 mA
-
AgSno contacts for high durability and conductivity
-
False-pole installation with bush terminals
-
Operating temperature: -40 °C to +40 °C.
€12.89
Items Available: 50
: 27
Finder Pulse Relay: 3-state step-by-step control
The Finder 260682304000 is an electromechanical pulse relay equipped with a 3-sequence switch and 2 normally open (2NO) contacts, designed for applications where cyclic control over three states is required. Perfect for alternating illuminations, function selectors, simple logic loops or light automation, this relay allows multiple outputs to be controlled with a single pulse command line.
Standard 230 V AC power supply
Operates with a 230 V AC coil, compatible with standard line voltage, with an operating range of 184 to 253 V. The device has low power consumption (only 20 mA) and a power rating of 4.8 VA, ensuring reliable and safe performance.
Robust contacts made of AgSnO
Contacts made of AgSnO (silver-tin oxide) offer high wear and arc resistance, also ideal for inductive loads. They support a rated current of 10 A, making the relay suitable for controlling lamps, fans, small motors or other electrical devices.
Simple and compact installation
With small dimensions (35.2 x 40.7 x 22.7 mm) and false-pole installation, this relay can be perfectly integrated into standard electrical panels. Socket terminals facilitate safe and quick connection, reducing installation time and cost.
Ideal for simple automation and sequential controls
The 3-sequence function makes it particularly useful in installations that require multiple operating states with a single button, such as on-off-alternate cycles, light scenarios, control of distinct groups, or basic home automation logic.
| Feature | Value |
|---|---|
| Product code | 260682304000 |
| Type | Electromechanical pulse relay |
| Sequences | 3 |
| Contact configuration | 2 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 TO 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 6250 Ω |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Step relays
- Installation: Recessed
