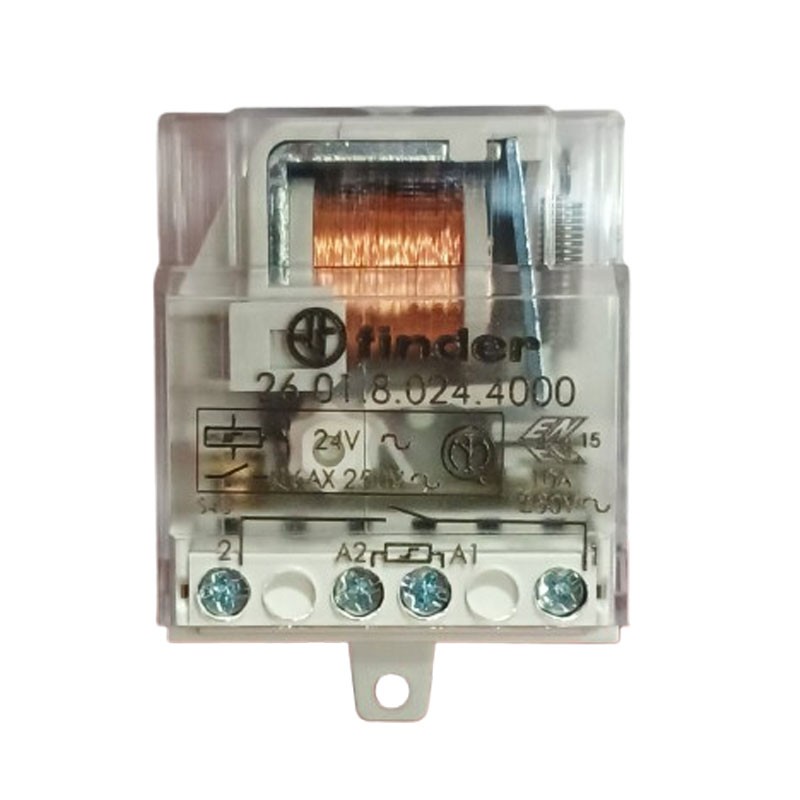

Finder step impulse relay 10A 24VAC 1NO 260180244000
FIN 260180244000
8012823460284
Finder impulse relay 260180244000 with AC 24 V coil, 10A, single-pole 1NO contact. Ideal for reliable stepper controls in civil and industrial installations.
-
Electromechanical impulse relay, 1NO contact
-
Coil voltage: 24 V AC (range 19.2 26.4 V)
-
Rated current: 10 A
-
Current consumption: 210 mA, power 4.8 VA
-
Highly conductive AgSnO contacts
-
False-pole installation with bush terminals
-
Operating temperature: -40 °C / +40 °C.
€9.70
Items Available: 20
: 18
Finder Impulse Relay: Stepper relay for control from multiple points
The Finder 260180244000 impulse relay is an electromechanical solution designed to control the switching on and off of electrical loads via pulses, from one or more pushbuttons. The normally open contact (1NO) allows easy control of lighting circuits or automations, making it ideal for civil and industrial systems that require centralized control.
Stable operation at 24 V AC
The built-in coil operates at 24 V AC with a wide operating range from 19.2 to 26.4 V, ensuring safe and accurate activation even with slight voltage fluctuations. With a power rating of 4.8 VA and a low power consumption of 210 mA, the device is efficient and suitable for various system configurations.
Strong and durable contacts
The relay is equipped with AgSnO (silver-tin oxide) contacts, which are known for their high resistance to electrical wear and conductivity. This technical choice ensures long life even with inductive loads or in applications subject to frequent switching cycles. The 10 A current rating allows use on a wide range of electrical devices and loads.
Compact, versatile and easy to install
With compact dimensions (35.2 x 40.7 x 22.7 mm) and installation via bush terminals, the relay is designed for mounting as a false pole in electrical panels. This configuration allows for quick integration even in tight spaces, without compromising safety or accessibility of connections.
For professional and domestic applications
Perfect for lighting automation, the Finder relay 260180244000 finds application in residential buildings, offices, schools, industries, and wherever reliable pulse control is needed. Operation in environments with temperatures from -40 °C to +40 °C further extends its versatility.
| Feature | Value |
|---|---|
| Product code | 260180244000 |
| Type | Electromechanical impulse relay |
| Contact configuration | 1 NO (normally open) |
| Contacts rated current | 10 A |
| Coil supply voltage | 24 V AC (19.2 TO 26.4 V) |
| Power consumption | 4.8 VA |
| Coil resistance | 60 Ω |
| Current consumption | 210 mA |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature range | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Step relays
- Installation: Recessed
