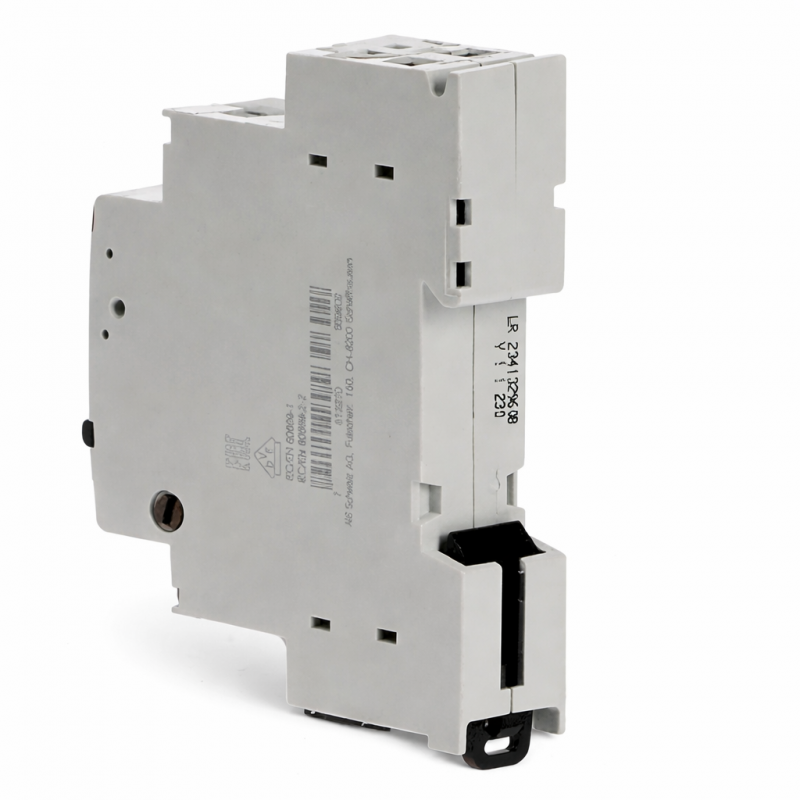

Abb Step relay E290 DIN rail 16A 230V M093960

Abb
Abb
ABB M093960 7612270939602

Electromechanical step relay Abb Series E290 with 16 Ampere for DIN rail allows switching with each pulse, ideal for light control from multiple points:

  • Voltage Uc (control): 230 V AC / 110 V DC

  • Rated current 16 Ampere

  • Rated frequency: 50 Hz

  • Power loss: 0.32 Watt

  • Colour: Light grey RAL 7035

  • Dimensions: 1 module; 18 × 85 × 62 mm

  • Ambient temperature: -25…+55 °C (operation); -40…+70 °C (storage)

  • Coil consumption: 0.062 A (230 V AC); average attraction value 0.057 A (50 Hz)

  • Front lever for manual control and contact status indication

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb Step relay E290 DIN rail 16A 230V M093960
€25.05
€25.05

€25.05
Tax included
Calculate shipping cost
Items Available: 46
Further availability of the manufacturer
€25.05

Buy it within and receive it from Monday, 23 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Further Abb circuit breaker combinations:

ABB E290 Step Relay, simple and versatile light control

The ABB E290 step relay (part no. M093960) is the ideal solution for creating lighting systems that are easy to manage, especially when you need to control one or more lamps from different points. The operating principle is straightforward: with each impulse sent to the coil via normally open (NO) buttons, the relay changes state and switches the contact. This way, you can achieve intuitive control of corridors, stairs, garages, commercial spaces, or offices, reducing the complexity of wiring compared to traditional solutions.

Reliable switching with 1 NO contact of 16A

Designed for typical load control applications such as lighting, the ABB E290 offers 1 normally open (NO) contact with a rated current of 16 A. The impulse switching ensures orderly management of turning on and off, while the indicated switching capacity (cos φ = 0.6 at 16 A) makes it suitable for loads with moderate inductive components. The response time < 3 ms contributes to prompt and precise switching.

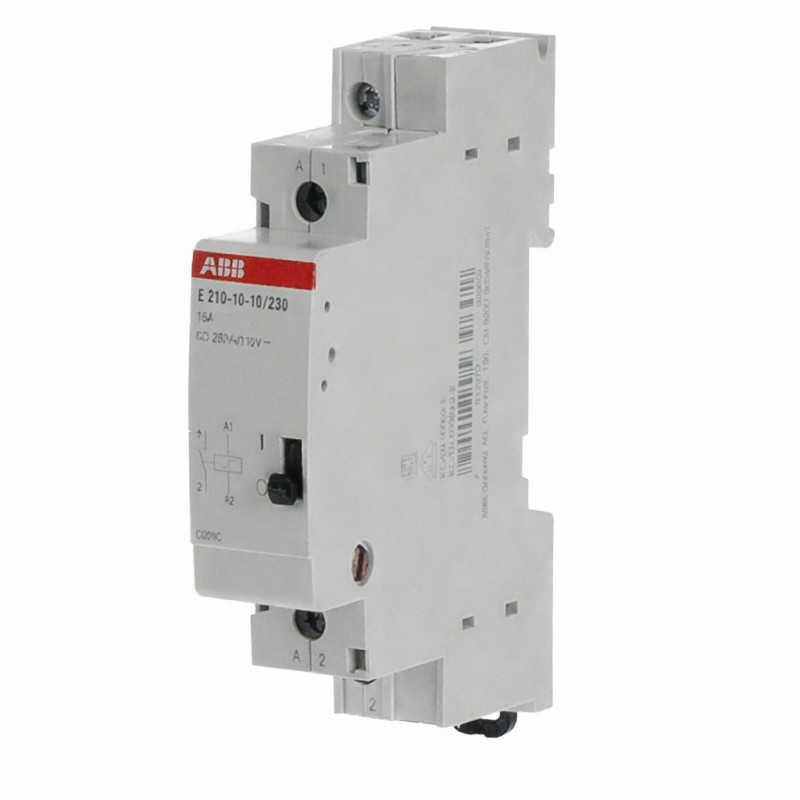

Front lever: manual control and contact status at a glance

A key advantage in installation and maintenance is the front lever: it allows manual operation of the relay when necessary and clearly indicates the status of the contacts. This function is useful for quick tests in the panel and for checks during technical interventions, improving operational convenience and reducing diagnosis times.

DIN rail installation and compact dimensions

Designed for modular electrical panels, the ABB E290 step relay is installed on a DIN rail and occupies only 1 module (18 mm), optimizing space. The compact dimensions (85 mm height, 62 mm depth) and the light grey finish RAL 7035 make it perfectly integrable into any panel. The wide connection capacity (solid conductors up to 10 mm², flexible with terminal up to 6 mm²) facilitates neat and safe wiring.

ELECTRICAL DATA
Supply voltage 207 … 253 V AC
Rated insulation voltage (Ui) 230 V AC / 110 V DC
Rated control voltage (Us) 250 V AC
Impulse withstand voltage (Uimp) 4 kV
Input voltage type AC
Rated current (In) 16 A
Main switch rated current 16 A
Maximum switching current (cos φ = 0.6) 16 A
Rated frequency 50 Hz
Total power loss 0.32 W
CONTROL AND CONTACT DATA
Rated control circuit voltage (Uc) 230 V AC / 110 V DC
Number of main NO contacts 1
Number of main NC contacts 0
Number of auxiliary NO contacts 0
Number of auxiliary NC contacts 0
Contact type Normally open (NO)
Response time < 3 ms
Minimum pulse duration 50 ms
COIL
Coil consumption @ 230 V AC 0.062 A
Coil consumption @ 110 V DC —
Average pull-in value (50 Hz) 0.057 A
CONNECTIONS
Rigid conductors 1 × 1 … 10 mm²
Flexible conductors 2 × 2.5 mm²
Flexible with ferrule 1 × 0.75 … 6 mm²
Flexible with cable lug 1 × 0.75 … 6 mm²
Tightening torque 1.2 … 1.5 N·m
GENERAL CHARACTERISTICS
Sound level (@ 1 m) 60 dB(A)
Colour Light grey (RAL 7035)
ENVIRONMENTAL DATA
Operating temperature -25 … +55 °C
Storage temperature -40 … +70 °C
DIMENSIONS AND WEIGHT
Number of modules 1
Width 18 mm
Height 85 mm
Depth 62 mm
Integrated depth (t2) 68 mm
Net weight 110 g

There are no reviews

Data sheet

Type:
Impulse relays
Voltage:
230VAC
Amps:
16A
