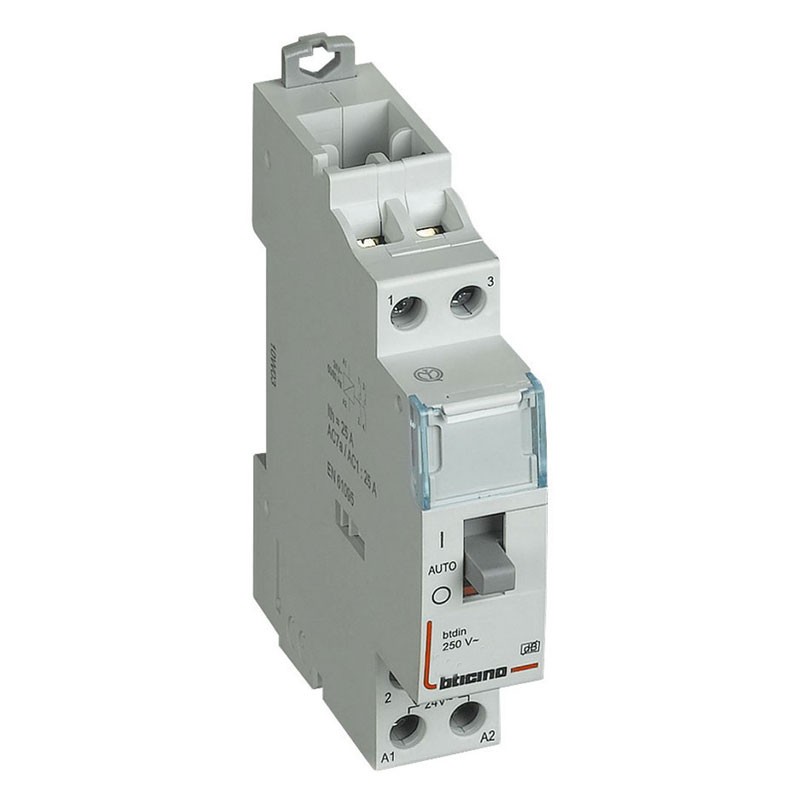

Bticino Btdin 16A 230 Vac Monostable Relay 1 NO + 1 NC IP20 1M FM1AC1N230M
BTI FM1AC1N230M
8012199957692
Bticino Btdin monostable relay, reliability and versatility for civil and industrial systems, with the following features:
-
Rated current: 16 A
-
Rated voltage: 230 Vac
-
Contacts: 1 normal open + 1 normal closed (1 NO + 1 NC)
-
Modules: 1
-
Degree of protection: IP20 for installation from electrical panels
-
Dimensions: 83x17.8x66 mm (H-L-P)
-
Cable section up to: 4 sq. mm, ideal for robust connections
€47.67
Items Available: 7
Bticino relay high electrical performance
Bticino's monostable relay, handles currents up to 16 A at 230 Vac, making it suitable for a variety of applications, including light motors, heating, ventilation, and resistive or inductive loads. With its double contact 1 NO + 1 NC, it allows versatile implementation of switching and signaling functions for both activation and deactivation scenarios.
Modular design and DIN rail mounting
The module occupies only one DIN module (17.8 mm), ideal for compact switchboards. Mounting on 35 mm DIN rail is quick and easy, while the shallow depth (66 mm) allows installation even in tight spaces without sacrificing build quality.
Robust construction and safety
IP20 protection complying with CE standards, ideal for installation in residential and industrial switchboards. The relay withstands moderate shock and vibration, and the contacts are designed for a high number of cyclic operations, ensuring reliability over time.
Reliable and flexible connections
The module is equipped with screw terminals for conductors up to 4 sq. mm, supporting wiring even with large cross sections. The separate connection matrix ensures neat and secure installation, which is essential for professional installations.
Recommended areas of use
-
Home automation: management of lighting systems, shutters, solenoid valves
-
Motor control: pump, fan, air conditioning unit
-
Signaling systems: used in conjunction with visual or audible signalers by exploiting NC/NO contact
-
Distribution boards: for activation of periodic or personal loads
Integration into civil and industrial systems: due to Bticino compatibility, easily integrates into multifunction Btdin systems.
Technical Specifications Bticino Monostable Relay
| Type | Monostable relay |
|---|---|
| Rated voltage Vn | 230 Vac |
| Rated current In | 16 A |
| Contact configuration | 1 NO + 1 NC |
| Modules | 1 DIN module |
| Degree of protection | IP20 |
| Cable section | Up to 4 sq. mm |
| Mounting | 35 mm DIN rail |
| Standards | CE, IMQ (Italy) |
There are no reviews
Data sheet
- Type: Impulse relays
- Voltage: 230VAC
- Amps: 16A
