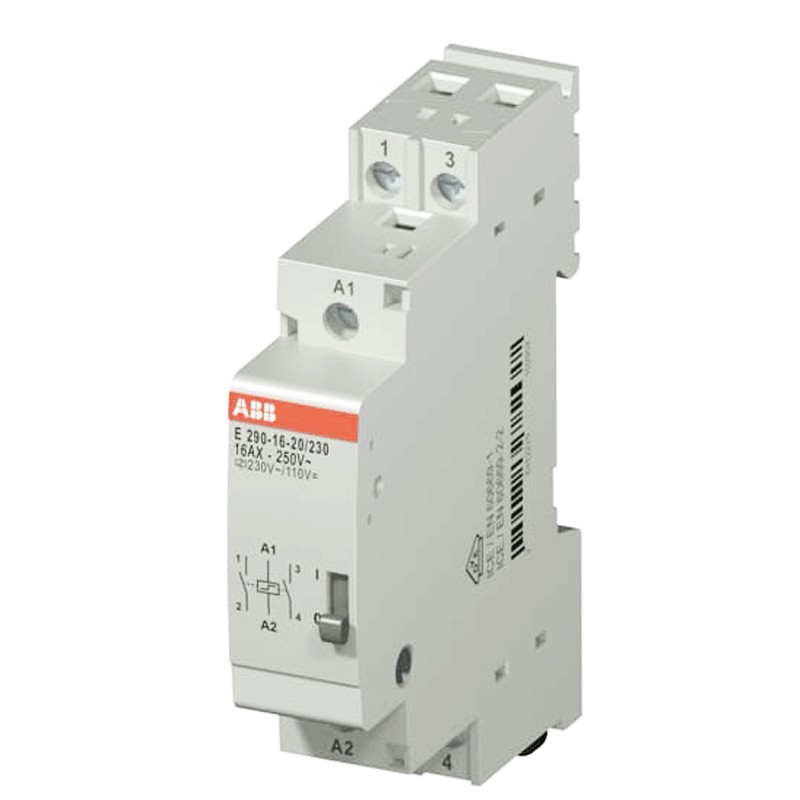

ABB Stepper Relay DIN Rail Switch 16A 250V M093972


ABB M093972 7612270939725

ABB step-by-step relays with the following characteristics:

  • Rated control circuit voltage (Uc) 230 Vac - 110 V DC
  • Rated control supply voltage (Us) 230 Vac - 110 V DC
  • Rated current (In) 16 A
  • Rated frequency (f) 50 Hz
  • Rated impulse withstand voltage (Uimp) 4 kV
  • Rated insulation voltage (Ui) 230 Vac - 110 V DC
  • Rated operating voltage 250 Vac
  • Tightening torque 1.2 - 1.5 Nm
  • Colour grey
  • Mounting type DIN rail
Request info about this product

ABB Stepper Relay DIN Rail Switch 16A 250V M093972

€26.63
€26.63

ABB Stepper Relay DIN Rail Switch 16A 250V M093972

€26.63
Tax included
klarna Pay in installments with Klarna
qty

ABB Stepper Relay DIN Rail Switch 16A 250V M093972

€26.63

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

This product allows contacts to be switched with each impulse sent to the coil by means of normally open pushbuttons and is mainly used to control lamps from one or more points.



Equipped with a front lever on the product to be used for manual operation, which also indicates the status of the contacts.


Thermal overload relays and overload relays are electromechanical protection devices for the main circuit. They offer safe motor protection in the event of overload or phase loss.



Features:

  • Abb series
  • Rated control circuit voltage (Uc) 230 Vac - 110 V DC
  • Rated control supply voltage (Us) 230 Vac - 110 V DC
  • Rated current (In) 16A
  • Rated frequency (f) 50 Hz
  • Rated impulse withstand voltage (Uimp) 4 kV
  • Rated insulation voltage (Ui) 230 Vac - 110 V DC
  • Rated operating voltage 250 Vac
  • Noise level dB (A) - (@distance 1 m) 60 dB
  • Supply voltage 207...253 Vac
  • Tightening torque 1.2 - 1.5 Nm
  • Power loss 0.64W
  • Colour grey
  • Mounting type DIN rail
  • Number of NC auxiliary contacts 0
  • Number of NO auxiliary contacts 0
  • Number of NC main contacts 0
  • Number of NO main contacts 2
  • Response time <3 ms
  • Rated short-circuit current (SCCR) 3 kA
  • Ambient temperature Operating -25/+55 °C
  • Ambient temperature in storage -40/+70 °C
  • Width 18 mm
  • Height 85 mm
  • Length 62 mm
  • Depth 62 mm
  • Net weight 122 grams

Data sheet

Type:
Impulse relays
Voltage:
250 Vac
Amps:
16A
