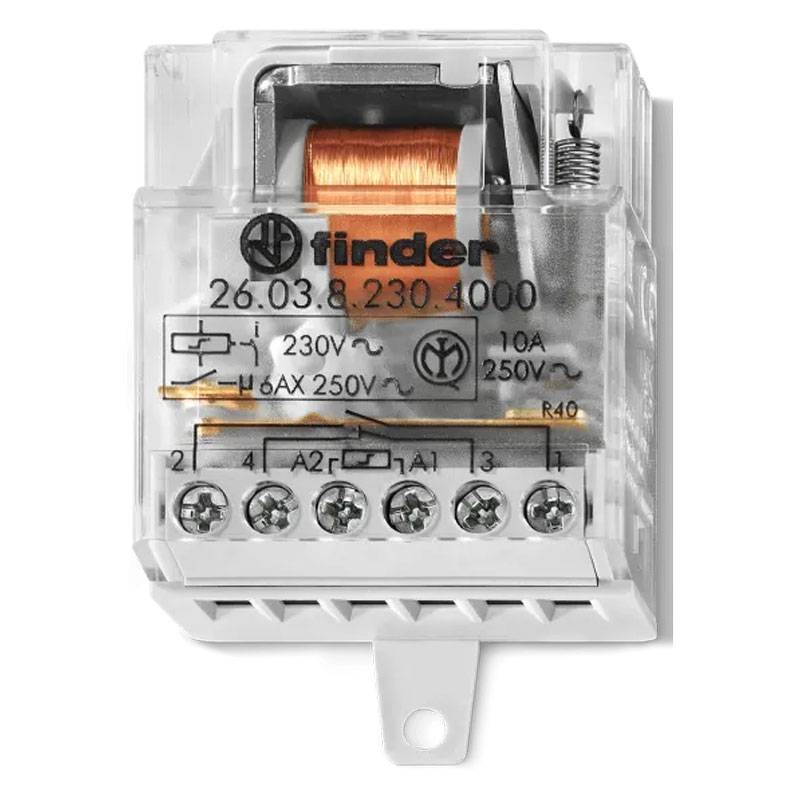

Finder step impulse relay 10A 230VAC 1NO+1NC 260382304000
FIN 260382304000
8012823460482
Finder impulse relay 260382304000 with 1NO + 1NC contacts, 10A, 230V AC coil. Ideal for stepping and state reversal commands in complex electrical systems.
-
Electromechanical impulse relay with 1NO + 1NC diverter switch.
-
Coil voltage: 230V AC (range 184 253 V)
-
Rated current: 10 A
-
Rated power: 4.8 VA absorption 20 mA
-
AgSnO contacts for high conductivity and durability
-
False-pole mounting with bush terminals
-
Operating temperature: -40 °C / +40 °C.
€12.89
Out of stock
Incoming
Finder impulse relay with switched contacts for maximum versatility
The Finder 260382304000 impulse relay is the ideal solution for managing circuits via electrical pulses, offering a diverter configuration (1NO + 1NC) that allows state reversal on two outputs. Because of this feature, the relay is perfect for applications where it is necessary to open one circuit while closing another, providing maximum control in automation, lighting or signaling systems.
Reliable operation at 230 V AC
The relay is powered by a 230 V AC coil, with an operating range of 184 to 253 V, compatible with standard line voltage. Low consumption of only 20 mA and power consumption of 4.8 VA ensure efficient and stable operation over time.
AgSnO contacts: quality and long service life
Contacts made of AgSnO (silver-tin oxide) ensure excellent electrical conductivity, Arc resistance and longer operating life, even under inductive loads or frequent switching cycles. The relay supports loads up to 10 A on each contact, rated at 230 V AC.
Quick and compact installation
With its compact size (35.2 x 40.7 x 22.7 mm) and provision for mounting as a false pole, the relay integrates easily into electrical panels even in small spaces. Socket terminals make installation quick and safe, ideal for both new and existing system applications.
Ideal for civil, industrial and home automation systems
The Finder 260382304000 is particularly suitable for installations where advanced load control is required, such as in lighting systems with reverse control, management of light signals, or in home automation or industrial installations that require a relay with switched contacts.
| Feature | Value |
|---|---|
| Product code | 260382304000 |
| Type | Electromechanical impulse relay |
| Contact configuration | 1 NO + 1 NC (diverter) |
| Contacts rated current | 10 A |
| Coil voltage | 230 V AC (184 - 253 V) |
| Power consumption | 4.8 VA |
| Current consumption | 20 mA |
| Coil resistance | 6250 Ω |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Step relays
- Installation: Recessed
