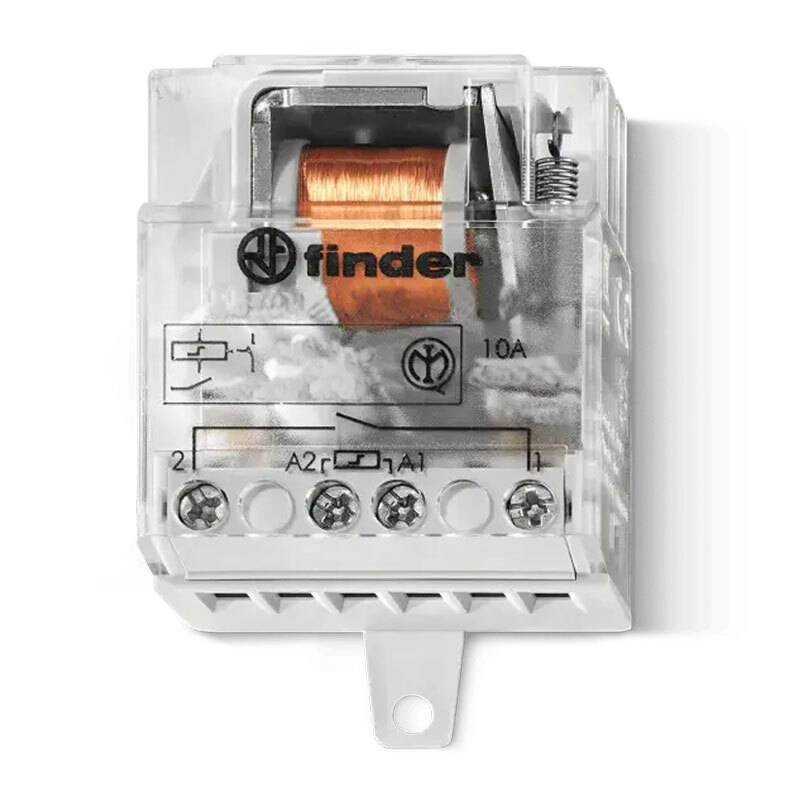

Finder step impulse relay 10A 12VAC 2NO 260480124000
FIN 260480124000
8012823460505
Finder impulse relay 260480124000 at 12V AC, 10A, with 4-sequence switch and 2 NO contacts. Ideal for multiple switching cycles in civil and industrial installations.
-
Stepper relay with 4-sequence switch.
-
2 normally open contacts (2NO)
-
AC 12 V coil (range 9.6 13.2 V)
-
Rated current: 10 A
-
AgSnO contacts for high reliability
-
Socket terminals, installation as a false pole
-
Operating temperature: -40 °C to +40 °C.
€11.26
Out of stock
Incoming
Finder 4-sequence impulse relay for advanced applications
The Finder 260480124000 is an electromechanical pulse relay designed for applications where multiple states or switching cycles need to be handled, due to the presence of a 4-sequence switch. This feature makes it perfect for sequential control of multiple circuits, alternating lights, or devices with cyclic operation.
12V AC power supply: safe and versatile
The device is powered through a 12 V AC coil, with an operating range of 9.6 to 13.2 V, ensuring stable operation even with slight voltage fluctuations. The low power consumption (4.8 VA) and current of 420 mA make it an efficient and reliable product.
Dual NO contacts for separate commands
With 2 normally open (2NO) contacts, the relay allows two independent circuits to be operated alternately or synchronously according to the set sequence. The AgSnO contacts ensure high resistance to electrical wear and a long service life even under harsh working conditions.
Compact and simple installation
The compact body (35.2 x 40.7 x 22.7 mm) allows for false-pole installation, making it easy to integrate into any standard electrical panel. Socket terminals allow quick, safe and tidy wiring, reducing assembly time.
Ideal for cyclic systems, lighting and automation
With its 4-sequence switch and 2NO configuration, the Finder 260480124000 relay is perfect for cyclically managed lighting systems, simple automations, ventilation systems or multiple controls in civil, tertiary and industrial applications.
| Feature | Value |
|---|---|
| Product code | 260480124000 |
| Type | Electromechanical pulse relay with switch |
| Sequences | 4 |
| Contact configuration | 2 NO (normally open) |
| Contacts rated current | 10 A |
| Coil voltage | 12 V AC (9.6 TO 13.2 V) |
| Power consumption | 4.8 VA |
| Current consumption | 420 mA |
| Coil resistance | 15 Ω |
| Contact material | AgSnO |
| Rated contact voltage | 230 V AC |
| Installation type | False pole, bush terminals |
| Operating temperature | -40 °C TO +40 °C |
| Dimensions | 35.2 × 40.7 × 22.7 mm |
There are no reviews
Data sheet
- Type: Impulse relays
- Model: Step relays
- Installation: Recessed
