Finder relay evo switch 230V 27218230
FIN 272182300000
8012823352268

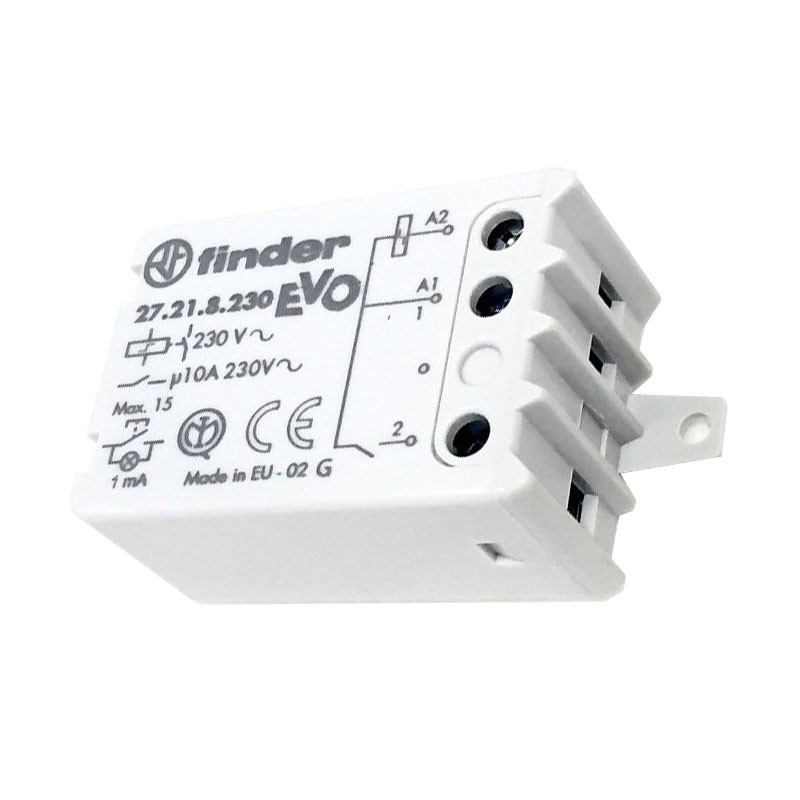

Finder 27 series EVO impulse (stepper) relay/switch, with the following features:
- Nominal voltage/Max switching voltage in AC 230V
- Rated/Max instantaneous current 10/20A
- Minimum switching current mW (V/mA) 10
- 1 or 2 contacts with coil power limiter
- Rated load in AC1:2300 VA
- Rated load in AC15 (230 V AC) 500VA
![](https://www.elettronew.com/43660-large_default/finder-relay-evo-switch-230v-27218230.jpg)
Finder relay evo switch 230V 27218230
€8.01
€8.01
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 8950
Features:
- Finder Series
- Operating range AC 50Hz/AC 60Hz - (0.8 ... 1.1)UN/(0.85 ... 1.1)UN
- Electrical endurance AC/DC 300 - 103
- Electrical endurance at rated load in AC1 cycles 100 - 10
- Number of connectable illuminated pushbuttons (≤1mA) 15
- Min/Max control pulse duration 0.1s/continuous
- Ambient temperature: -40...+40°C
- IP20 degree of protection
- Connection with 15 illuminated pushbuttons without capacitor
- Coil power limiter
- Socket terminals
- Cadmium-free contacts
- Italian patent
- Standard contacts material AgNi

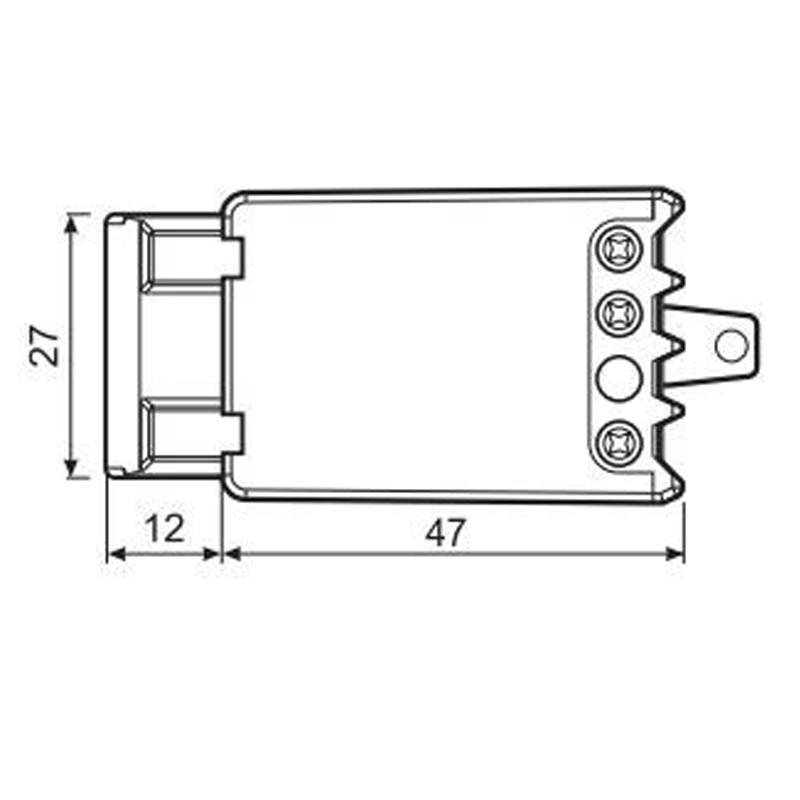

- Dimensions: 47x27x12
Lamp capacity
- incandescence 1000W
- 360W rephased fluorescent
- fluorescent not rephased 500W
- halogen 800W
Data sheet
- Type:
- Impulse relays
- Installation:
- Recessed
