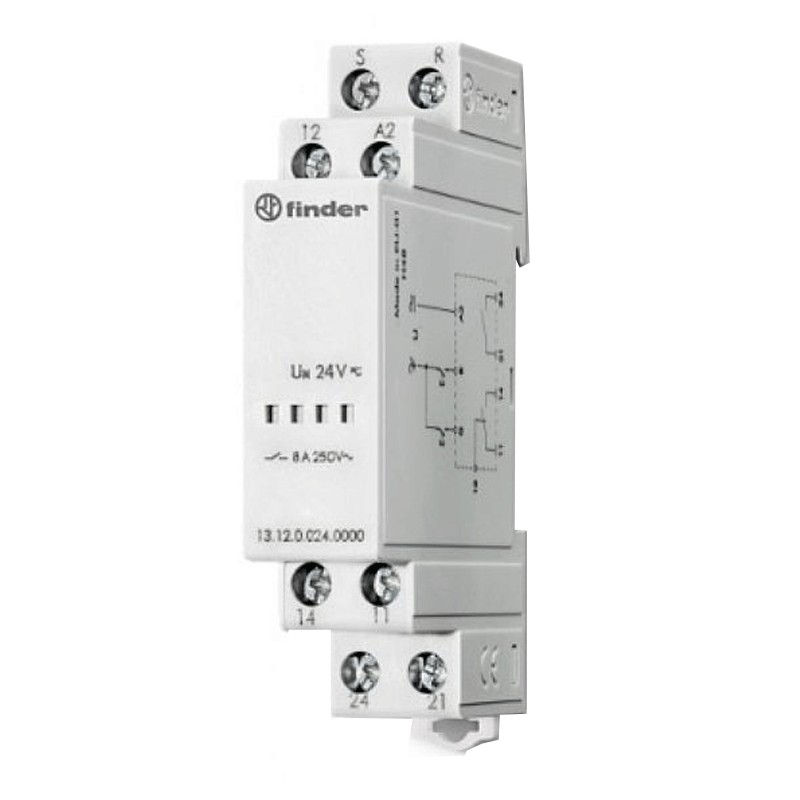

Finder bistable relay with reset command 24V 131200240000


FIN 131200240000 8012823358383

Bistable call relay with Finder reset command, with the following features:

  • Nominal/Max switching voltage 250/400V AC
  • Nominal supply voltage (UN) AC/DC (50/60 Hz) 12/24V
  • Nominal AC/DC power VA (50 Hz): 3/2.5
  • Nominal current/Max instantaneous current: 8/15 A
  • Contact configuration - 1 CO + 1 NO
  • Call relay with reset command
  • 35 mm bar mounting (EN 60715)
  • Width 17.5 mm
Request info about this product

Finder bistable relay with reset command 24V 131200240000

€44.49
€44.49

Finder bistable relay with reset command 24V 131200240000

€44.49
Tax included
klarna Pay in installments with Klarna
qty

Finder bistable relay with reset command 24V 131200240000

€44.49

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Particularly suitable for applications in the tertiary sector (public bathrooms, hospitals, hotels).

Features:

  • Finder Series
  • Minimum switching load mW (V/mA) 300 (5/5)
  • Standard contact material AgCdO
  • Operating range AC/DC (50 Hz) (0.8...1.1)UN
  • Rated load in AC1 2000VA
  • Rated load in AC15 (230 V AC) 400VA
  • Electrical service life at rated load in AC1 cycles: 100 - 10
  • Max. switching pulse duration: 10 s (minimum 100 ms)
  • Dielectric strength between: open contacts 1000V AC - supply and contacts 2000V AC
  • Ambient temperature °C: -10...+60
  • Protection category IP20

Lamp capacity

  • incandescent/halogen 230 V 800W
  • fluorescent with electronic ballast 300W
  • Fluorescent with rephased electromagnetic ballast 250W
  • CFL 150W
  • LED 230 V 150W
  • halogen or BT LED with electronic transformer 150W
  • halogen or BT LED with electromagnetic transformer 300W

Data sheet

Type:
Impulse relays
Model:
Bistable
Installation:
Din
