BM preinsulated terminal lug PVC 2.5mm diameter 5 100 pieces 00226
BMM 00226
8013629002265

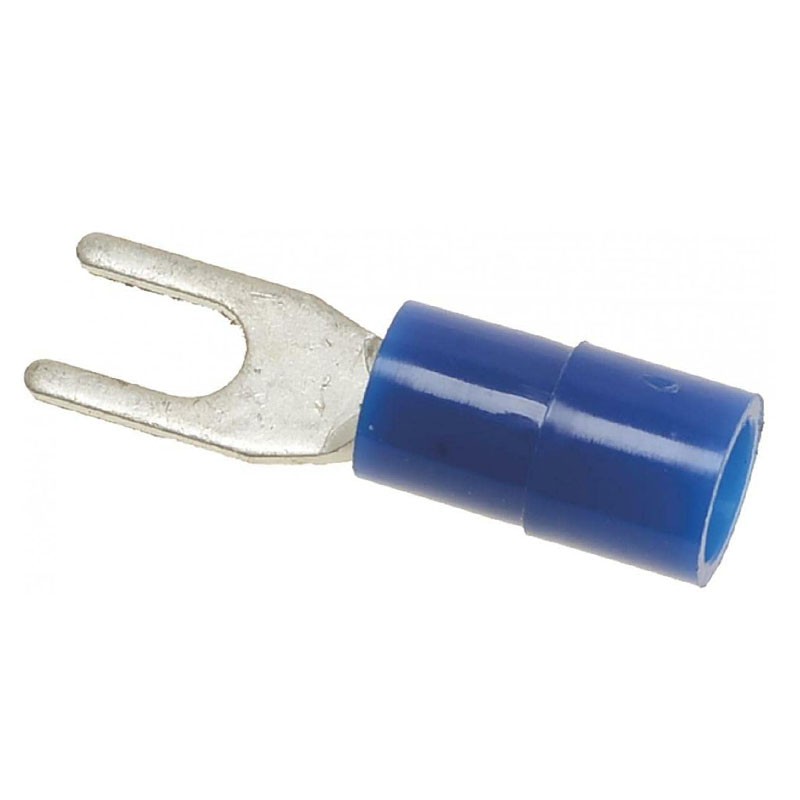

BM terminal lug for PVC pre-insulated copper conductors from sheet/fork, with the following characteristics:
- Terminal material: tinned copper
- Insulation material: polyvinyl chloride (PVC)
- Self-extinguishing level of the insulation: UL 94 V0
- Rated voltage: 300V max
- Operating temperature: 75°C max
- Reference standards: UL 486 A-B
- Color: blue
- Cross-section: 1.5 to 2.5 mm²
- For screw diameter (mm): 5
- Cross section:(16 - 14) AWG/MCM

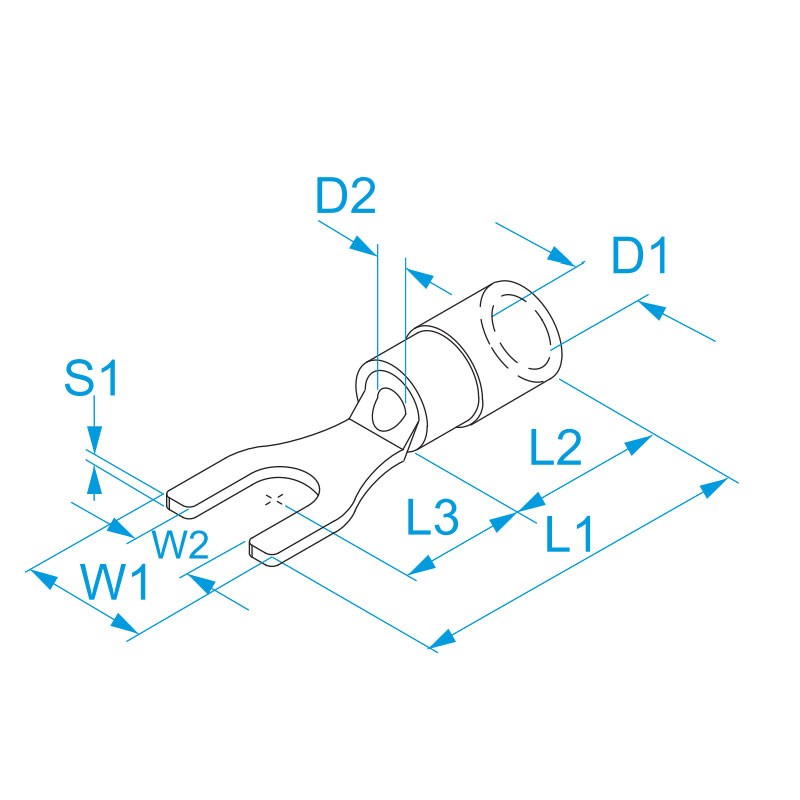

- Dimensions: W1 (mm) W2 (mm) L1 (mm) L2 (mm) L3 (mm) D1 (mm) D2 (mm) S1 (mm): 9.1 5.2 25 11 9.5 4.8 2.45 0.8
Pack of 100 pieces.
€6.72
Items Available: 48
Data sheet
- Diameter: 5mm
- Type: Terminal lugs
- Cross-Section: 2.5 mmq
