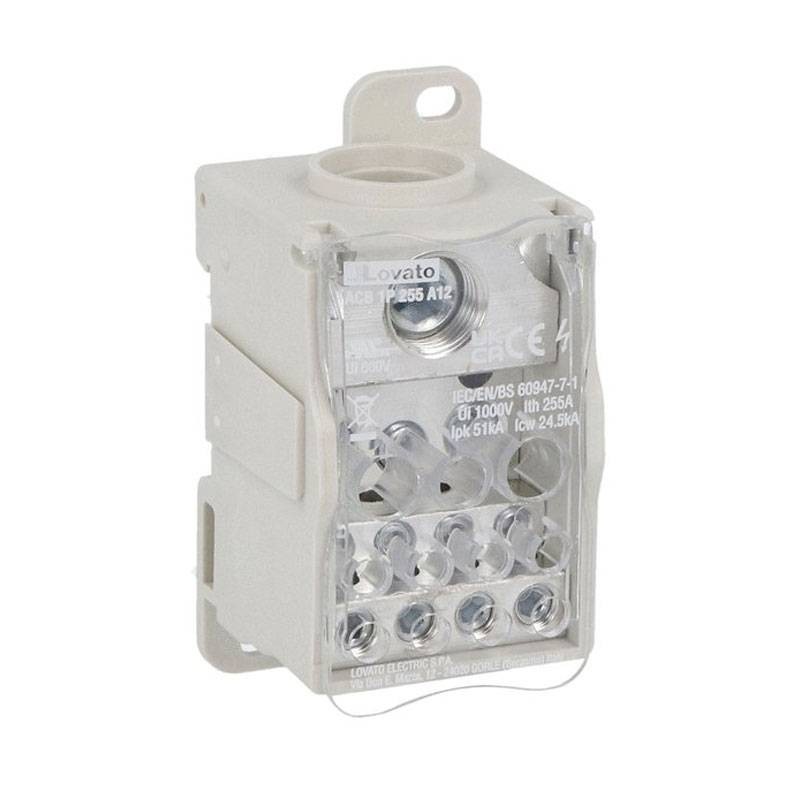

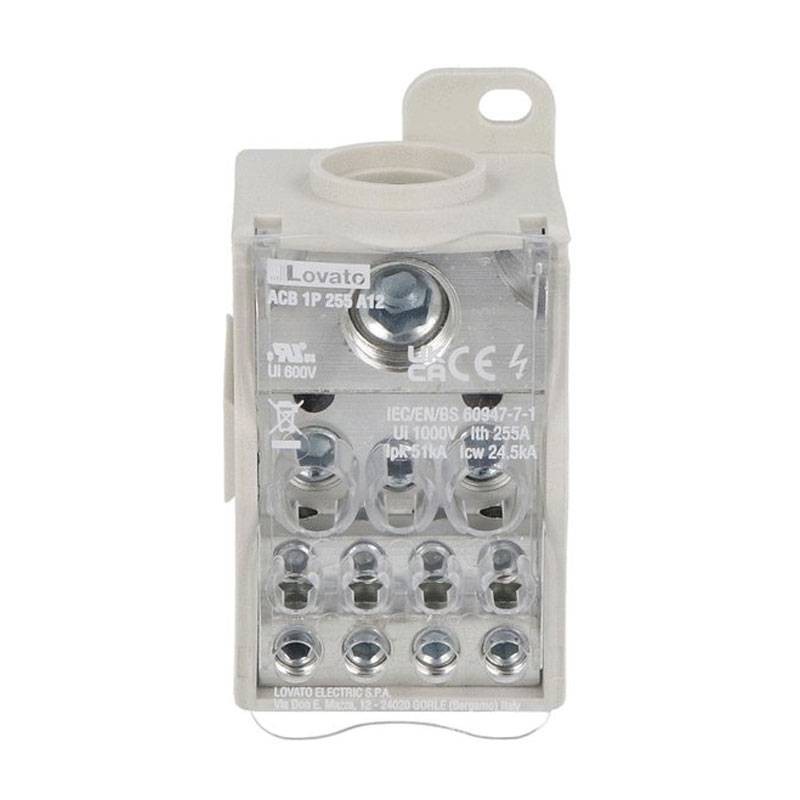

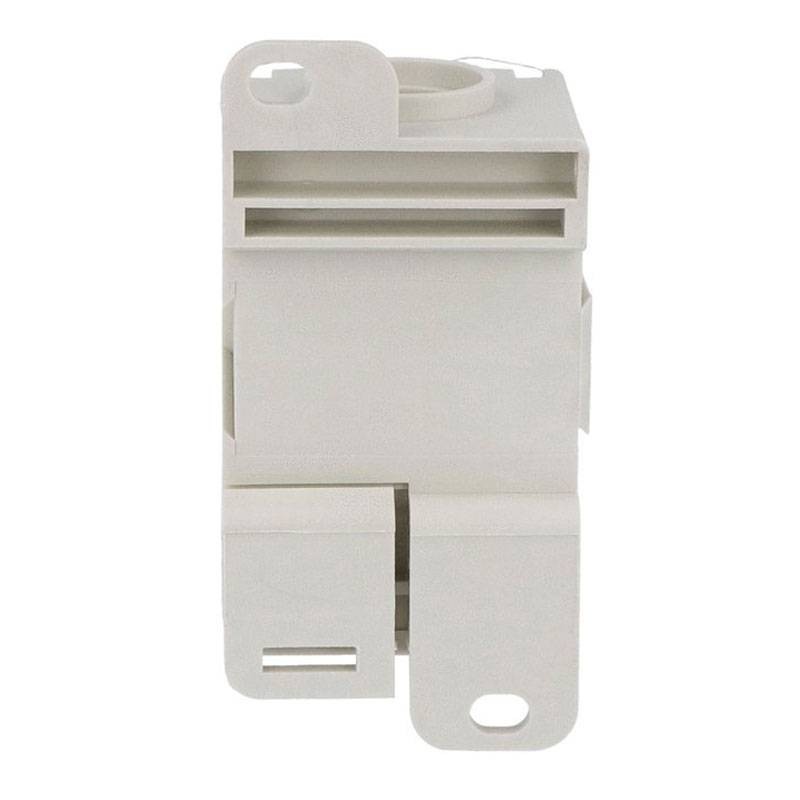

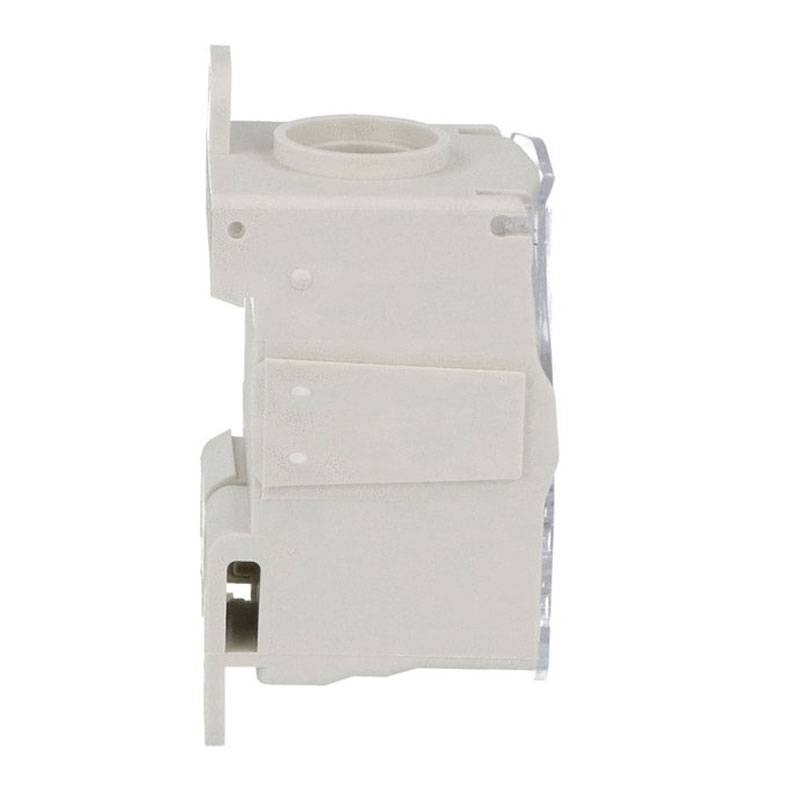

Lovato Power distribution block 250A 1P 12 terminals ACB1P255A12

Lovato
Lovato
LOV ACB1P255A12 8013975320303

Lovato single-pole Power distribution block:



  • Rated current In 250A
  • 1 pole
  • 12 terminals
  • Rated insulation voltage Ui V 1000
  • Conventional free air thermal current Ith IEC A 255
  • Rated peak current Ipk kA 51
  • Rated short-time withstand current Icw 1s kA 24.5
  • Short-circuit current (UL) kA 10
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato Power distribution block 250A 1P 12 terminals ACB1P255A12
€32.41
€32.41

€32.41
Tax included
Calculate shipping cost
Items Available: 6
Further availability of the manufacturer
€32.41

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Connections:

  • Terminal hole diameter_Option 1 mm 1x16mm
  • Conductor cross section_Option 1 mm2 35120 AWG 6...250 Kcmil
  • Max tightening torque_Option 1 Nm 19 Ibin 168
  • Terminal hole diameter_Option 2 mm 2x9.5mm
  • Conductor cross section_Option 2 mm2 635 AWG 14...1
  • Max tightening torque_Option 2 Nm 4.4 Ibin 39
  • Terminal hole diameter_Option 3 mm 5x7.5mm
  • Conductor cross section_Option 3 mm2 2.516 AWG 14...4
  • Max tightening torque_Option 3 Nm 2.7 Ibin 24
  • Terminal hole diameter_Option 4 mm 4x6mm
  • Conductor cross section_Option 4 mm2 2.5...10 AWG 14...6
  • Max tightening torque_Option 4 Nm 2.7 Ibin 24




Mechanical characteristics:

  • Mounting position Normal Vertical plane
  • Fastening Screw / DIN rail 35mm
  • Metric Allen keys mm 3-4-5-8
  • Product weight g 405
  • IP20 degree of protection on the front

There are no reviews

Data sheet

Type:
Distributors
Voltage:
1000V
Poles:
1P
Amps:
250A
