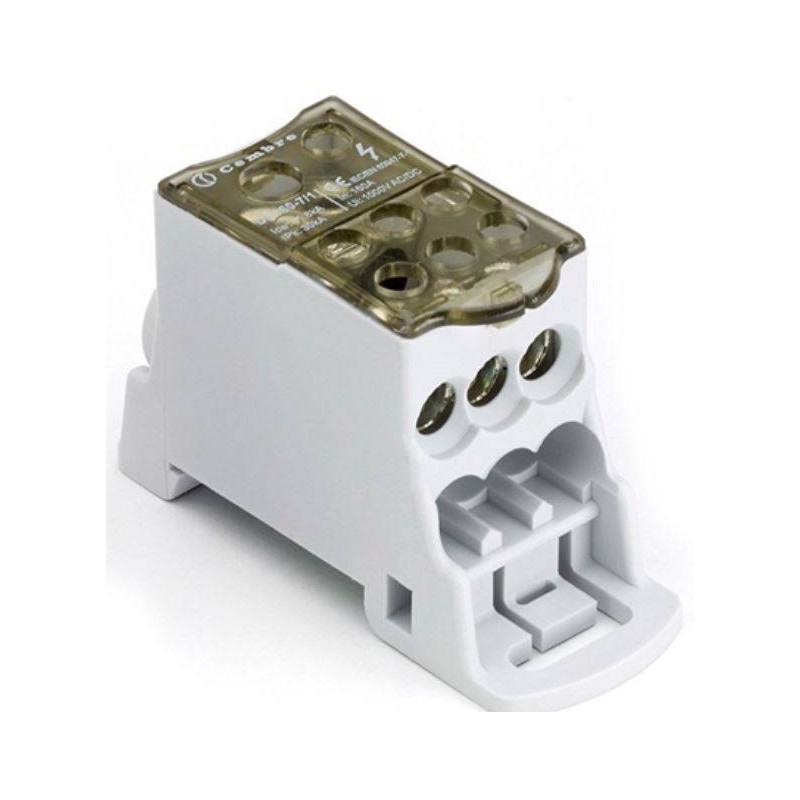

Cembre Dblock 125A 7-way single-pole distributor DB125-7/1N
CEM DB125-7/1N
8051316038043
Cembre DB125-7/1N 125A single-pole distributor: 7-way with direct clamping and IP20 protection for tidy and safe switchboards.
-
Rated current: 125 A
-
Number of poles: 1 (unipolar)
-
Number of total ways: 7
-
Input holes: 1x Ø10 mm
-
Output holes: 7x Ø6.8 mm
-
Input connection: 1x(10÷35 mm² R/F)
-
Output connection: 6x(2.5÷16 mm² R/F) - 1x(6÷16 mm² R/F)
-
Short duration current (Icw): 4.2 kA
-
Peak current (IPK): 30 kA
-
Clamping geometry: hexagon socket screw
-
Housing: polycarbonate with PA 6.6 elements
-
Degree of protection: IP20
-
Rated voltage: 1000 V
-
Dimensions: 77x29x46 mm (HxWxD)
-
Installation: 35mm DIN rail or panel mounting.
€15.13
Items Available: 11
: 4
Cembre single-pole distributor for fast and compact electrical connections
The Cembre DB125-7/1N single-pole distributor is a compact, high-performance solution for distributing electrical power in control and distribution boards. Equipped with 7 output ways and a current rating of 125 A, it enables neat and efficient wiring in small spaces.
Direct-clamp terminals with high reliability
With direct-tightening terminals and captive screws already loosened, installation time is greatly reduced. Tapered holes facilitate the introduction of conductors, ensuring accuracy and safety. Electrolytically tinned brass terminals ensure high conductivity and protection against corrosion.
Flexible and secure installation
The polycarbonate housing and PA 6.6 components provide mechanical and thermal resistance, while the IP20 rating ensures adequate insulation inside the switchboard. Convenient 35 mm DIN rail mounting or screw-on panel mounting makes the device extremely versatile.
| Feature | Detail |
|---|---|
| Product code. | DB125-7/1N |
| Brand | Cembre |
| Type | Single-pole distributor |
| Rated current (In) | 125 A |
| Peak current (IPK) | 30 kA |
| Short duration current (Icw) | 4.2 kA |
| Rated voltage | 1000 V |
| Number of ways | 7 |
| Input hole | 1 × Ø10 mm |
| Output holes | 7 × Ø6.8 mm |
| Input connection | 1 × (10÷35 mm² R/F) |
| Output connection | 6 × (2.5÷16 mm² R/F) 1 × (6÷16 mm² R/F) |
| Materials | Tin-plated brass, polycarbonate housing + PA 6.6 |
| Clamping geometry | Hexagon socket screw |
| Installation | 35 mm DIN rail or screw fixing |
| Degree of protection | IP20 |
| Dimensions | 77 mm (h) × 29 mm (w) × 46 mm (d) |
| Applications | Electrical panels, automation, LV distribution |
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 1000V
- Poles: 1P
- Amps: 125A
