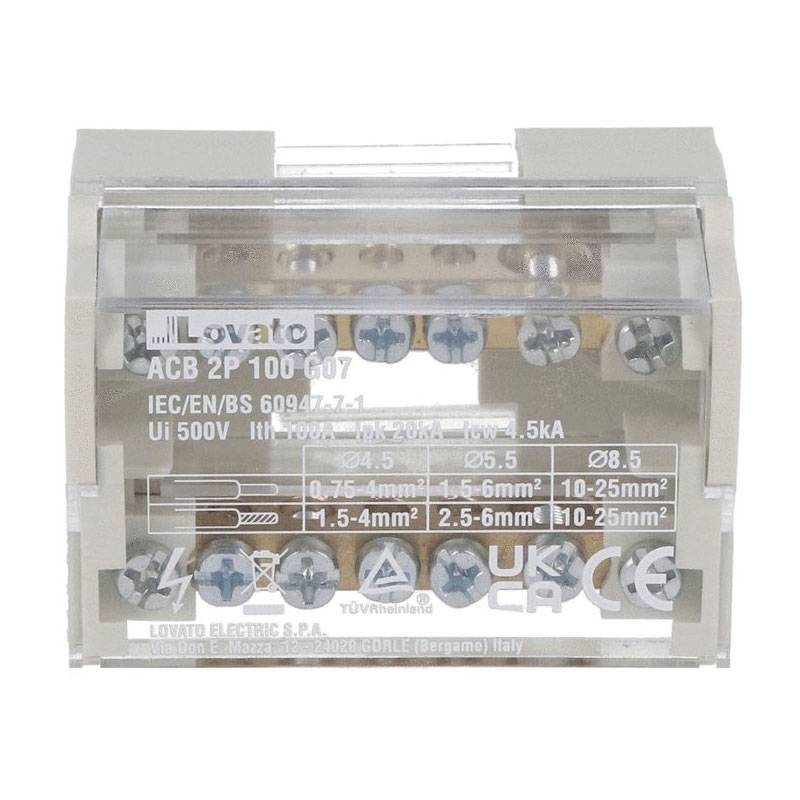

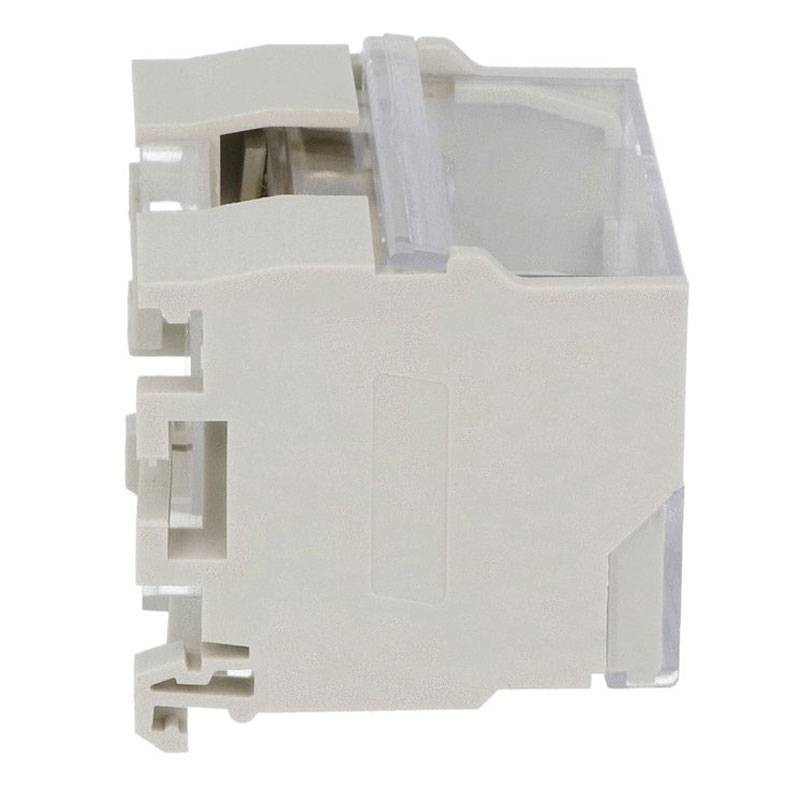

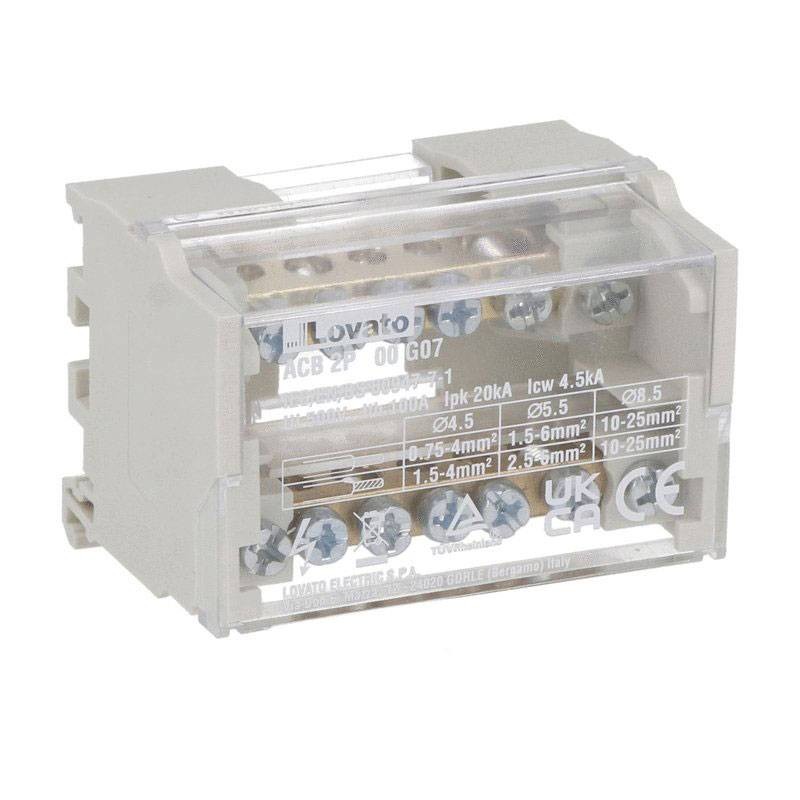

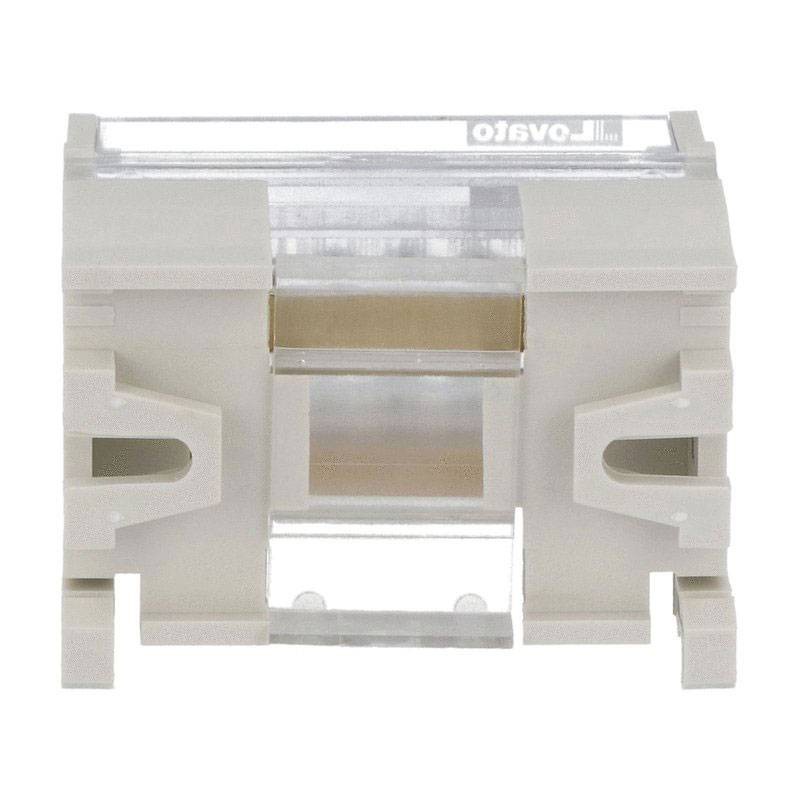

Lovato 100A 2P 7 Terminal Power distribution block ACB2P100G07
LOV ACB2P100G07
8013975320372
Lovato 2-pole Power distribution block:
- Rated current In 100A
- 2 Poles
- 7 terminals
- Rated insulation voltage Ui V 500
- Conventional free air thermal current Ith IEC A 100
- Rated peak current Ipk kA 20
- Rated short-time withstand current Icw 1s kA 4.5.
€6.31
Items Available: 46
: 3
Connections:
- Terminal hole diameter_Option 1 mm 1x8.5mm
- Conductor cross section_Option 1 mm2 1025
- Max tightening torque_Option 1 Nm 3 Ibin 27
- Terminal hole diameter_Option 2 mm 3x5.5mm
- Conductor section_Option 2 mm2 2.56
- Tightening torque Max_Option 2 Nm 3 Ibin 27
- Terminal hole diameter_Option 3 mm 3x4.5mm
- Conductor section_Option 3 mm2 1.54
- Tightening torque Max_Option 3 Nm 3 Ibin 27
Mechanical characteristics:
- Mounting position Normal Vertical plane
- Fastening Screw / DIN rail 35mm
- Phillips 2
- Product weight g 130
- IP20 degree of protection on the front
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 500V
- Poles: 2P
- Amps: 100A
