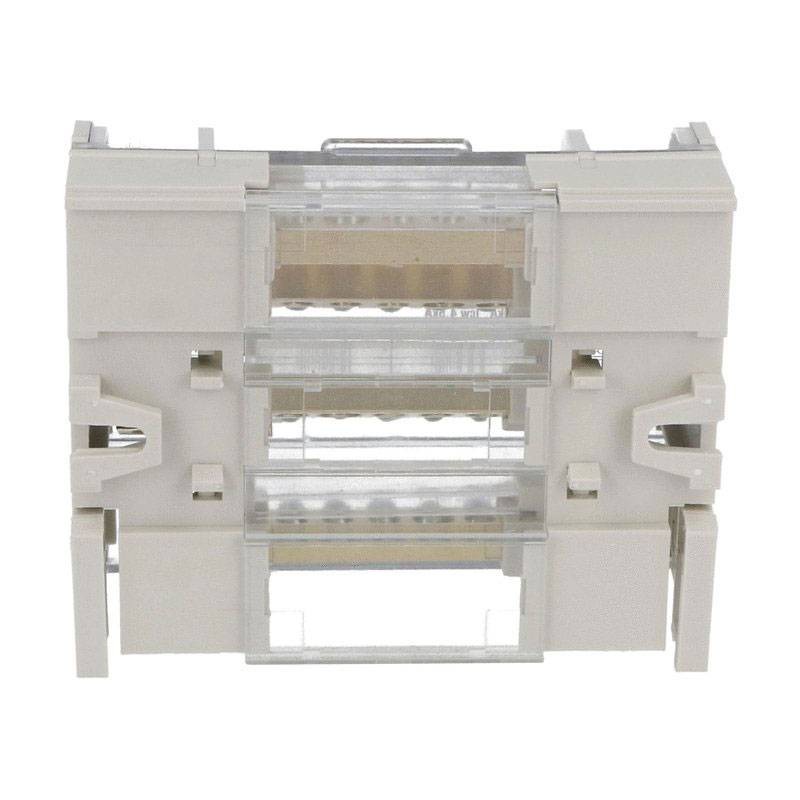

Lovato 125A 4P 7-terminal Power distribution block ACB4P125D07

Lovato
Lovato
LOV ACB4P125D07 8013975320334

Lovato four-pole Power distribution block:



  • Rated current In 125A
  • 4 Poles
  • 7 terminals
  • Rated insulation voltage Ui V 500
  • Conventional free air thermal current Ith IEC A 125
  • Rated peak current Ipk kA 20
  • Rated short-time withstand current Icw 1s kA 4.5.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato 125A 4P 7-terminal Power distribution block ACB4P125D07
€17.72
€17.72

€17.72
Tax included
Calculate shipping cost
Items Available: 15
Further availability of the manufacturer
€17.72

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Connections:

  • Terminal hole diameter_Option 1 mm 1x9mm
  • Conductor cross section_Option 1 mm2 1035
  • Max tightening torque_Option 1 Nm 7 Ibin 62
  • Terminal hole diameter_Option 2 mm 1x7.5mm
  • Conductor section_Option 2 mm2 1025
  • Tightening torque Max_Option 2 Nm 3 Ibin 27
  • Terminal hole diameter_Option 3 mm 5x5.3mm
  • Conductor cross section_Option 3 mm2 2.56
  • Tightening torque Max_Option 3 Nm 3 Ibin 27




Mounting position:

  • Normal Vertical plane Fixing Screw / DIN rail 35mm
  • Phillips 2
  • Product weight g 375
  • IP20 degree of protection at the front

There are no reviews

Data sheet

Type:
Distributors
Voltage:
500V
Poles:
4P
Amps:
125A
