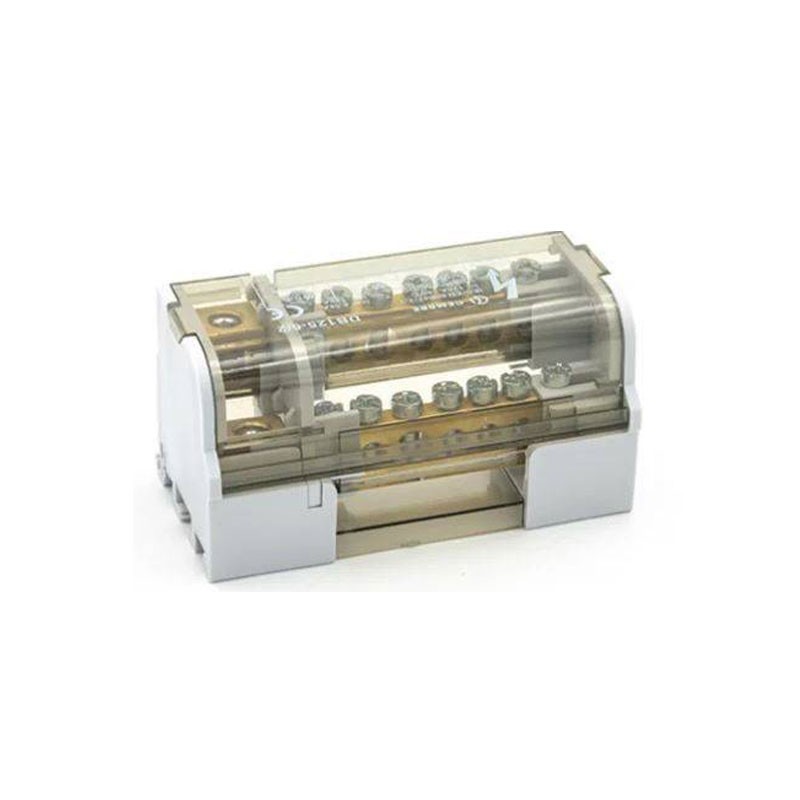

Cembre Dblock 125A 7-way bipolar distributor DB125-6/2
CEM DB125-6/2
8051316026071
Cembre DB125-6/2 125A double-pole distributor: 2-pole, 7-way, direct clamping and DIN rail attachment for neat and safe switchboards.
-
Rated current: 125 A
-
Number of poles: 2 (bipolar)
-
Total number of ways: 6 (5x 5.5 mm + 1x 7.5 mm)
-
Input: 1 hole 9.5 mm
-
Rated impulse voltage (UIMP): 690 V
-
Maximum peak current (IPK): 18 kA
-
Clamping: direct with pre-loosened captive screws
-
Holes: tapered for easy insertion of conductors
-
Terminals: brass for stable connections
-
Housing: polycarbonate + PA 6.6 elements
-
Installation: on 35 mm DIN rail or screw on panel.
€10.48
Items Available: 6
: 3
Cembre bipolar distributor: Safe and orderly wiring in electrical panels
The Cembre DB125-6/2 bipolar distributor is designed to make orderly and reliable connections within electrical control, distribution, and automation panels. Thanks to its compact design and functional output arrangement, it enables even power distribution, optimizing space and simplifying installation operations.
Direct clamping and simplified connection
The direct-tightening system with pre-alloyed galvanized steel captive screws enables quick and safe installation without the need for special tools. Tapered entry holes make it easy to insert conductors, while brass terminals ensure a durable electrical connection with minimal contact resistance.
Protection and mounting versatility
The distributor is protected by a rugged polycarbonate housing with structural elements made of PA 6.6, materials known for their mechanical and thermal resistance. Docking on 35 mm DIN rail or installation with screws on panel makes the DB125-6/2 extremely flexible, adapting to different system configurations.
| Feature | Detail |
|---|---|
| Product code | DB125-6/2 |
| Brand | Cembre |
| Type | 2-pole 2-pole distributor |
| Rated current | 125 A |
| Input | 1 hole dia. 9.5 mm |
| Outputs | 5 holes of Ø 5.5 mm; 1 hole of Ø 7.5 mm |
| Total number of ways | 6 |
| Pulse voltage (UIMP) | 690 V |
| Assumed peak current (IPK) | 18 kA |
| Connection | Direct clamping |
| Terminals | Brass |
| Screws | Captive, galvanized, pre-loosened |
| Housing | Polycarbonate + PA 6.6 |
| Installation | 35 mm DIN rail or screw fastening |
| Applications | Electrical panels, automation, LV distribution |
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 690V
- Poles: 2P
- Amps: 125A
