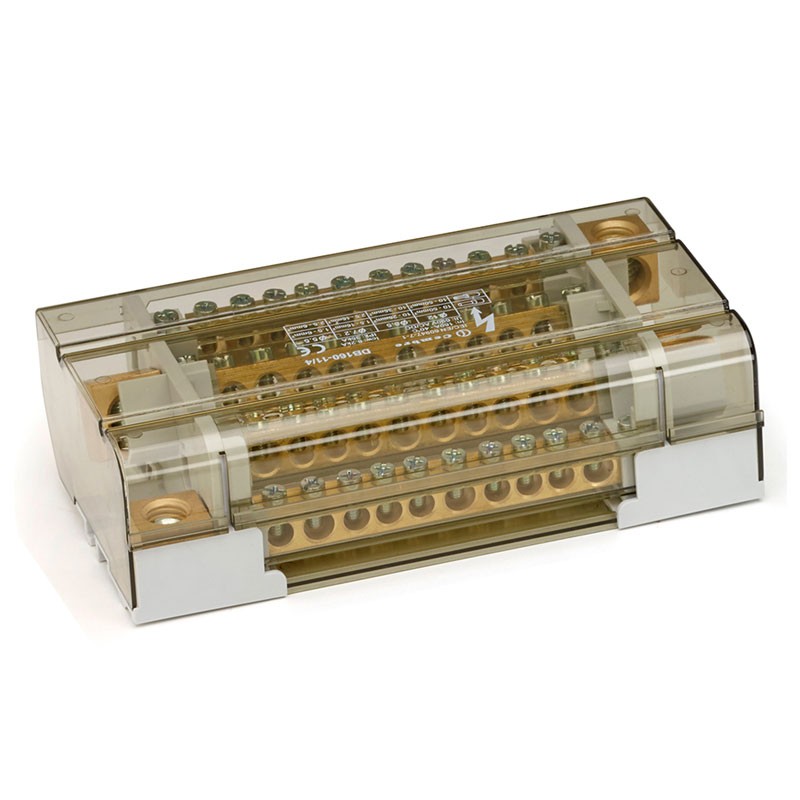

Tetrapolar distributor Cembre 160A 4 Poles 11 Holes DB160-11/4
CEM DB160-11/4
8051316010575
Cembre 160A 4 Poles Tetrapolar distributor with 1 input and 11 outputs (3+7+1).
€51.14
Items Available: 15
: 2
The wide range of connectable sections and the small dimensions make DBLOCK dividers ideal for wiring in control and distribution boards on 35 mm DIN rails or on panels using screws.
The inputs and outputs distribute the conductors evenly and tidily, making wiring and any subsequent work on all phases easier. Wiring is further facilitated by the input holes with conical invitation. The terminals guarantee excellent stability of the connection over time.
Nominal section mm2 rigid cable outputs:
- (3) 10÷35
- (7) 2,5÷16
- (1) 2,5÷6.
flexible cable:
- (3) 10÷25
- (7) 1,5÷16
- (1) 1,5÷6.
Characteristics:
- Rated voltage 690 V
- Rated current (In) 160 A
- Rated current (Icw) 8,2 kA
- Maximum peak current (Ipk) 25 kA
- DIN connection yes
- Height 50 mm
- Length 175 mm
- Width 96 mm
- Weight 738 g
- Material (Body) Polyamide PA6.6
- Material (Cover) Polycarbonate
- Material (Screws) Zinc plated steel
- Material (Clamps) Brass
- Class UL94 V0.
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 690V
- Poles: 4P
- Amps: 160A
