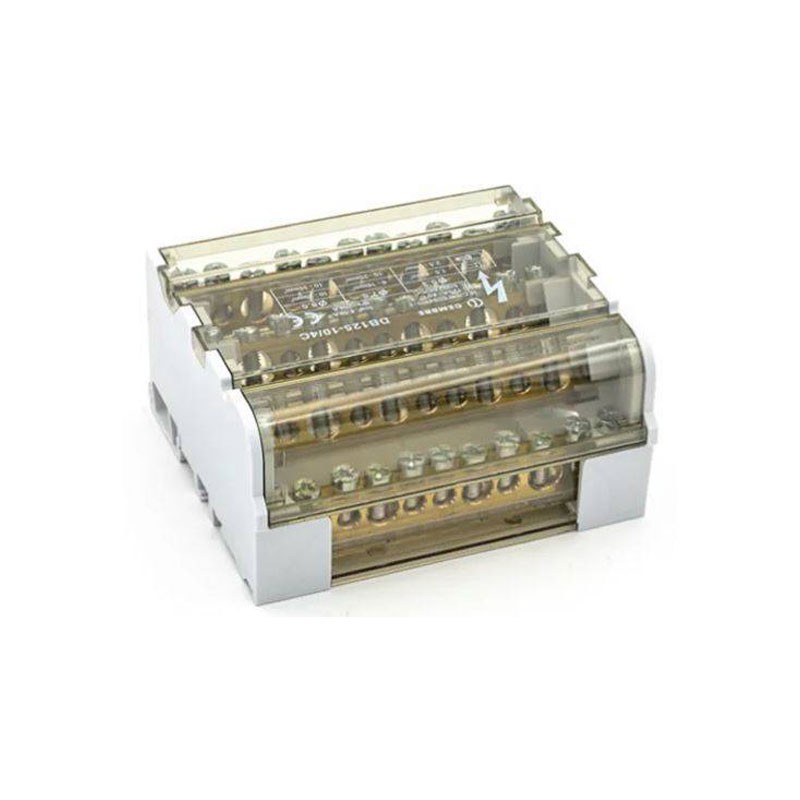

Cembre Dblock 124A 11-way tetrapolar distributor DB125-10/4C
CEM DB125-10/4C
8051316026224
Cembre DB125-10/4C 124A tetrapolar distributor: 11 outlets, direct clamping and easy connection for tidy and safe electrical panels.
-
Rated current: 125 A
-
Number of outputs: 11
-
Clamping technology: direct with captive screws
-
Input: 2x(10÷35 mm² R); 2x(10÷25 mm² F)
-
Outputs: 7x(2.5÷6 mm² R; 1.5÷6 mm² F) - 2x(10÷25 mm² R; 6÷16 mm² F)
-
Clamps: brass with tapered hole for easy introduction
-
Screws: pre-loosened galvanized for quick installation
-
Recommended use: electrical panels, distribution, automation.
€19.44
Items Available: 25
: 3
Cembre tetrapolar distributor for tidy and professional wiring for electrical panels
The Cembre Dblock DB125-10/4C tetrapolar distributor is the ideal solution for making orderly, efficient and safe electrical connections within control, distribution and automation panels. With its ability to handle up to 124 A and 11 available outputs, it enables optimal power distribution over multiple lines.
Fast connection with direct clamping
Equipped with direct-tightening technology, the Dblock allows easy and secure connection of conductors, thanks to pre-alloyed galvanized steel captive screws that reduce installation time. The conical shapes of the entry holes facilitate the insertion of cables, improving the accuracy and tightness of the connection.
High-performance materials
Internal brass terminals ensure a stable and durable electrical connection with high conductivity and resistance to oxidation. The entire system is designed to withstand mechanical and environmental stresses typical of LV switchgear installations.
Installation versatility
With dual input capacities for rigid (R) and flexible (F) conductors and a differentiated distribution of outputs, the DB125-10/4C is perfectly suited to different installation configurations, both in civil and industrial settings.
| Feature | Detail |
|---|---|
| Number and diameter of input holes | 2 × 8.5 mm |
| Number and diameter of output holes | 7 × 5.3 mm; 2 × 7.5 mm |
| Operating current | 125 A |
| Rated short-time withstand current | 4.5 kA |
| Assumed maximum peak current (IPK) | 20 kA |
| Rated impulse voltage (UIMP) | 500 V |
| Input connection capacity | 2 × (10÷35 mm² R; 10÷25 mm² F) |
| Output connection capacity | 7 × (2.5÷6 mm² R; 1.5÷6 mm² F); 2 × (10÷25 mm² R; 6÷16 mm² F) |
| Length | 100 mm |
| Cover color | Transparent |
| Geometry of the clamping element | Slotted screw |
| Presence of facilitated entry | Yes |
| Captive screw | Yes |
| Clamping type | Direct |
| DIN rail mount | Yes |
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 500V
- Poles: 4P
- Amps: 125A
