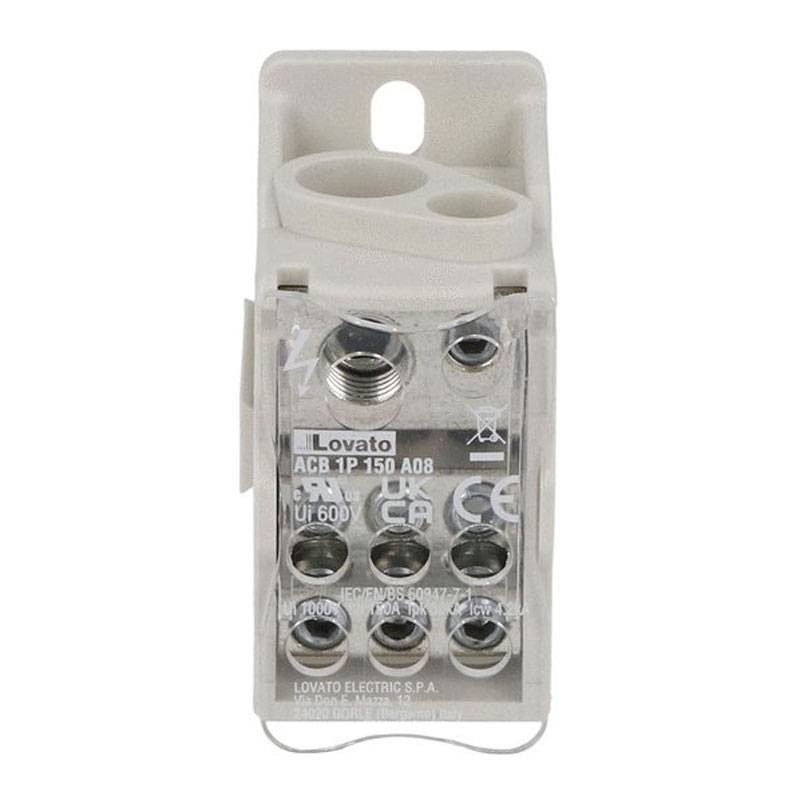

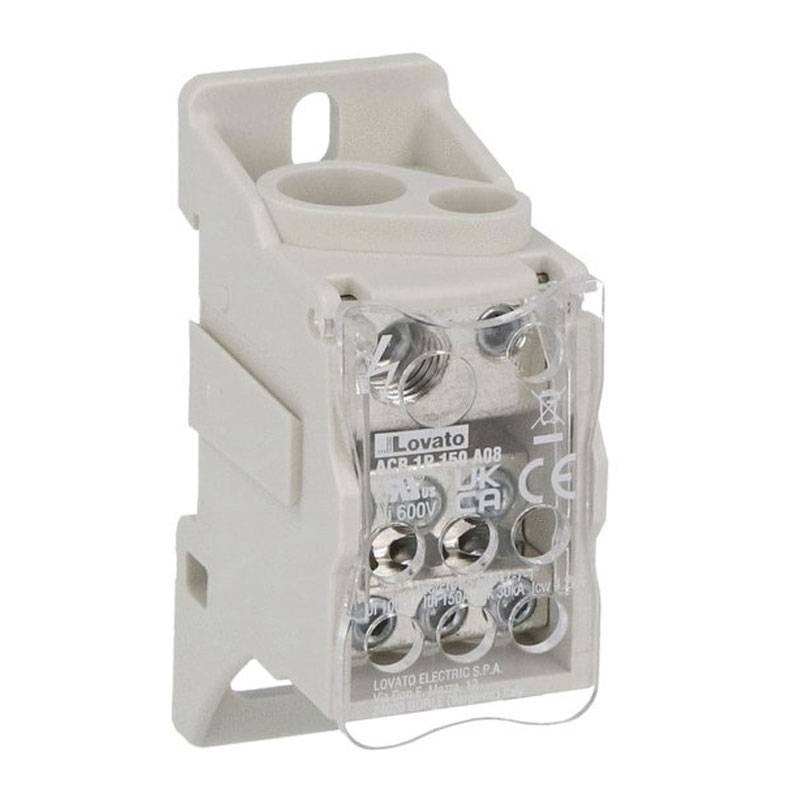

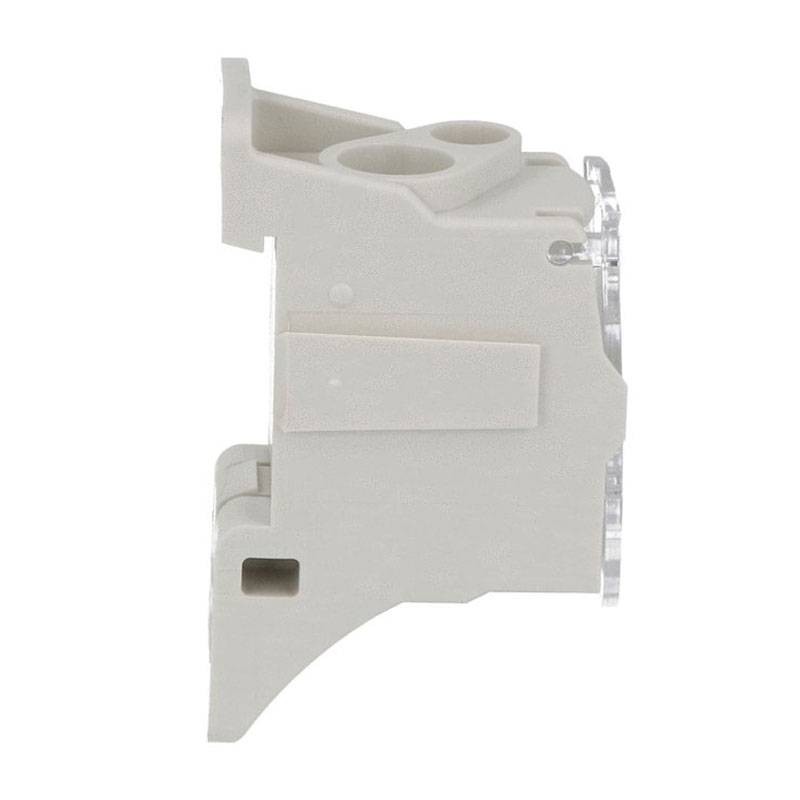

Lovato Power distribution block 125A 1P 8 terminals ACB1P150A08

Lovato
Lovato
LOV ACB1P150A08 8013975320280

Lovato single-pole Power distribution block:



  • Rated current In 125A
  • 1 pole
  • 8 terminals
  • 2 Modules
  • Rated insulation voltage Ui V 1000
  • Conventional free air thermal current Ith IEC A 150
  • Rated peak current Ipk kA 30
  • Rated short-time withstand current Icw 1s kA 4.2
  • Short-circuit current (UL) kA 10.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato Power distribution block 125A 1P 8 terminals ACB1P150A08
€12.40
€12.40

€12.40
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€12.40

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Connections:

  • Terminal hole diameter_Option 1 mm 1x10mm
  • Conductor cross section_Option 1 mm2 1035 AWG 8...1/0
  • Max tightening torque_Option 1 Nm 6.4 Ibin 57
  • Terminal hole diameter_Option 2 mm 1x7.5mm
  • Conductor cross section_Option 2 mm2 6..16 AWG 14...2
  • Max tightening torque_Option 2 Nm 3.5 Ibin 31
  • Terminal hole diameter_Option 3 mm 6x6mm
  • Conductor cross section_Option 3 mm2 2.516 AWG 14...4
  • Max tightening torque_Option 3 Nm 3.5 Ibin 31




Mechanical characteristics:

  • Mounting position Normal Vertical plane

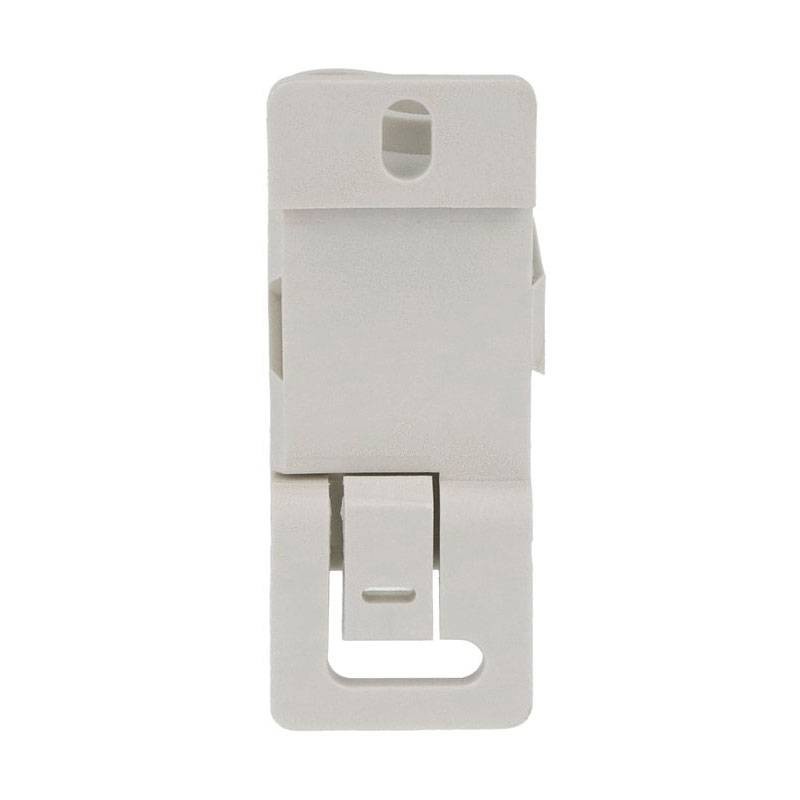

  • Fastening Screw / DIN rail 35mm
  • Metric Allen wrenches mm 3-6
  • Product weight g 154
  • IP20 manufacturing grade on the front

There are no reviews

Data sheet

Type:
Distributors
Voltage:
1000V
Poles:
1P
Amps:
125A
