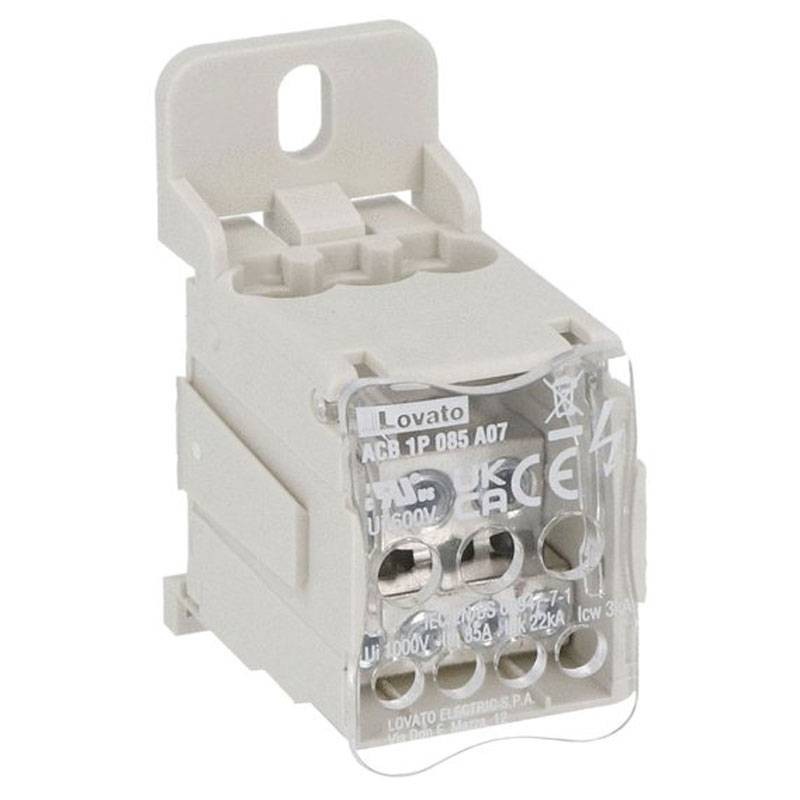

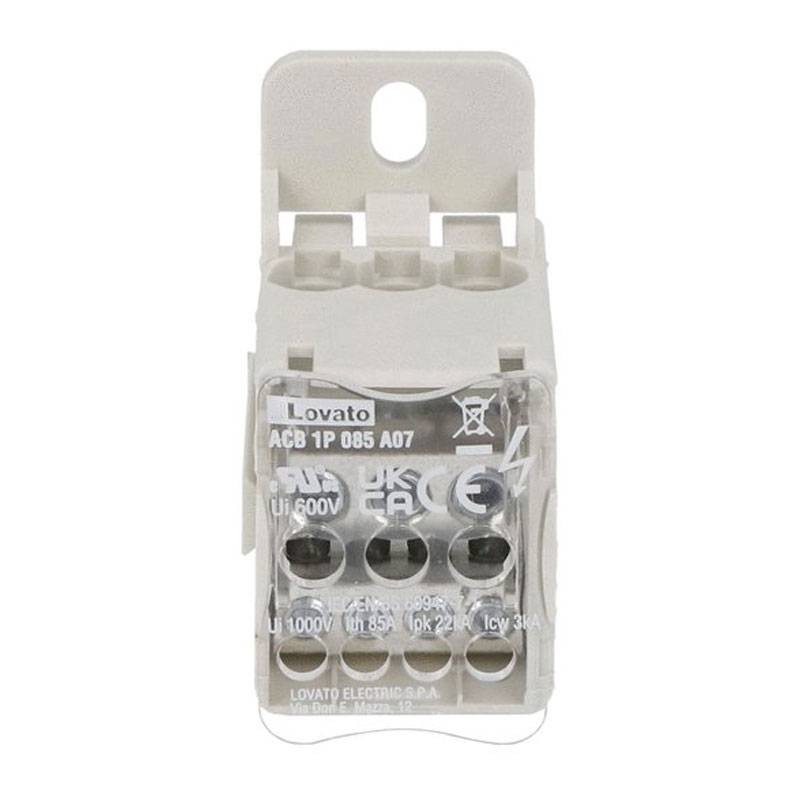

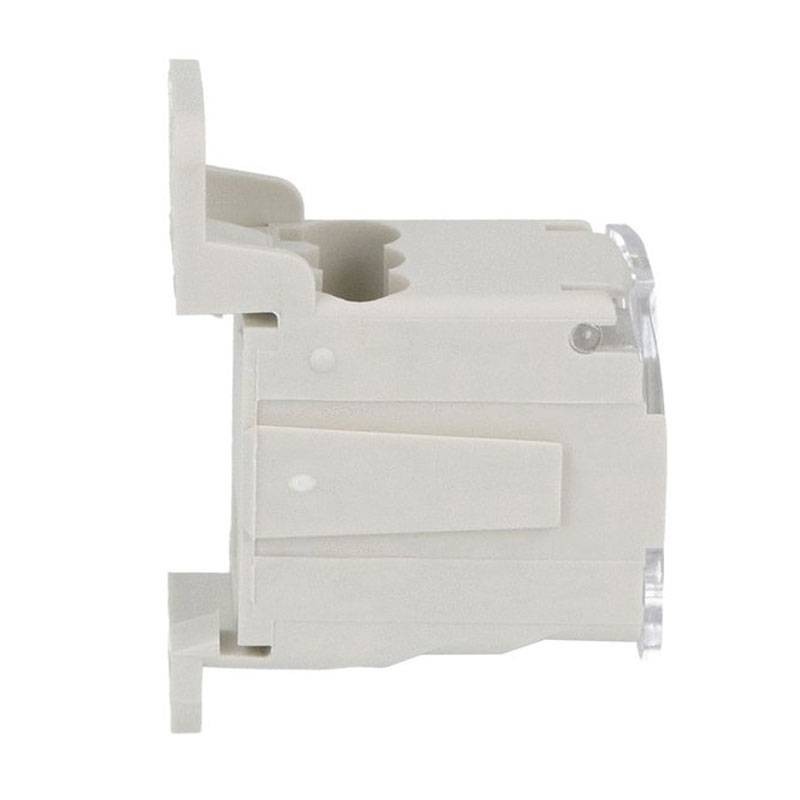

Lovato Power distribution block 80A 1P 7 terminals ACB1P085A07
LOV ACB1P085A07
8013975320273
Lovato single-pole Power distribution block:
- 80A rated current
- 1 pole
- 7 terminals
- Rated insulation voltage Ui V 1000
- Conventional free air thermal current Ith IEC A 85
- Rated peak current Ipk kA 22
- Rated short-time withstand current Icw 1s kA 3
- Short-circuit current (UL) kA 10
€7.15
Items Available: 4
: 2
Connections:
- Terminal hole diameter_Option 1 mm 1x6mm
- Conductor cross section_Option 1 mm2 616 AWG 16...4
- Max tightening torque_Option 1 Nm 3.5 Ibin 31
- Terminal hole diameter_Option 2 mm 4x4.4mm
- Conductor cross section_Option 2 mm2 2.56 AWG 16...8
- Max tightening torque_Option 2 Nm 1.2 Ibin 11
- Terminal hole diameter_Option 3 mm 2x6mm
- Conductor cross section_Option 3 mm2 2.516 AWG 16...4
- Tightening torque Max_Option 3 Nm 3.5 Ibin 31

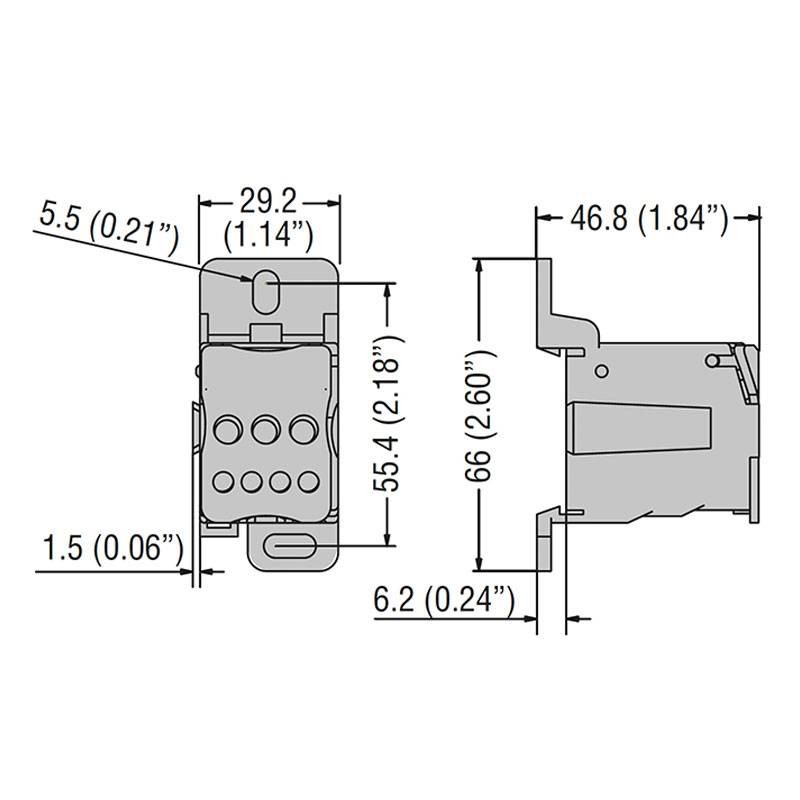

Mechanical characteristics:
- Mounting position Normal Vertical plane

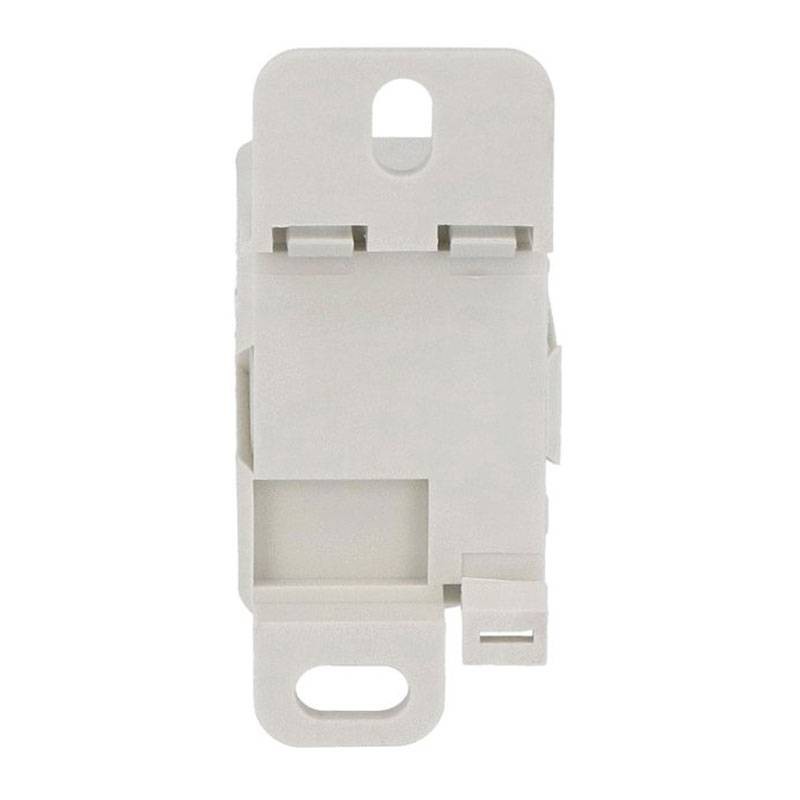

- Fastening Screw / DIN rail 35mm
- Metric Allen keys mm 2.5-3
- Product weight g 72
- IP20 degree of protection on the front
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 1000V
- Poles: 1P
- Amps: 80A
