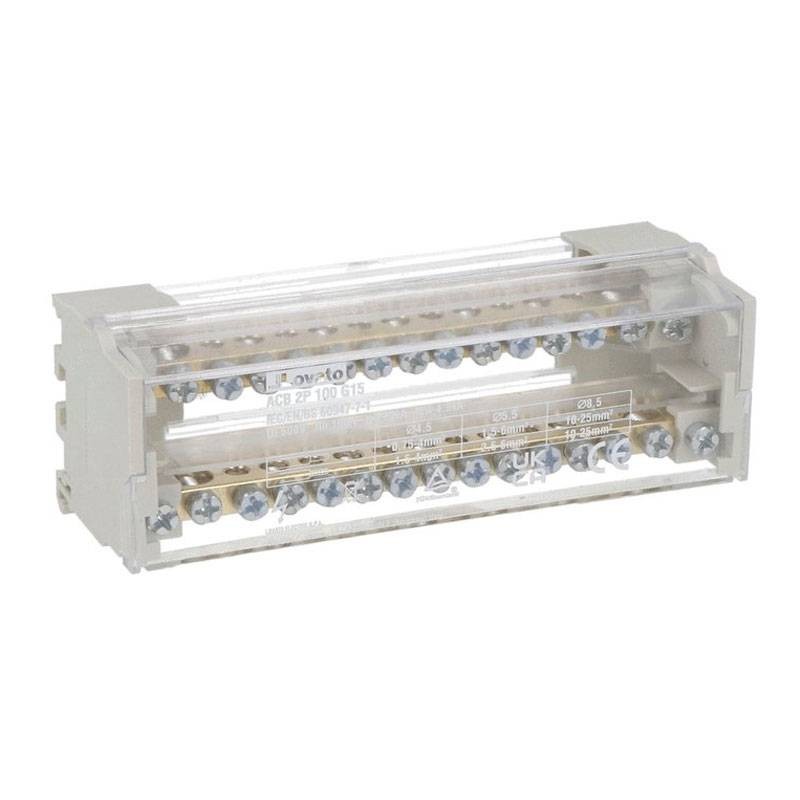

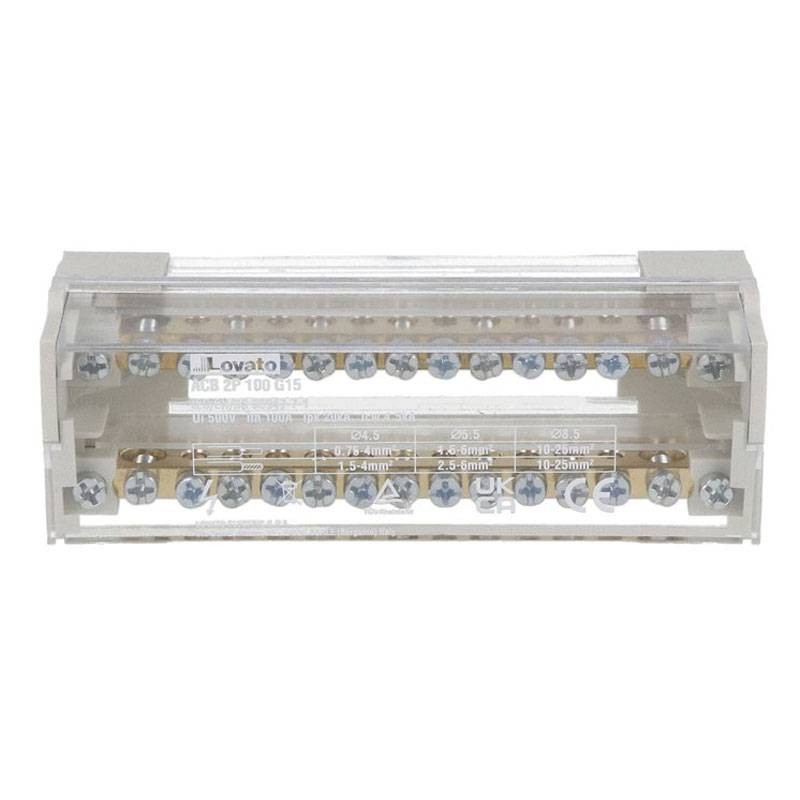

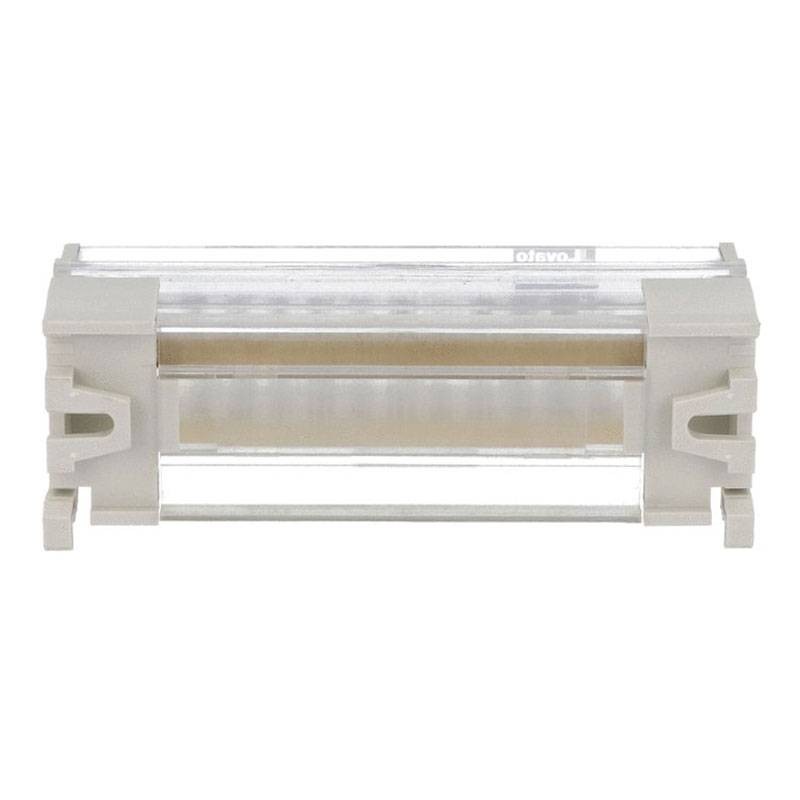

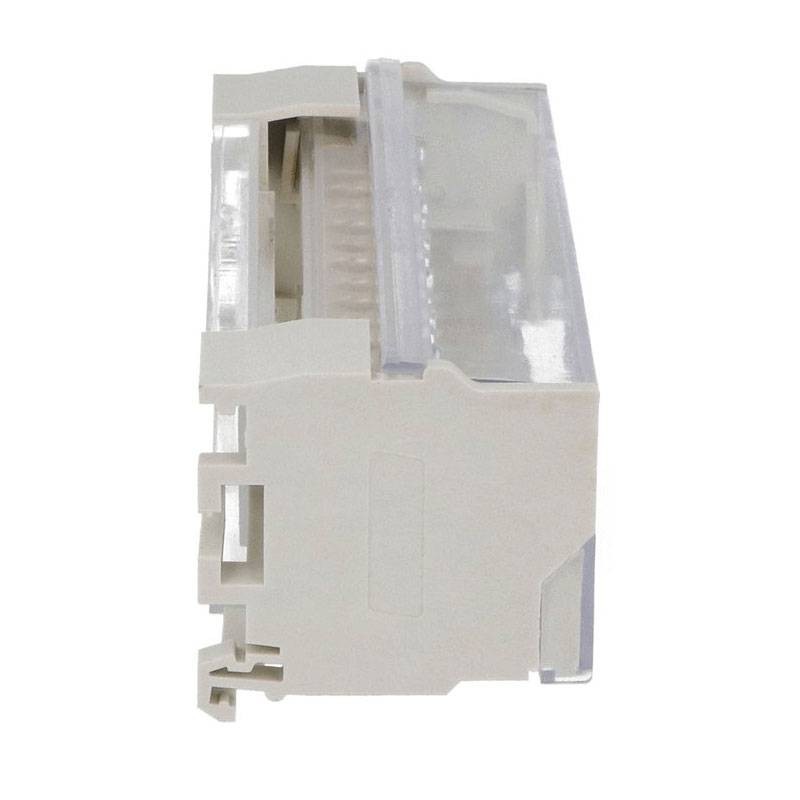

Lovato 125A 2P 15 terminal Power distribution block ACB2P125G15

Lovato
Lovato
LOV ACB2P125G15 8013975322413

Lovato bipolar Power distribution block:



  • Rated current In 125A
  • 2 Poles
  • 15 terminals
  • Rated insulation voltage Ui V 500
  • Conventional free air thermal current Ith IEC A 125
  • Rated peak current Ipk kA 20
  • Rated short-time withstand current Icw 1s kA 4.5.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato 125A 2P 15 terminal Power distribution block ACB2P125G15
€12.73
€12.73

€12.73
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€12.73

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Connections:

  • Terminal hole diameter_Option 1 mm 2x8.8mm
  • Conductor cross section_Option 1 mm2 1035
  • Max tightening torque_Option 1 Nm 3 Ibin 27
  • Terminal hole diameter_Option 2 mm 2x7.5mm
  • Conductor section_Option 2 mm2 1025
  • Tightening torque Max_Option 2 Nm 3 Ibin 27
  • Terminal hole diameter_Option 3 mm 11x5.5mm
  • Conductor cross section_Option 3 mm2 2.56
  • Tightening torque Max_Option 3 Nm 3 Ibin 27



Mechanical characteristics:

  • Mounting position Normal Vertical plane
  • Fastening Screw / DIN rail 35mm
  • Phillips 2
  • Product weight g 230
  • IP20 degree of protection on front panel

There are no reviews

Data sheet

Type:
Distributors
Voltage:
500V
Poles:
2P
Amps:
125A
