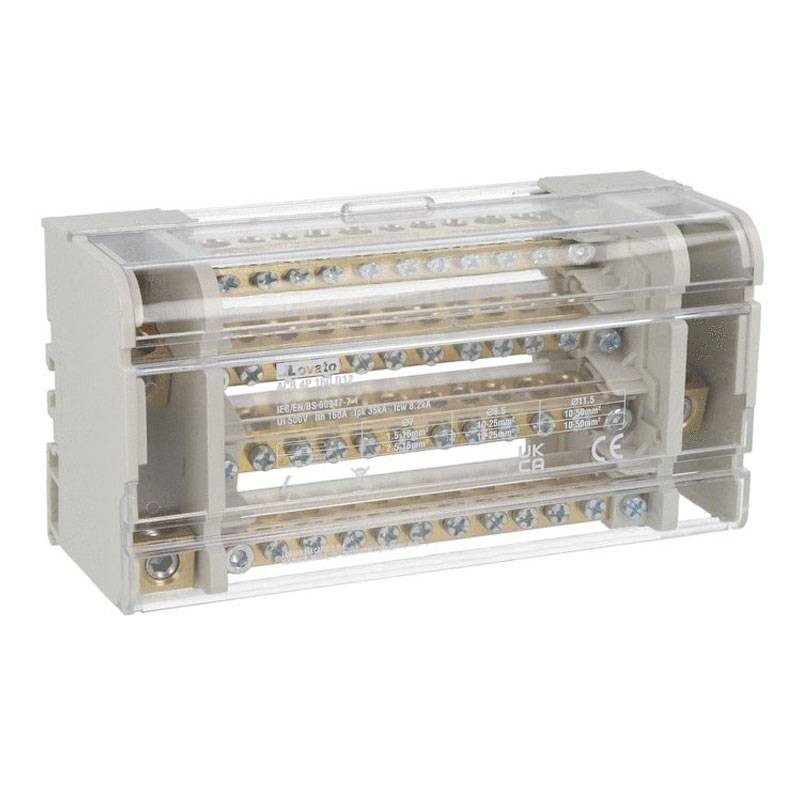

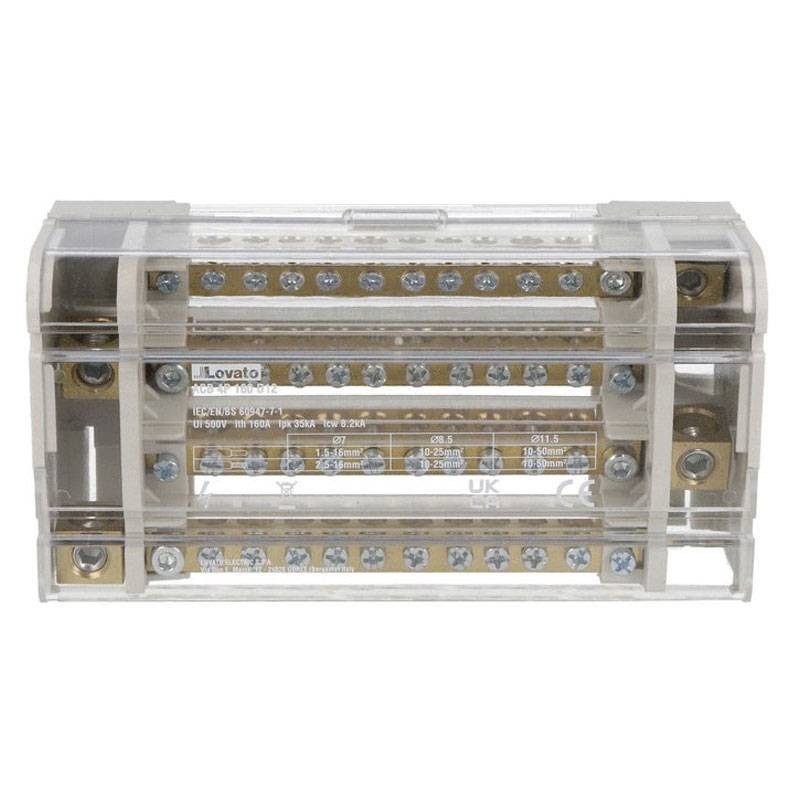

Lovato 160A 4P 12 terminal Power distribution block ACB4P160D12

Lovato
Lovato
LOV ACB4P160D12 8013975320365

Lovato four-pole Power distribution block:



  • Rated current In 160A
  • 4 Poles
  • 12 terminals
  • Rated insulation voltage Ui V 500
  • Conventional free air thermal current Ith IEC A 160
  • Rated peak current Ipk kA 38
  • Rated short-time withstand current Icw 1s kA 8.2.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato 160A 4P 12 terminal Power distribution block ACB4P160D12
€33.31
€33.31

€33.31
Tax included
Calculate shipping cost
Items Available: 9
Further availability of the manufacturer
€33.31

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Connections:

  • Terminal hole diameter_Option 1 mm 1x11.5mm
  • Conductor cross section_Option 1 mm2 1050
  • Max tightening torque_Option 1 Nm 10 Ibin 89
  • Terminal hole diameter_Option 2 mm 3x8.5mm
  • Conductor section_Option 2 mm2 1025
  • Tightening torque Max_Option 2 Nm 3 Ibin 27
  • Terminal hole diameter_Option 3 mm 8x7mm
  • Conductor section_Option 3 mm2 2,516
  • Tightening torque Max_Option 3 Nm 3 Ibin 27



Mechanical characteristics:

  • Mounting position Normal Vertical plane
  • Fastening Screw / DIN rail 35mm
  • Phillips 2
  • Product weight g 615
  • IP20 degree of protection on the front.

There are no reviews

Data sheet

Type:
Distributors
Voltage:
500V
Poles:
4P
Amps:
160A
