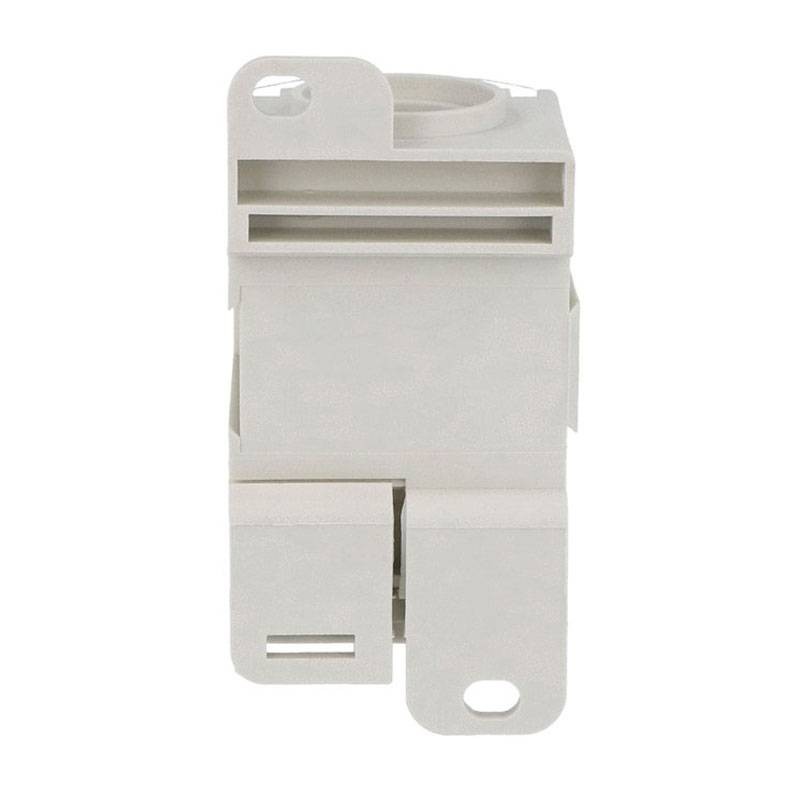

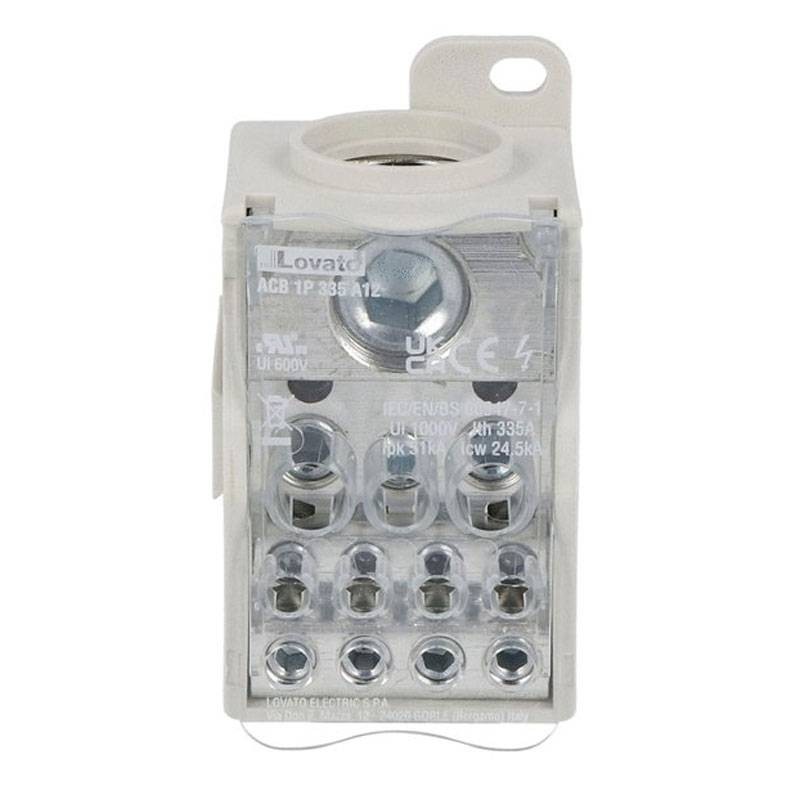

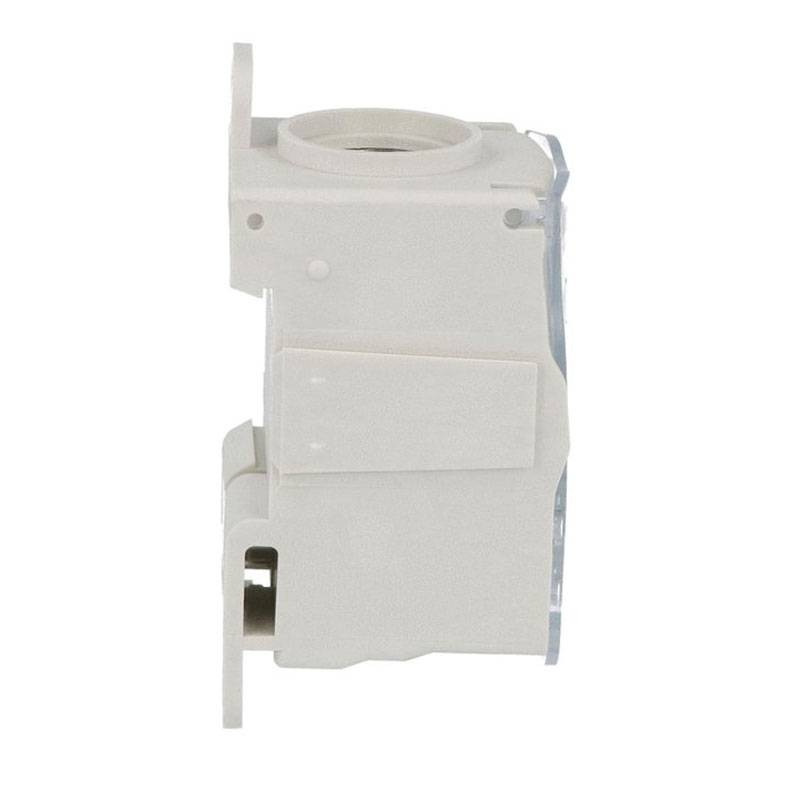

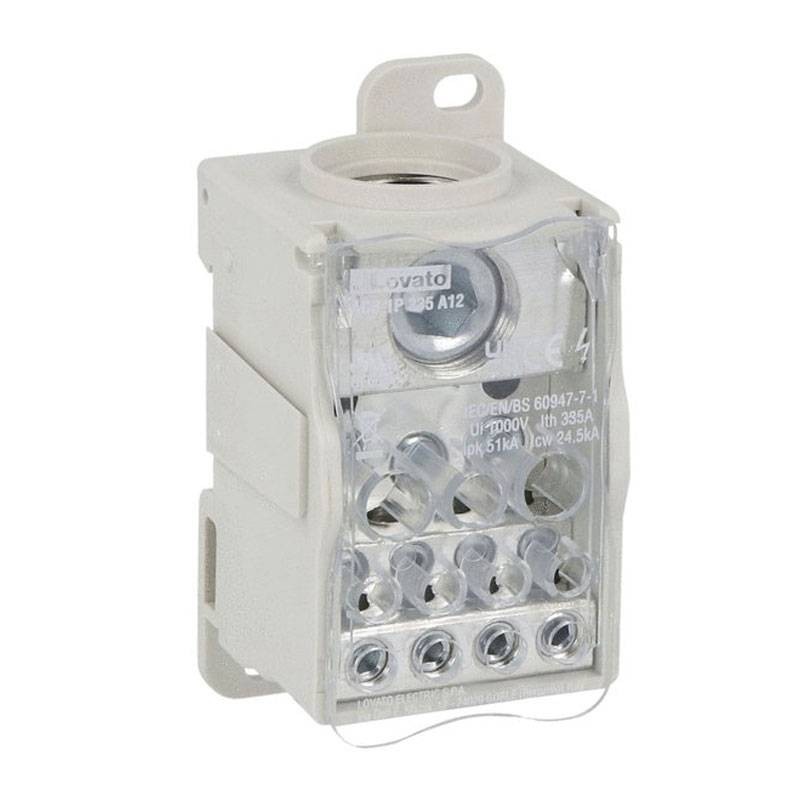

Lovato Power distribution block 400A 1P 12 terminals ACB1P335A12
LOV ACB1P335A12
8013975320310
Lovato single-pole Power distribution block:
- Rated current In 400A
- 1 pole
- 12 terminals
- Rated insulation voltage Ui V 1000
- Conventional free air thermal current Ith IEC A 335
- Rated peak current Ipk kA 51
- Rated short-time withstand current Icw 1s kA 24.5
- Short-circuit current (UL) kA 10.
€35.74
Items Available: 17
: 1
Connections:
- Terminal hole diameter_Option 1 mm 1x19.8mm
- Conductor cross section_Option 1 mm2 95185 AWG 3/0...400 Kcmil
- Max tightening torque_Option 1 Nm 25 Ibin 221
- Terminal hole diameter_Option 2 mm 2x9.5mm
- Conductor cross section_Option 2 mm2 635 AWG 14...1
- Max tightening torque_Option 2 Nm 4.4 Ibin 39
- Terminal hole diameter_Option 3 mm 5x7.5mm
- Conductor cross section_Option 3 mm2 2.516 AWG 14...4
- Max tightening torque_Option 3 Nm 2.7 Ibin 24
- Terminal hole diameter_Option 4 mm 4x6mm
- Conductor cross section_Option 4 mm2 2.5...10 AWG 14...6
- Max tightening torque_Option 4 Nm 2.7 Ibin 24
Mechanical characteristics:
- Mounting position Normal Vertical plane
- Fastening Screw / DIN rail 35mm
- Metric Allen keys mm 3-4-5-10
- Product weight g 405
- Degree of protection Terminals IP20 on the front
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 1000V
- Poles: 1P
- Amps: 400A
